Description

Price

1

CHAIN, CAMSHAFT DRIVE (98LE)

12760-44A00

$98.47

2

GUIDE, CAM CHAIN

12771-05200

$49.30

3

TENSIONER, CAM CHAIN This part replaces 12811-05220.

12811-05221

$42.75

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$4.92

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

6

ADJUSTER ASSY,T | MODEL M/N/P/R This part replaces 12830-32451.

12830-12FB0

$62.57

6

ADJUSTER ASSY,T | MODEL S/T; Includes Item(s) 7 - 11 This part replaces 12830-32452.

12830-12FB0

$62.57

7

SPRING

09440-11018

$4.02

8

SCREW

12838-45001

$9.50

9

WASHER | MODEL M/N/P

08322-01087

$1.86

9

WASHER | MODEL R/S/T This part replaces 08322-01083.

08322-0108A

$2.18

10

NUT | MODEL M/N/P

08310-00087

$1.83

10

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.86

10

NUT | MODEL S/T This part replaces 08316-10083.

08316-1008B

$2.65

11

.O RING (D:1.9,ID:5.7)

09280-06005

$1.45

12

.GASKET, TENSIONER ADJUSTER

12837-32410

$2.75

13

BOLT | MODEL M/N/P

01500-06207

$1.99

13

BOLT, GEAR SHIFT LINK | MODEL R/S/T This part replaces 01500-06203.

01500-0620A

$1.77

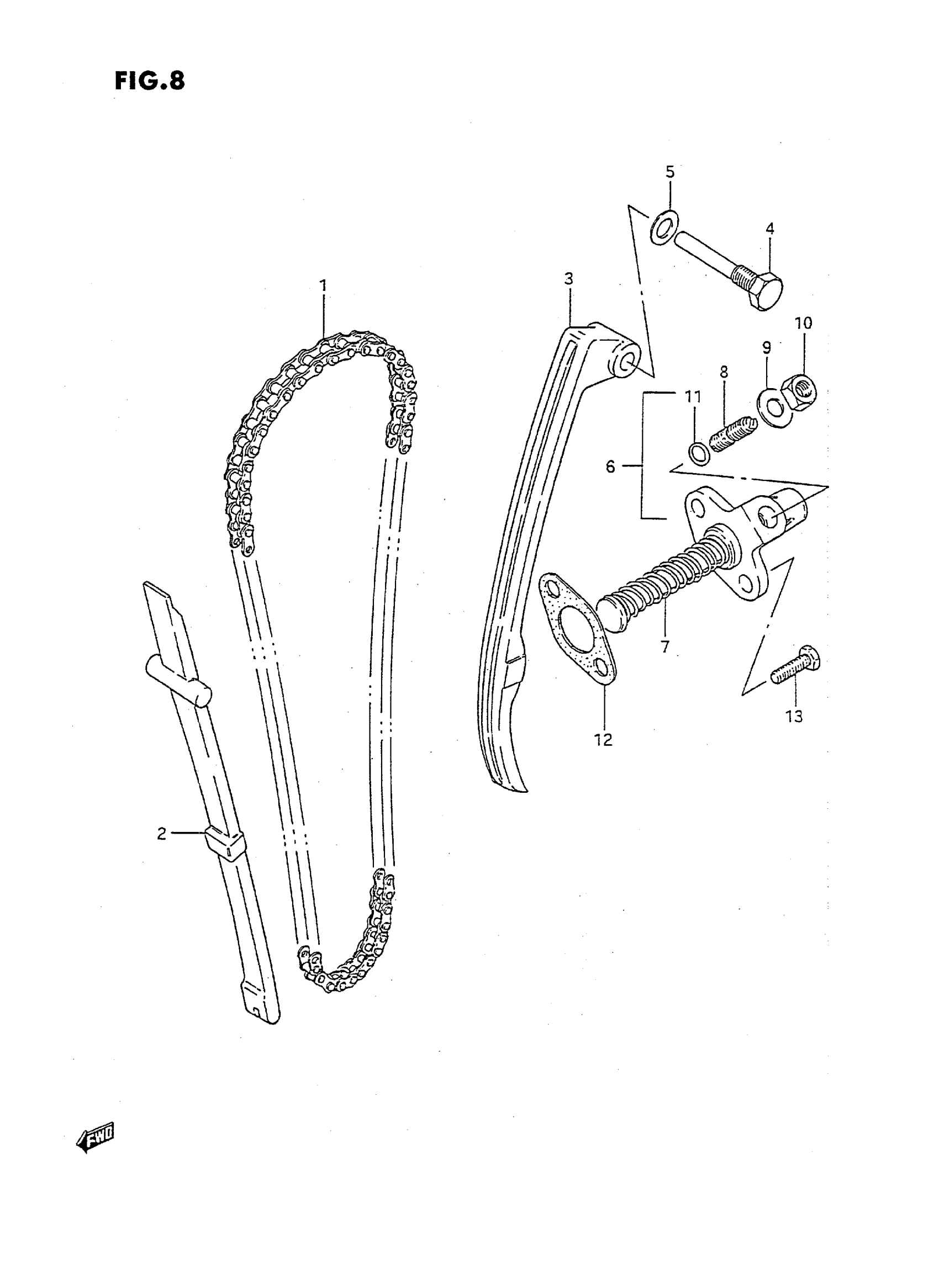

Suzuki LT-F160T (1996) CAM CHAIN Diagram
