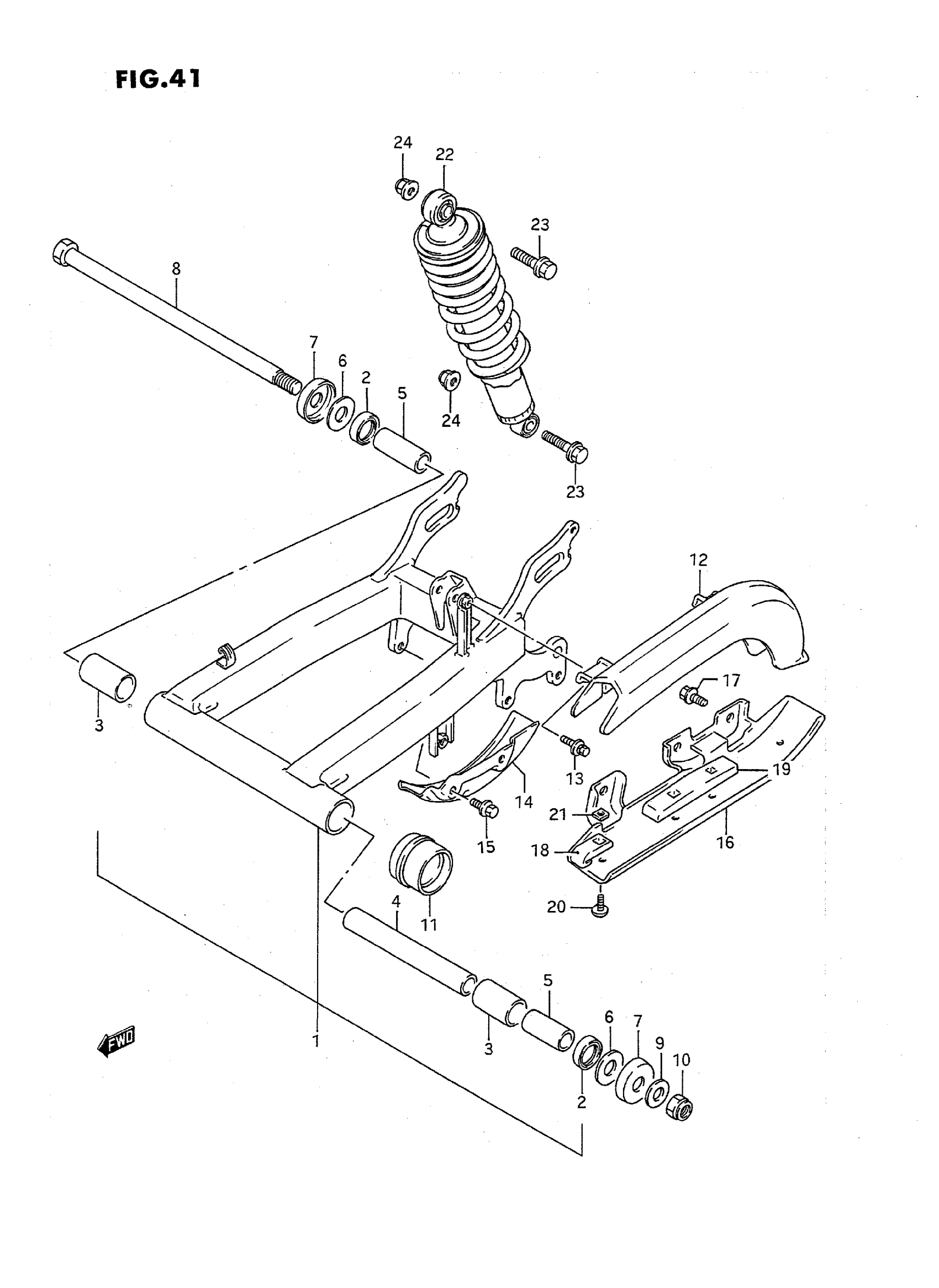

Suzuki LT-F160T (1996) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGINGARM ASSY, REAR | Includes Item(s) 2 - 3

61000-02C00-13L

Unavailable

2

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

3

BUSH

61261-41B00

$20.76

4

SPACER, PIVOT CENTER

61282-02C00

$26.23

5

SPACER, PIVOT

61251-41B00

$22.22

6

WASHER, THRUST

08211-15341

$2.85

7

COVER This part replaces 61262-22A00.

61262-22A01

$6.05

8

SHAFT, PIVOT

61211-02C00

$63.97

9

WASHER

09160-14009

$2.82

10

NUT | MODEL M/N/P/R This part replaces 09159-14013.

09159-14019

$11.61

10

NUT | MODEL S/T

09159-14019

$11.61

11

BUFFER, TOUCH DEFENSE | MODEL M/N/P/R This part replaces 61273-22AA0.

61273-22A00

$10.48

11

BUFFER, TOUCH DEFENSE | MODEL S/T

61273-22A00

$10.48

12

CASE, CHAIN

61310-02C00

$67.28

13

BOLT | MODEL M/N/P This part replaces 01177-06165.

01580-0616A

$2.42

13

BOLT | MODEL R/S/T This part replaces 01580-06163.

01580-0616A

$2.42

14

GUARD, REAR BRAKE

61380-02C00

Unavailable

15

BOLT | MODEL M/N/P

01550-08127

$2.85

15

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

$2.32

16

GUARD, SPROCKET

61390-02C00

Unavailable

17

BOLT | MODEL M/N/P

01550-08127

$2.85

17

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

$2.32

18

BUFFER, SPROCKET GUARD

61396-19A01

$8.98

19

BUFFER, SPROCKET GUARD

61397-02C00

$19.15

20

SCREW | MODEL M/N/P This part replaces 02142-05104.

02142-0510B

$1.78

20

SCREW | MODEL R/S/T This part replaces 02142-05103.

02142-0510B

$1.78

21

NUT This part replaces 08318-11056.

08318-1105A

$1.50

22

ABSORBER ASSY, REAR SHOCK | MODEL M

62100-02C00-25G

Unavailable

22

ABSORBER ASSY, REAR SHOCK | MODEL N/P/R/S/T

62100-02C00-019

Unavailable

23

BOLT

61181-02C00

$6.88

24

NUT This part replaces 08319-31106.

08319-31107

$2.73
