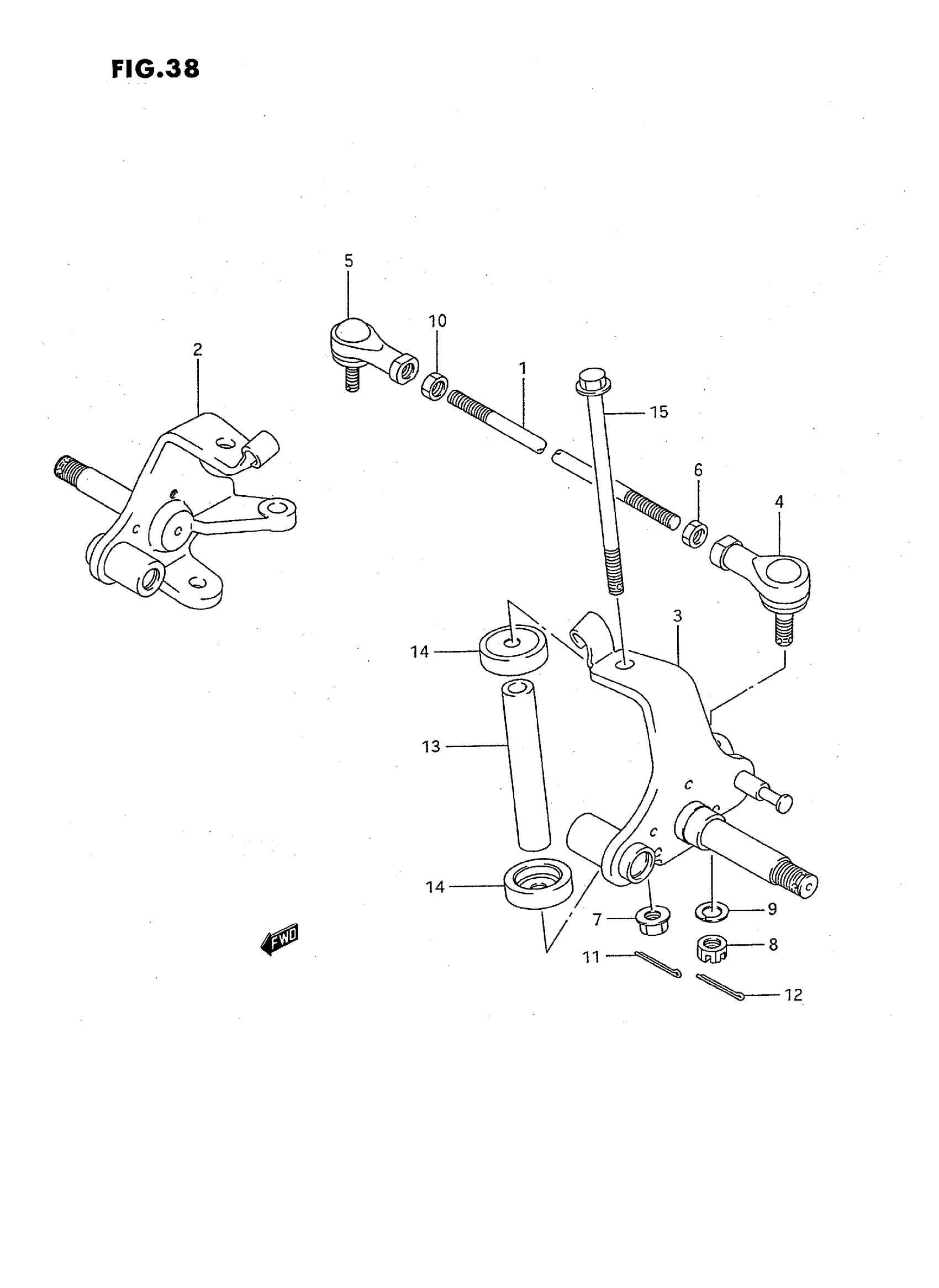

Suzuki LT-F160T (1996) KNUCKLE ARM Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-02C00

$46.60

2

KNUCKLE ARM, RH

51230-02C01

$265.60

3

KNUCKLE ARM, LH

51240-02C01

$260.68

4

END,ROD,R This part replaces 51260-02C00.

51260-43G00

$94.35

5

ROD END, LH

51270-02C00

$69.35

6

NUT | MODEL M/N/P This part replaces 08310-22105.

09140-10043

$2.68

6

NUT, RH THREAD | MODEL R/S/T

09140-10043

$2.68

7

NUT This part replaces 08319-31105.

08319-3110A

$2.73

8

NUT | MODEL M/N/P This part replaces 08314-41108.

08314-4010B

$2.50

8

NUT | MODEL R/S/T This part replaces 08314-40103.

08314-4010B

$2.50

9

LOCK WASHER | MODEL M/N/P This part replaces 08321-21104.

08321-0110A

$1.84

9

LOCK WASHER | MODEL R/S/T

09162-10008

$3.04

10

NUT, TIE ROD, LH THREAD

09140-10027

$1.49

11

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

SPACER, RR SPNSN ARM UPPER This part replaces 51251-18901.

61554-31G00

$19.66

14

DUST SEAL

51255-18900

$4.48

15

BOLT, KNUCKLE ARM

09103-10202

$7.93
