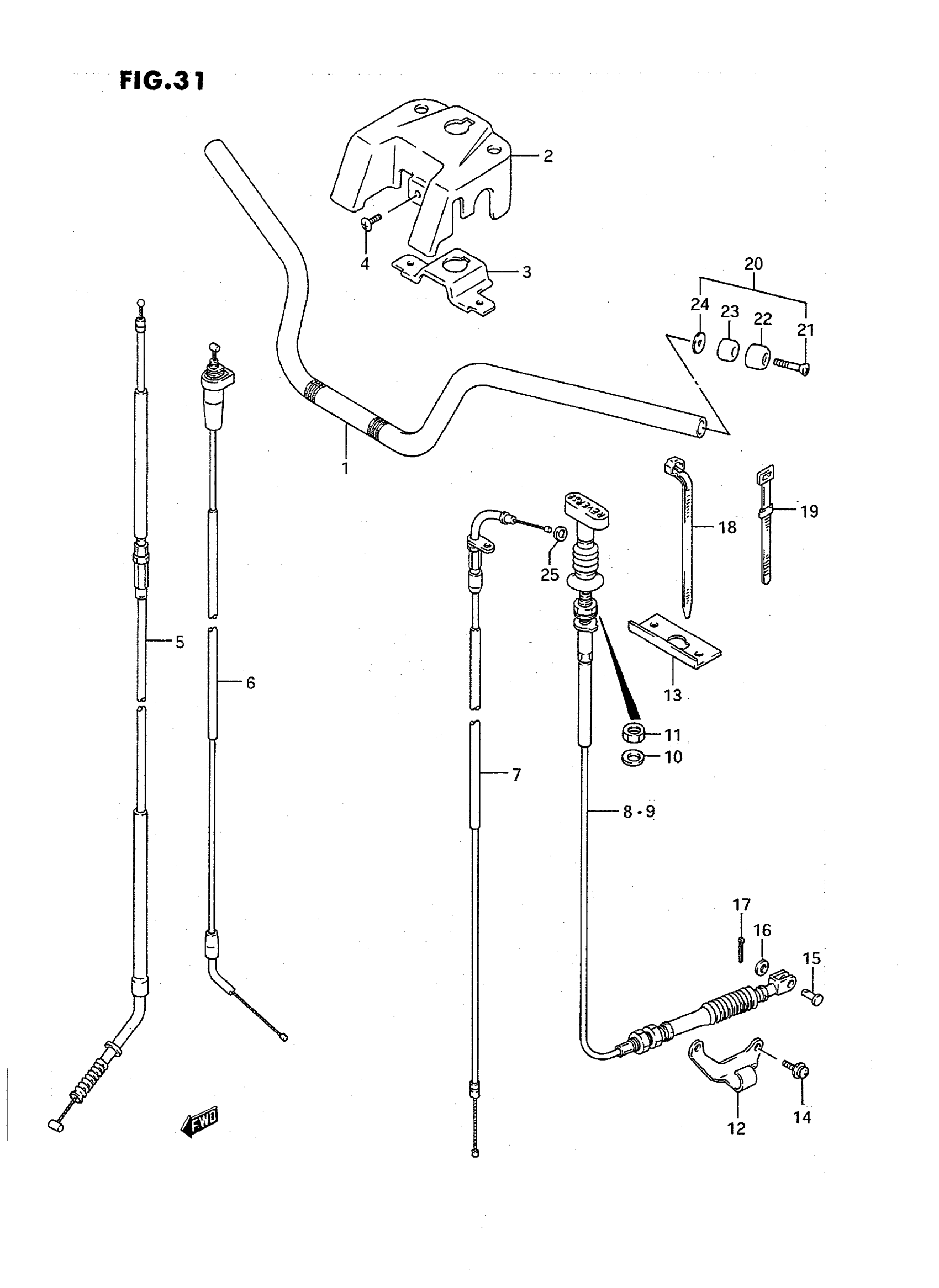

Suzuki LT-F160T (1996) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR (BLACK)

56110-02C01-291

Unavailable

2

COVER, STEERING HEAD (BLACK) | MODEL M This part replaces 56171-02C00-19F.

56171-02C00-291

$21.10

2

COVER, STEERING HEAD (BLACK) | MODEL N/P/R/S/T

56171-02C00-291

$21.10

3

BRACKET, COVER

56172-02C00

$13.05

4

STOPPER, CL RLSE CAM SHAFT | MODEL M/N/P This part replaces 02142-16105.

02142-0610A

$1.49

4

STOPPER, CL RLSE CAM SHAFT | MODEL R/S/T This part replaces 02142-06103.

02142-0610A

$1.49

5

CABLE ASSY, BRAKE

58100-02C01

$67.73

6

CABLE ASSY,THRO This part replaces 58300-02C00.

58300-02C02

$24.37

7

CABLE ASSY, STARTER

58400-02C01

$21.65

8

CABLE ASSY, REVERSE | MODEL M/NWITH 09160-1400108310-22146

58840-02C01

$115.03

9

CABLE, REVERSE | MODEL P->58840-02C01 This part replaces 58840-02C10.

58840-02C01

$115.03

9

CABLE, REVERSE | MODEL R/S/T

58840-02C01

$115.03

10

WASHER | MODEL P This part replaces 09160-14001.

09160-14055

$2.39

11

NUT | MODEL P This part replaces 08310-00143.

08310-0014A

$3.20

12

BRACKET, LOWER

58871-02C00

Unavailable

13

BRACKET, UPPER

58872-02C00

$8.77

14

SCREW | MODEL M/N/P

02112-76127

Unavailable

14

SCREW | MODEL R/S/T This part replaces 02112-76123.

02112-7612B

$2.85

15

PIN

09200-05001

$1.65

16

WASHER

09160-060B7

Unavailable

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

19

CLAMP

09407-12402

$3.04

20

BALANCER SET,HA | MODEL M/N/P This part replaces 56200-01810.

56200-02812

Unavailable

20

BALANCER SET,HA | MODEL R This part replaces 56200-02810.

56200-02812

Unavailable

20

BALANCER SET,HA | MODEL S/T; Includes Item(s) 21 - 24 This part replaces 56200-02811.

56200-02812

Unavailable

21

SCREW | FOR 56200-01810 This part replaces 02132-06405.

02122-0640A

$2.83

21

SCREW | FOR 56200-02810AND 56200-02811 This part replaces 02122-06403.

02122-0640A

$2.83

22

CAP

56274-33400

Unavailable

23

BALANCER

56271-33400

Unavailable

24

SPACER

56275-34401

$4.02

25

WASHER This part replaces 09161-05015.

09320-06503

$2.63
