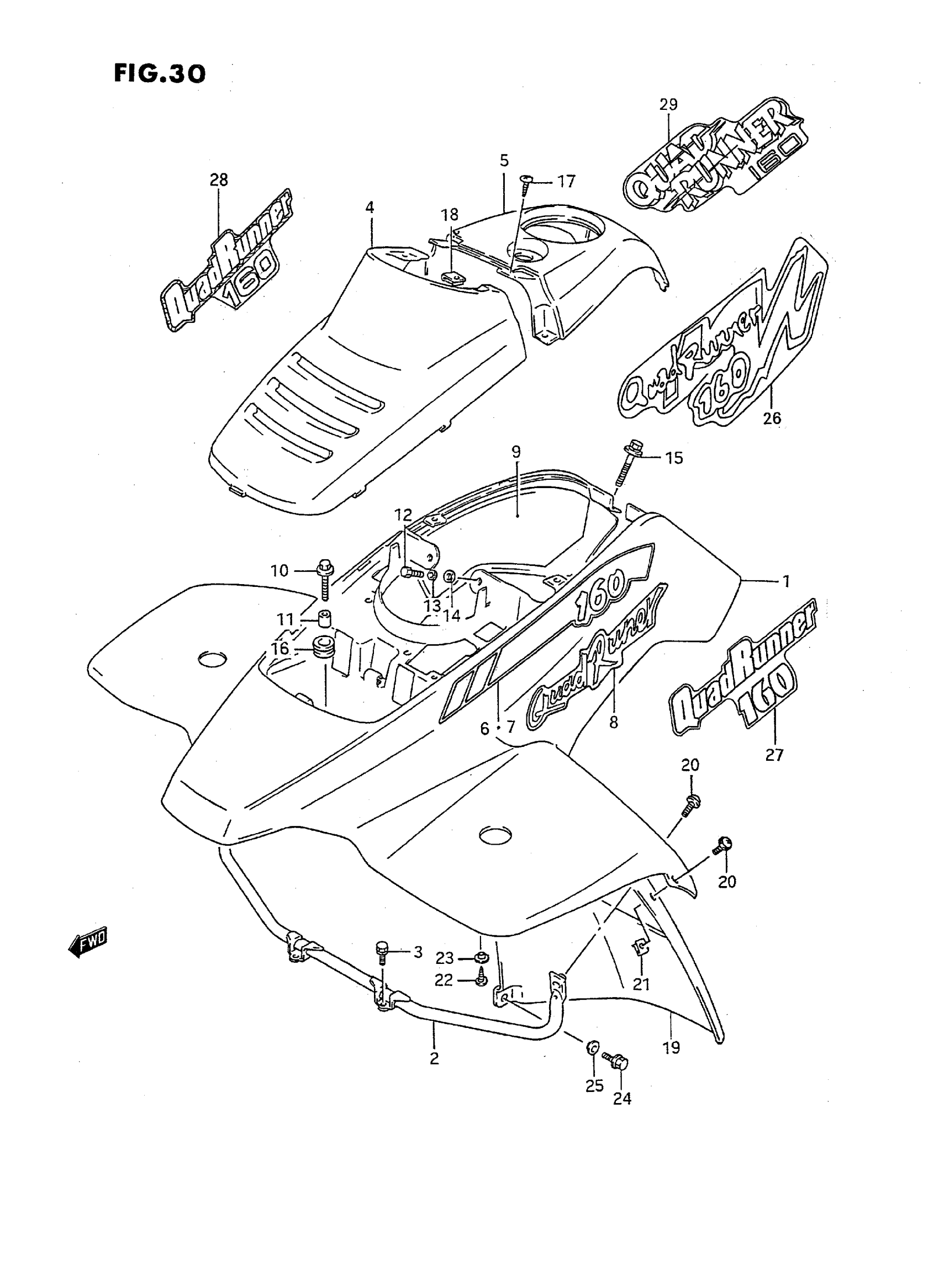

Suzuki LT-F160T (1996) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT CENTER (ORANGE) | MODEL M This part replaces 53111-02C10-25G.

53111-02C00-25G

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P/R/S This part replaces 53111-02C10-0VT.

53111-02C11-0VT

Unavailable

1

FENDER, FRONT CENTER (BLUE) | MODEL T This part replaces 53111-02C10-1LH.

53111-02C11-1LH

Unavailable

2

BRACE, FRONT FENDER

53210-02C00

Unavailable

3

BOLT | MODEL M/N/P This part replaces 01944-06125.

01570-0612A

$2.63

3

BOLT | MODEL R/S/T This part replaces 01570-06123.

01570-0612A

$2.63

4

FENDER, CENTER FRONT (BLUE) | MODEL M

53118-02C00-19F

Unavailable

4

FENDER, CENTER FRONT (BLACK) | MODEL N/P/R/S

53118-02C00-291

$102.67

4

FENDER, CENTER FRONT | MODEL T

53118-02C00-0LP

$84.66

5

FENDER, CENTER REAR (BLUE) | MODEL M

53119-02C00-19F

Unavailable

5

FENDER, CENTER REAR (BLACK) | MODEL N/P/R/S

53119-02C00-291

$83.42

5

FENDER, CENTER REAR (CHARCORL | MODEL T

53119-02C00-0LP

$76.87

6

TAPE, FENDER RH | MODEL M

68155-02C50-3MA

Unavailable

7

TAPE, FENDER LH | MODEL M

68156-02C50-3MA

Unavailable

8

EMBLEM, Q.R | MODEL M

68151-02C10-0UV

Unavailable

9

CUSHION, RH

53145-02C00

Unavailable

9

CUSHION, LH

53146-02C00

Unavailable

10

BOLT, FENDER FRONT

09116-06025

$2.44

11

SPACER This part replaces 09180-061C0.

09180-06120

$2.32

12

BOLT, FENDER CENTER | MODEL M

01500-06257

$1.97

12

BOLT, FENDER CENTER | MODEL N/P/R/S/T

09118-06020

$3.30

13

LOCK WASHER | MODEL M This part replaces 08321-01063.

08321-0106A

$1.84

14

WASHER | MODEL M This part replaces 09160-06031.

09160-06125

$1.91

15

BOLT, FENDER REAR | MODEL M/N/P

01580-06357

$4.00

15

BOLT | MODEL R/S/T This part replaces 01580-06353.

01580-0635B

$4.00

16

CUSHION This part replaces 09320-110B5.

09320-11008

$2.60

17

SCREW | MODEL M/N/P This part replaces 03241-15125.

03241-1512B

$2.39

17

SCREW | MODEL R/S/T This part replaces 03241-15123.

03241-1512B

$2.39

18

NUT

09148-05019

$1.86

19

MUD FLAP, RH

53311-02C00

$150.64

19

MUD FLAP, LH

53312-02C00

$150.64

20

SCREW

09136-06004

$2.15

21

NUT This part replaces 09146-06001.

09146-06003

$2.12

22

SCREW | MODEL M This part replaces 03242-05129.

03241-0512A

$1.49

22

SCREW, UPPER | MODEL N/P/R This part replaces 09136-05012.

09136-05024

Unavailable

22

SCREW, UPPER | MODEL S/T

09136-05024

Unavailable

23

WASHER (5.5X18X1) | MODEL M This part replaces 09160-05003.

09160-05045

$1.93

24

BOLT | MODEL M/N/P This part replaces 01944-06125.

01570-0612A

$2.63

24

BOLT | MODEL R/T This part replaces 01570-06123.

01570-0612A

$2.63

25

WASHER

09169-06026

$2.20

26

TAPE, FRONT FENDER RH | MODEL N

68155-02C80-1JP

Unavailable

26

TAPE, FRONT FENDER LH | MODEL N

68156-02C80-1JP

Unavailable

26

TAPE, FRONT FENDER RH | MODEL P

68155-02C80-1TE

Unavailable

26

TAPE, FRONT FENDER LH | MODEL P

68156-02C80-1TE

Unavailable

27

EMBLEM, FRONT FENDER | MODEL R

68151-02C20-C2J

Unavailable

28

EMBLEM, FRONT FENDER | MODEL S

68151-02C30-D0P

Unavailable

29

EMBLEM, FRONT FENDER | MODEL T

68151-02C40-Z42

Unavailable
