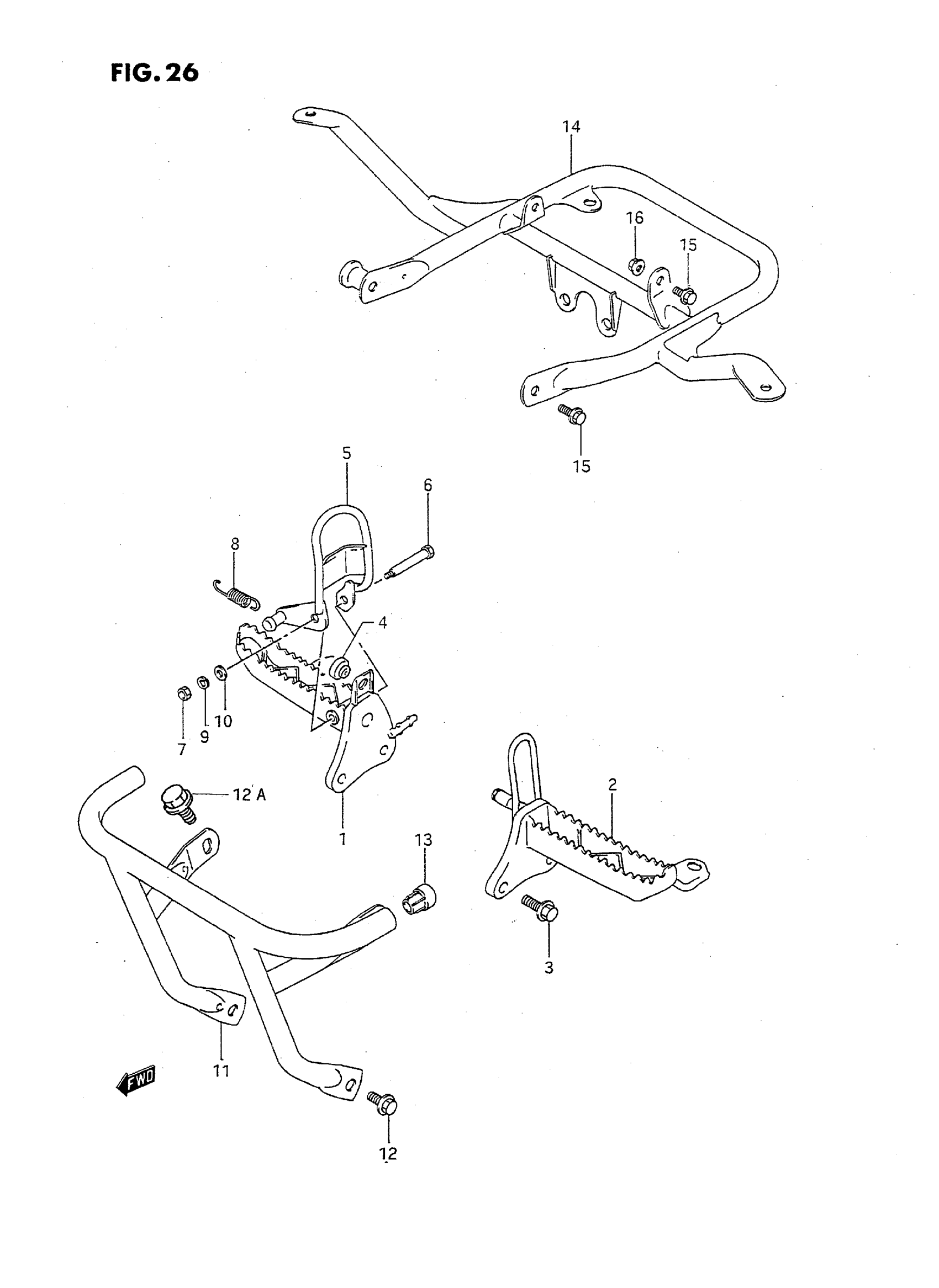

Suzuki LT-F160T (1996) FOOTREST Diagram

#

Description
Price

1

FOOTREST, FRONT RH (BLACK)

43510-02C10-019

Unavailable

2

FOOTREST, FRONT LH (BLACK)

43520-02C10-019

Unavailable

3

BOLT

09103-10201

Unavailable

4

CUSHION This part replaces 09321-100A7.

09321-10007

$2.71

5

GUARD, FOOTREST RH (BLACK)

43590-02C00-019

Unavailable

6

BOLT, GUARD

09111-06060

Unavailable

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

8

SPRING

09443-13017

$6.63

9

WASHER | MODEL M/N/P This part replaces 08322-11084.

08322-0108A

$1.92

9

WASHER | MODEL R/S/T This part replaces 08322-01083.

08322-0108A

$1.92

10

WASHER, REAR | MODEL M/N/P This part replaces 09160-06098.

09160-06502

$2.30

10

WASHER, REAR | MODEL R/S/T

09160-06502

$2.30

11

GRIP, FRONT (ORANGE) | MODEL M

43990-02C00-25G

Unavailable

11

GRIP, FRONT (BLACK) | MODEL N/P/R/S/T

43990-02C00-019

$180.18

12

BOLT (8X12) | MODEL M/N/P This part replaces 01517-08125.

01550-0812A

$2.32

12

BOLT (8X12) | MODEL R/S This part replaces 01550-08123.

01550-0812A

$2.32

12A

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

$2.32

13

CAP

43978-02C00

$4.33

14

GRIP, REAR (ORANGE) | MODEL M

43980-02C00-25G

Unavailable

14

GRIP, REAR (BLACK) | MODEL N/P/R/S/T

43980-02C00-019

Unavailable

15

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

$2.32

15

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

$2.32

16

NUT | MODEL M/N/P/R/S This part replaces 08316-16085.

08316-1008B

$2.66

16

NUT | MODEL T This part replaces 08316-10083.

08316-1008B

$2.66
