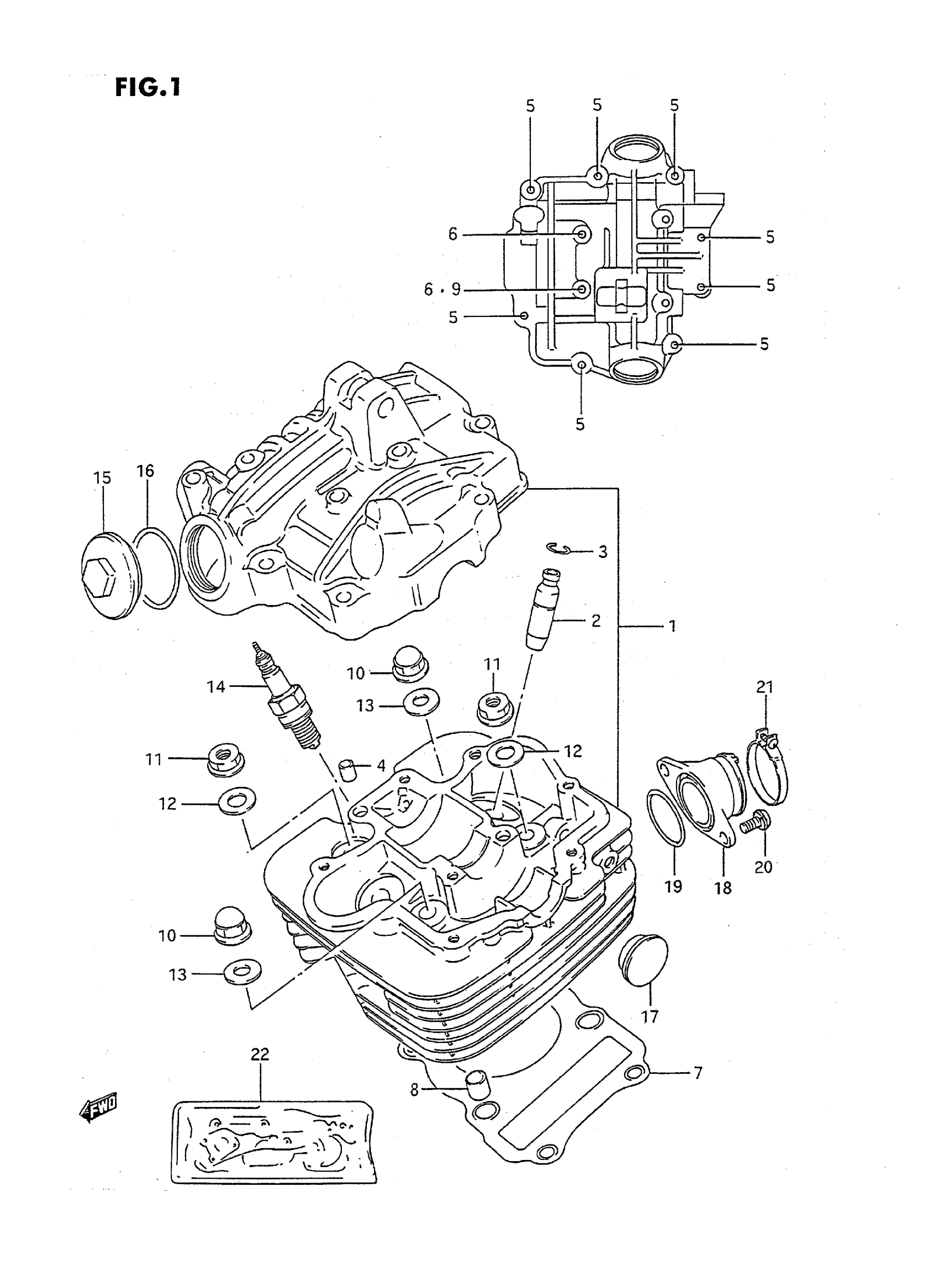

Suzuki LT-F160T (1996) CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY | Includes Item(s) 2 - 6

11100-02C00

Unavailable

2

GUIDE, VALVE (0S:0.3)

11115-05270

$32.10

3

.RING (10X85)

09381-10004

$1.50

4

PIN

09206-08001

$1.78

5

BOLT | MODEL M/N/P

01550-06357

$2.77

5

BOLT | MODEL R/S/T This part replaces 01550-06353.

01550-0635A

$2.32

6

BOLT | MODEL M/N/P

01550-06607

$4.17

6

BOLT | MODEL R/S/T This part replaces 01550-06603.

01550-0660A

$3.05

7

GASKET, CYLINDER HEAD

11141-02C01

$11.63

8

PIN

04211-11169

$1.78

9

WASHER

09168-06023

$2.35

10

NUT

09159-08074

$5.36

11

NUT | MODEL M/N/P

08316-10087

$2.26

11

NUT | MODEL R/S/T This part replaces 08316-10083.

08316-1008B

$2.66

12

WASHER

09160-08039

$2.03

13

GASKET | ~E.NO.124518 This part replaces 09168-08012.

09168-08013

$2.92

13

GASKET (8.5X17X2.3) | E.NO.124519~

09168-08021

$2.61

14

SPARK PLUG (NGK,DPR7EA-9) This part replaces 09482-00352.

09482-00354

$3.32

14

NO DESCRIPTION AVAILABLE This part replaces 09482-00353-111.

09482-00353

Unavailable

15

CAP INSPECTION | MODEL M/N/P/S/T This part replaces 11175-37111.

11175-18920

$12.20

15

CAP INSPECTION | MODEL R This part replaces 11175-18900.

11175-18920

$12.20

16

.O RING (D:3,ID:29.5)

09280-30001

$1.72

17

PLUG, HEAD

09241-22002

$5.24

18

PIPE, INTAKE This part replaces 13110-02C00.

13110-02C01

$32.10

19

O RING

09280-30008

$8.82

20

SCREW | MODEL M/N/P

02112-36167

$2.34

20

SCREW | MODEL R/S This part replaces 02112-36163.

02112-3616A

$1.97

20

SCREW | MODEL T This part replaces 02112-36203.

02112-3620A

$2.06

21

CLAMP | MODEL M/N/P/R This part replaces 09402-42207.

09402-42208

$6.88

21

CLAMP | MODEL S/T

09402-42208

$6.88

22

GASKET SET | MODEL M/N This part replaces 11401-02841.

11401-02846

Unavailable

22

GASKET SET | MODEL P/R This part replaces 11401-02843.

11401-02846

Unavailable

22

GASKET SET | MODEL S/T This part replaces 11401-02844.

11401-02846

Unavailable
