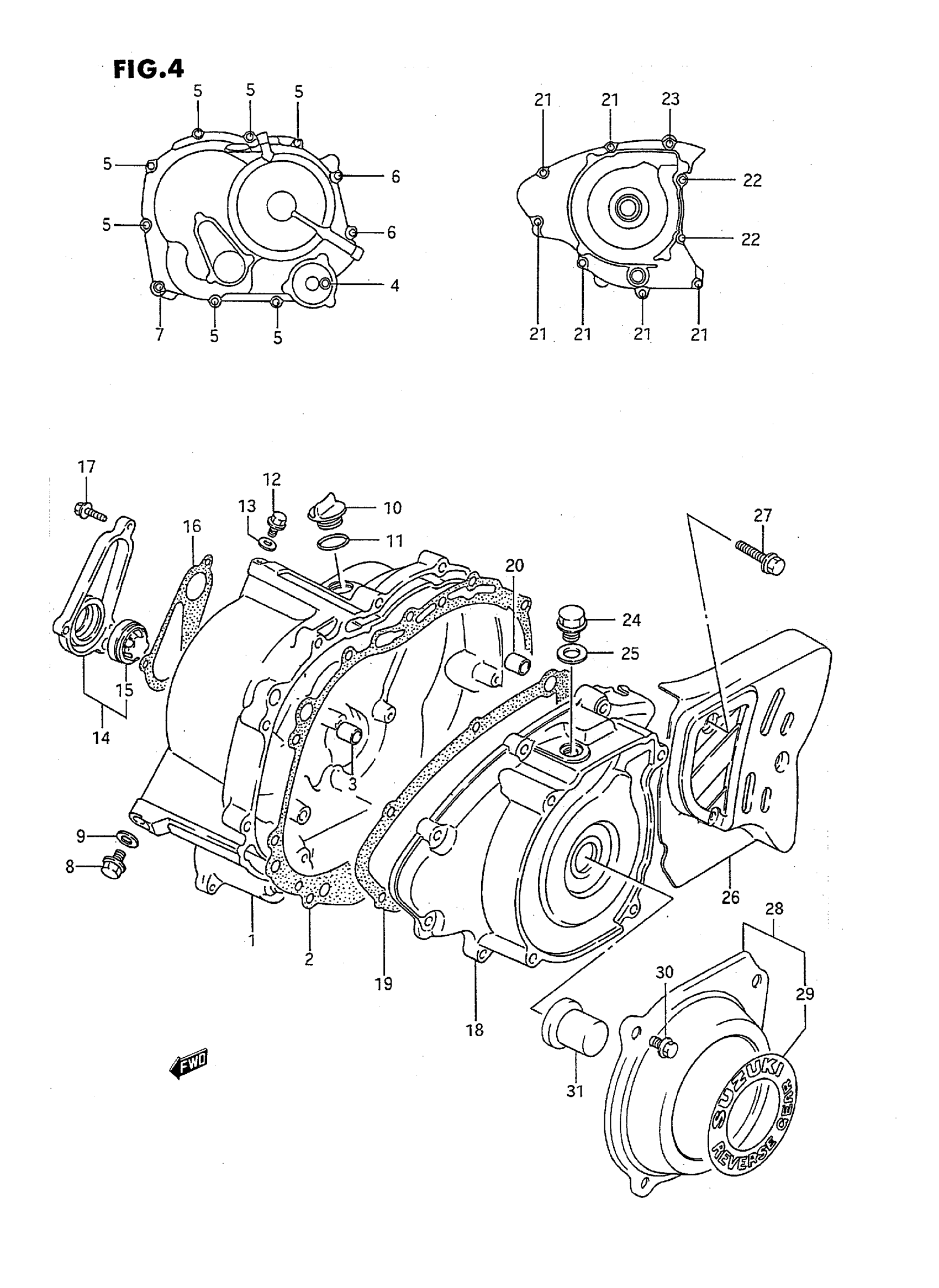

Suzuki LT-F160T (1996) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11341-35B00

Unavailable

2

GASKET, CLUTCH COVER

11482-02C10

$19.03

3

PIN | MODEL M/N/P/R This part replaces 09206-13001.

04211-13189

$2.19

3

PIN | MODEL S/T

04211-13189

$2.19

4

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

$2.45

4

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

$2.45

5

BOLT, WATER PUMP | MODEL M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

5

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

$2.73

6

BOLT (6X45) | MODEL M/N/P This part replaces 09103-06013.

09103-06165

$3.03

6

BOLT (6X45) | MODEL R/S/T

09103-06165

$3.03

7

BOLT | MODEL M/N/P This part replaces 01547-06555.

01547-0655B

$2.75

7

BOLT | MODEL R/S/T This part replaces 01547-06553.

01547-0655B

$2.75

8

BOLT (8X12) | MODEL M/N/P This part replaces 01517-08125.

01550-0812A

$2.32

8

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

$2.32

9

GASKET

09168-08015

$2.79

10

PLUG (20X10) This part replaces 09259-20013.

09259-20019

$11.52

11

O RING

09280-17003

$1.65

12

BOLT | MODEL M/N/P This part replaces 01517-06105.

01550-0610A

$1.97

12

BOLT | MODEL R/S/T This part replaces 01550-06103.

01550-0610A

$1.97

13

GASKET | MODEL M/N/P/R

09168-06023

$2.35

13

GASKET | MODEL S/T

09168-06024

$2.20

14

CAP, CLUTCH RELEASE ADJUST | Includes Item(s) 15

11410-18A10

$58.57

15

LENS, OIL LEVEL

11971-33210

$18.20

16

GASKET,CL RLSE This part replaces 11495-02C10.

11495-02C11

$6.80

17

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

$2.45

17

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

$2.45

18

COVER, MAGNETO

11351-35B01

Unavailable

19

GASKET, MAGNETO COVER

11483-02C10

$11.13

20

PIN | MODEL M/N/P/R This part replaces 09206-13001.

04211-13189

$2.19

20

PIN | MODEL S/T

04211-13189

$2.19

21

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

$2.45

21

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

$2.45

22

BOLT, WATER PUMP | MODEL M/N/P This part replaces 01547-06354.

01547-0635B

$2.73

22

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

$2.73

23

BOLT | MODEL M/N/P This part replaces 01547-06454.

01547-0645B

$2.73

23

BOLT | MODEL R/S/T This part replaces 01547-06453.

01547-0645B

$2.73

24

PLUG, T.D.C

09247-14015

$4.45

25

GASKET | MODEL M/N/P/R

09168-14004

$1.83

25

GASKET | MODEL S/T

09168-14002

$2.26

26

COVER, ENGINE SPROCKET

11360-02C00

Unavailable

27

BOLT | MODEL M/N/P This part replaces 01547-06304.

01547-06307

$2.03

27

BOLT, FINAL GEAR CASE | MODEL R/S/T This part replaces 01547-06303.

01547-0630B

$2.73

28

COVER, RECOIL | Includes Item(s) 29

18110-02C00

Unavailable

29

EMBLEM This part replaces 68398-244A0-97V.

68398-24410

$13.81

30

BOLT, EXHAUST DRAIN | MODEL M/N/P This part replaces 01547-06125.

01547-06127

$1.65

30

BOLT | MODEL R/S/T This part replaces 01547-06123.

01547-0612B

$1.49

31

PLUG

12358-02C00

$18.02
