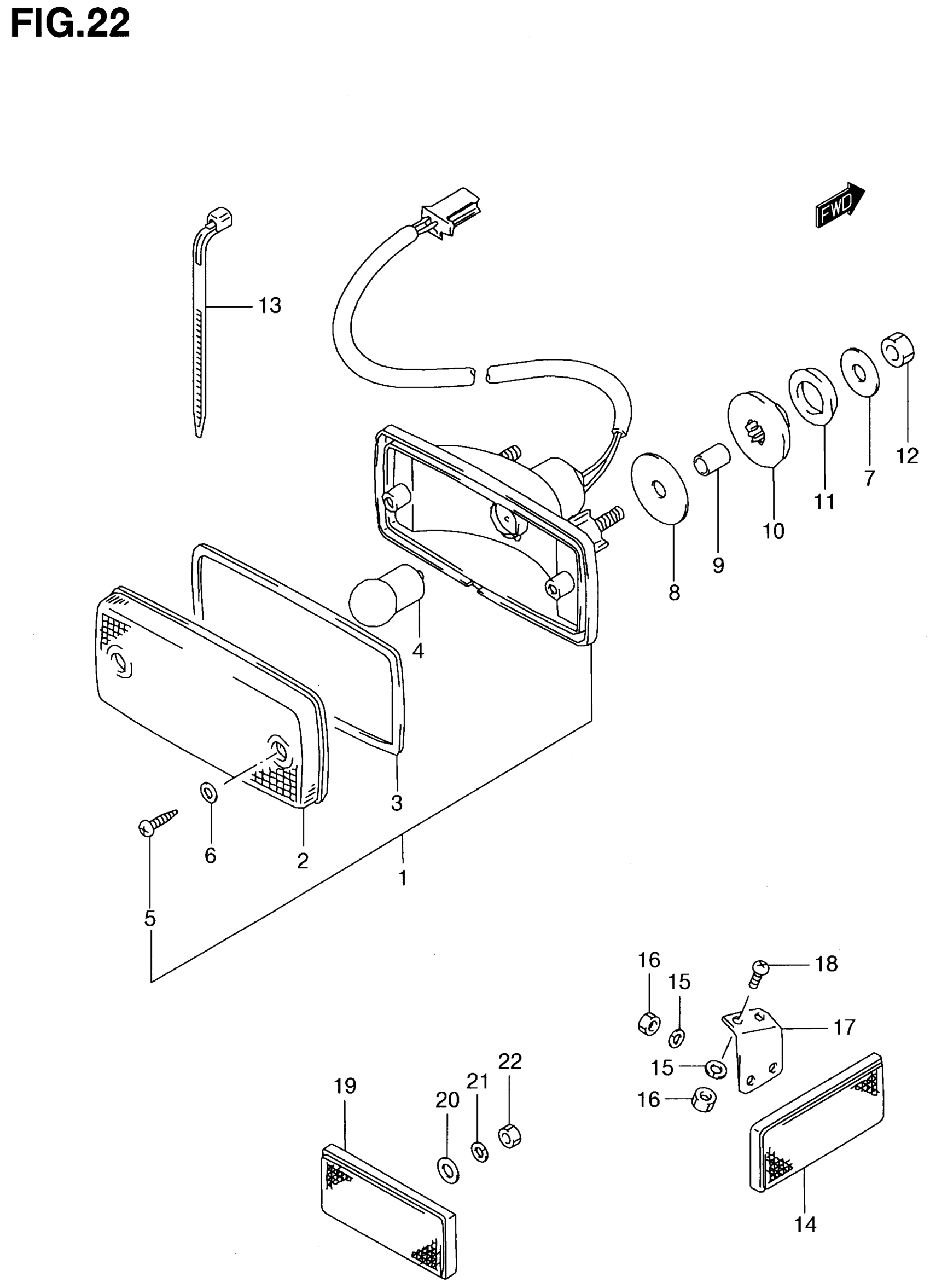

Suzuki LT-F160 (2001) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL V/W/X/Y

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL K1; Includes Item(s) 2 - 6

35710-02C00

$110.84

2

LENS

35712-18A32

$45.31

3

GASKET

35713-18A30

$9.67

4

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

5

SCREW

03212-04169

$1.49

6

GASKET

35627-43010

$2.28

7

WASHER (6.5X20X1.2)

09160-06077

$1.91

8

WASHER (6.5X30X1.2)

09160-06071

Unavailable

9

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

$2.63

10

CUSHION

09320-09012

Unavailable

11

CUSHION

09320-14010

Unavailable

12

NUT This part replaces 08310-00063.

08310-0006A

$1.84

13

CLAMP (L:95)

09407-11401

$2.63

14

REFLECTOR, REAR SIDE | P28

35970-00A10

Unavailable

15

LOCK WASHER | P28 This part replaces 08321-01053.

08321-0105A

$1.84

16

NUT | P28 This part replaces 08310-00053.

08310-0005A

$1.84

17

BRACKET, REAR RH | P28

35975-02C00

Unavailable

17

BRACKET, REAR LH | P28

35976-02C00

Unavailable

18

SCREW | P28 This part replaces 02142-05103.

02142-0510B

$1.78

19

REFLECTOR, REAR | P28

35970-00A10

Unavailable

20

WASHER, FRONT | P28 This part replaces 08322-01053.

08322-0105A

$1.84

21

LOCK WASHER | P28 This part replaces 08321-01053.

08321-0105A

$1.84

22

NUT | P28 This part replaces 08313-10053.

08313-1005B

$2.70
