Partiron

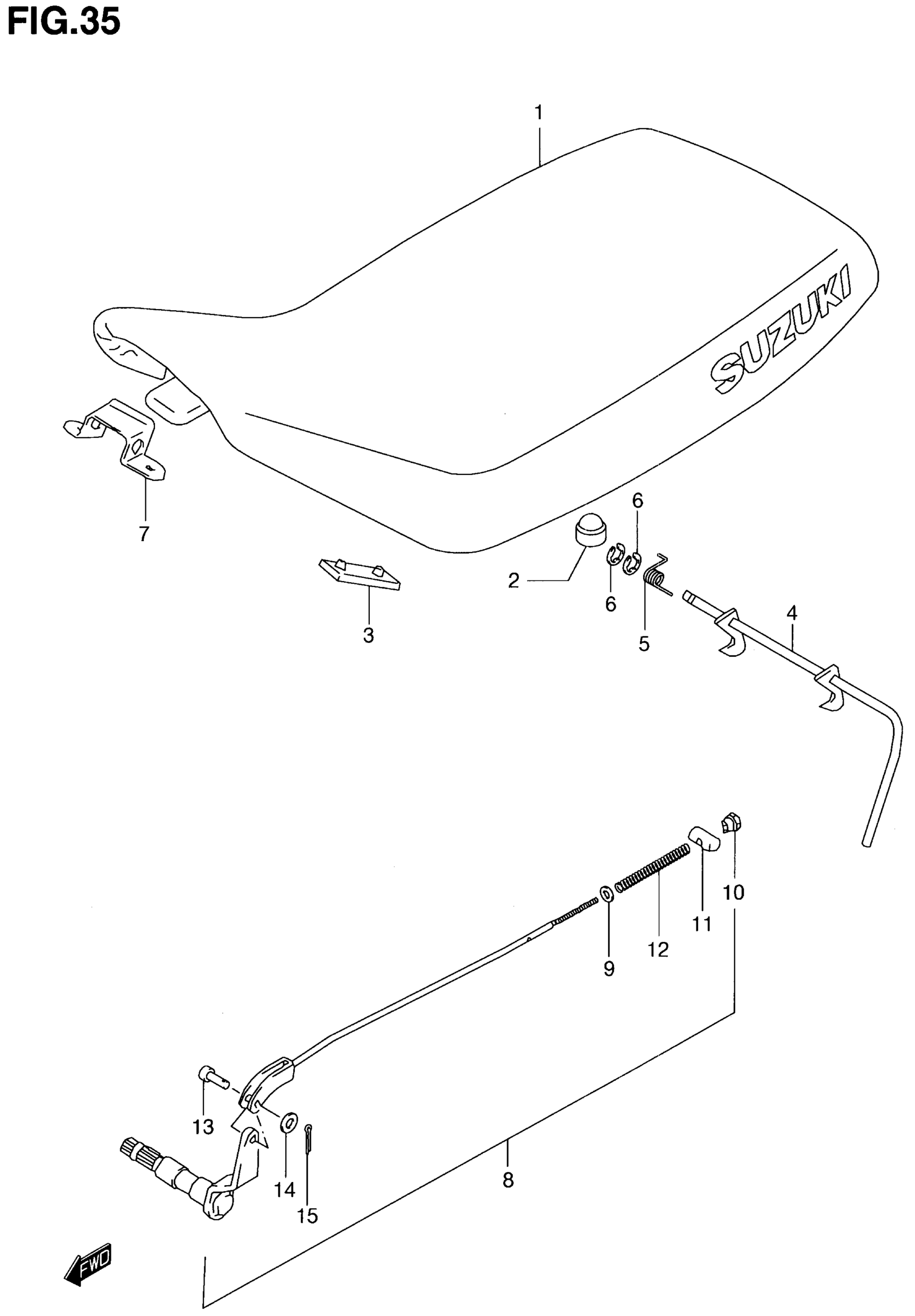

Suzuki LT-F160 (2001) SEAT Diagram

#

Description
Price

1

SEAT ASSY (GRAY/WHITE)

45100-02C00-E3E

Unavailable

1

SEAT ASSY (BLACK) | Includes Item(s) 2 - 6 This part replaces 45100-02C00-9MG.

45100-02C00-58P

Unavailable

2

CUSHION This part replaces 09321-100B2.

09321-10012

$2.92

3

CUSHION

09321-08009

$3.05

4

CLAMP, SEAT

45210-02C00

Unavailable

5

SPRING

45135-24301

Unavailable

6

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

7

PLATE, SEAT REAR HOOK

45119-02C00

Unavailable

8

ROD ASSY, REAR BRAKE | Includes Item(s) 9 - 14

43300-02C00

$30.22

9

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

10

.NUT This part replaces 09150-06014.

09150-06010

$3.10

11

PIN This part replaces 09209-130A6.

09209-13006

$5.24

12

.SPRING This part replaces 09440-090B3.

09440-09004

$2.20

13

PIN

09200-060B3

Unavailable

14

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
