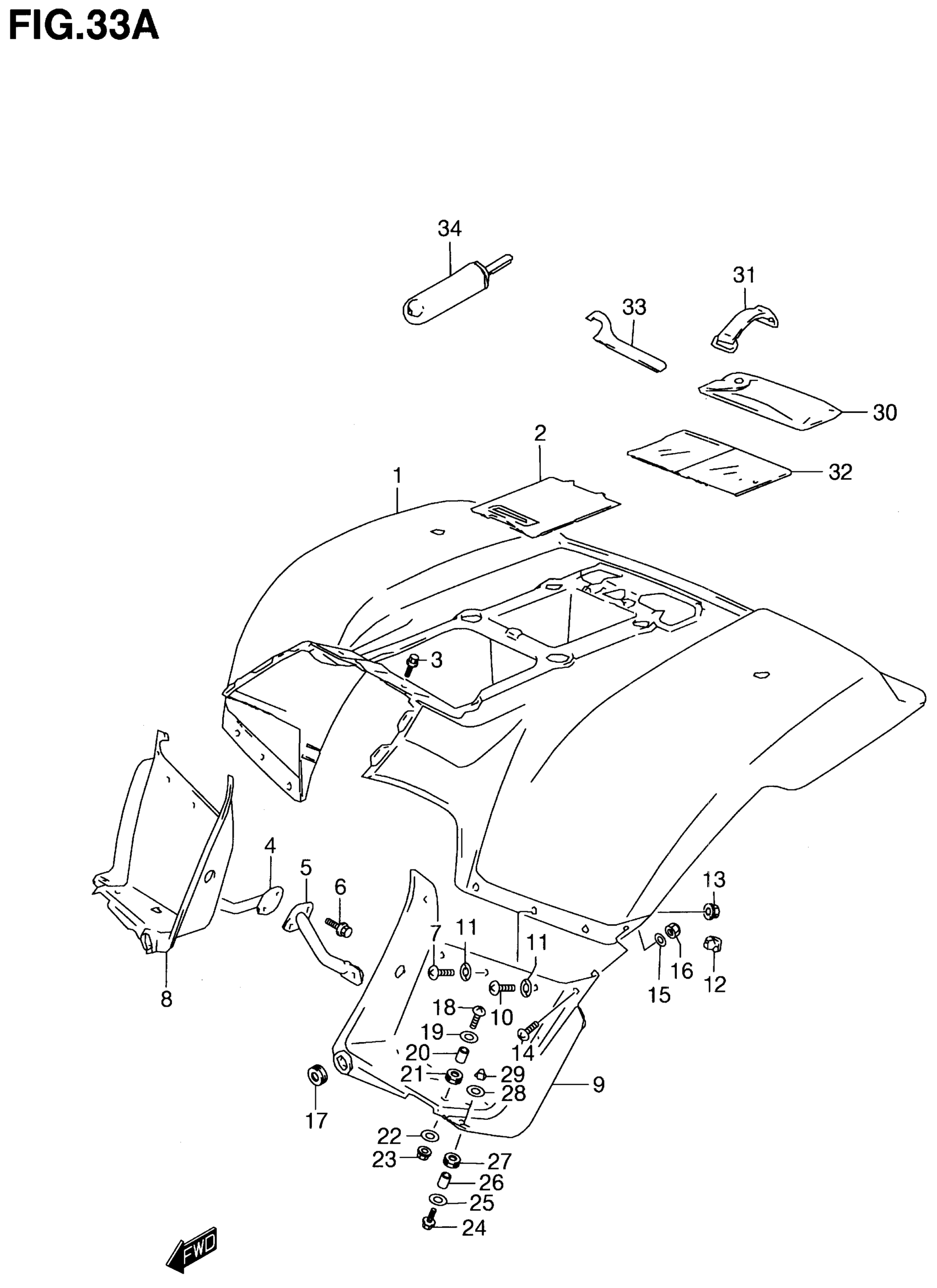

Suzuki LT-F160 (2001) REAR FENDER (MODEL K1) Diagram

FENDER, REAR (BLUE)

63111-02C21-1LH

Unavailable

FENDER, REAR (YELLOW)

63111-02C21-25Y

Unavailable

FENDER, REAR (BLUE) | P28

63111-02C31-1LH

Unavailable

FENDER, REAR (YELLOW) | P28

63111-02C31-25Y

Unavailable

COVER, FENDER (BLACK)

63171-02C00-291

Unavailable

BOLT

09118-06017

$2.12

REINFORCEMENT, RH

63140-02C00

Unavailable

REINFORCEMENT, LH

63150-02C00

Unavailable

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

BODY, MUD GUARD RH (BLACK)

63330-02C10-291

Unavailable

BODY, MUD GUARD LH (BLACK)

63340-02C10-291

Unavailable

SCREW

09136-06004

$2.15

WASHER, MUD GUARD

09160-06109

$1.49

NUT

09146-06003

$2.12

NUT, CENTER

08319-31067

$2.03

.SCREW This part replaces 02142-05123.

02142-0512A

$1.49

WASHER, FRONT This part replaces 08322-01053.

08322-0105A

$1.84

NUT This part replaces 08319-31053.

08319-3105B

$3.55

CUSHION (8.5X20X8) This part replaces 09320-08021.

09320-08510

$1.97

SCREW, REAR This part replaces 02142-05203.

02142-0520B

$1.78

WASHER

09160-05037

$1.49

SPACER

09180-06248

$2.12

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

WASHER

09160-05501

$1.84

NUT This part replaces 08319-31053.

08319-3105B

$3.55

BOLT This part replaces 01550-05163.

01550-0516B

$2.88

WASHER

09160-05501

$1.84

SPACER

09180-06248

$2.12

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

WASHER

09160-05037

$1.49

NUT This part replaces 08313-10053.

08313-1005B

$2.70

TOOL ASSY This part replaces 09800-21019.

09800-21075

$44.50

BAND This part replaces 09462-000E6.

09462-00046

$3.70

BAG,OWNER'S MAN This part replaces 94980-01C01.

94980-01C02

$20.65

CLAMP, WRENCH

09822-00004

$14.43

GAUGE ASSY,AIR PRESSUR

96200-18A02

$58.92
