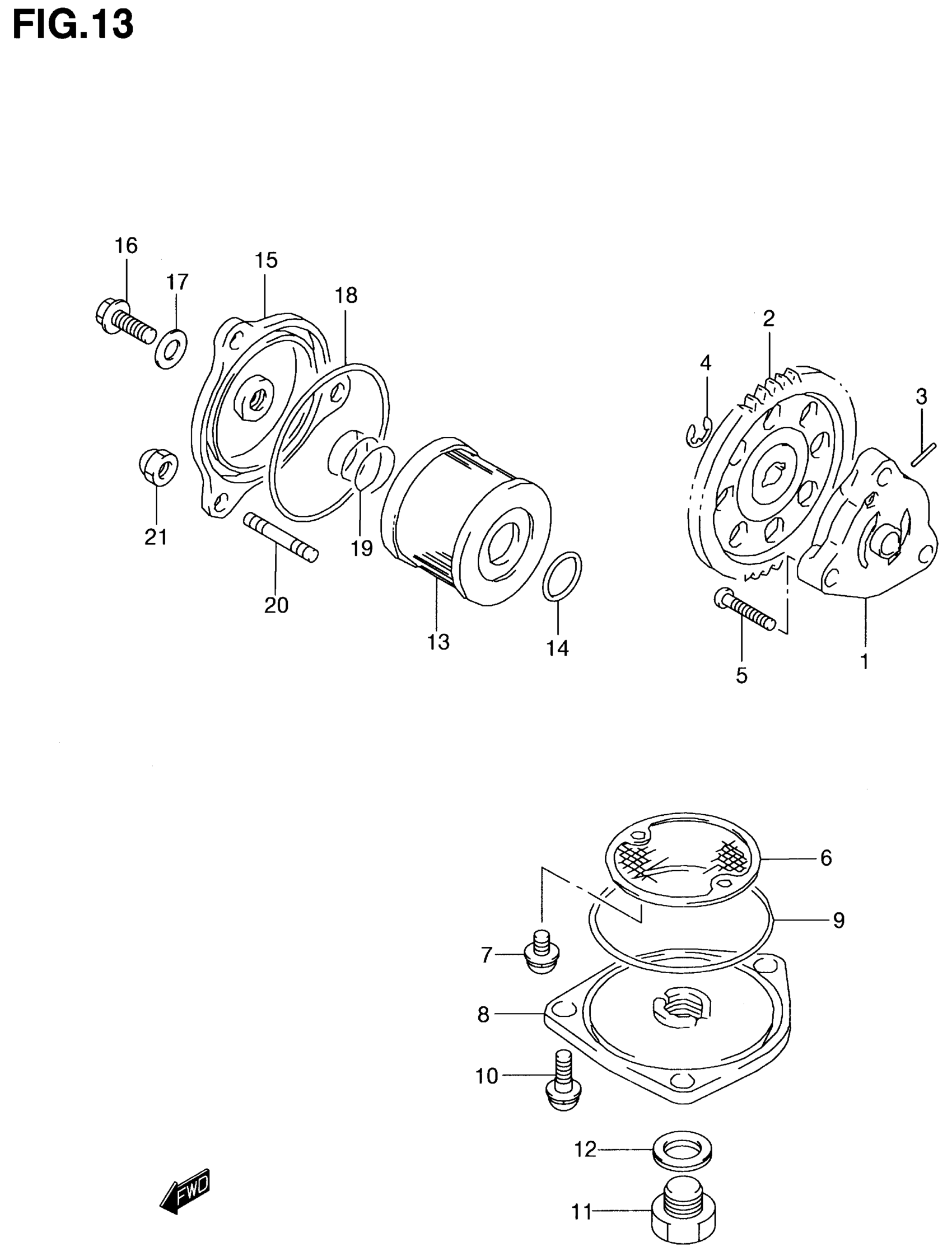

Suzuki LT-F160 (2001) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP, ENGINE OIL

16400-01412

$158.33

2

GEAR, DRIVEN (NT:47)

16331-20B00

$85.15

3

PIN

09261-02008

$1.65

4

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

5

SCREW This part replaces 02112-06203.

02112-0620A

$1.49

6

STRAINER, ENGINE OIL

16520-05202

$5.80

7

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

8

CAP, OIL STR

16523-05200

$14.26

9

.O RING (D:2.4,ID:60.5)

09280-60005

$3.18

10

..BOLT This part replaces 01547-06203.

01547-0620B

$2.45

11

PLUG (MAGNETO) | MODEL V/W This part replaces 09247-14001.

09247-14002

$5.24

11

PLUG, DRAIN | MODEL X/Y/K1

09247-14026

$3.76

12

GASKET

09168-14002

$2.26

13

FILTER ASSY, ENG OIL

16510-25C00

$7.80

14

O RING (D:1.9,ID:13)

09280-13004

$2.17

15

CAP, OIL FILTER

16512-22A00

$25.60

16

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

17

GASKET (8.2X14X1.6)

09168-08015

$2.79

18

O RING (D:2.4,ID:53.6)

09280-54002

$6.17

19

SPRING | MODEL V This part replaces 48281-85000.

09440-18002

$1.49

19

SPRING | MODEL W/X/Y/K1

09440-18002

$1.49

20

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

21

NUT This part replaces 08313-10063.

08313-1006A

$1.84
