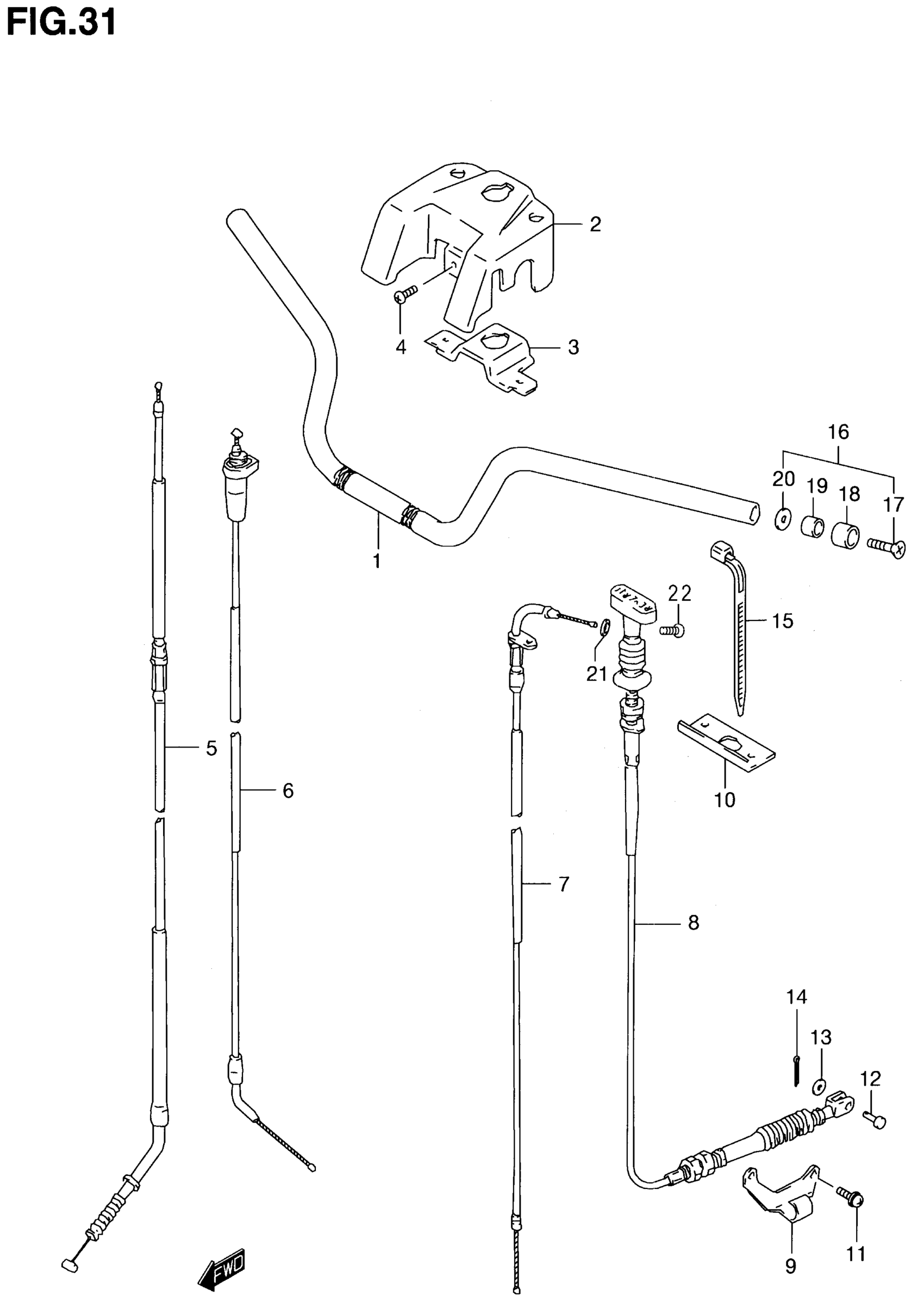

Suzuki LT-F160 (2001) HANDLE BAR Diagram

#

Description
Price

1

HANDLE BAR (BLACK)

56110-02C01-291

Unavailable

2

COVER, STEERING HEAD (BLACK)

56171-02C00-291

$21.10

3

BRACKET, COVER

56172-02C00

$13.05

4

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

5

CABLE ASSY, BRAKE

58100-02C01

$67.73

6

CABLE ASSY,THRO This part replaces 58300-02C00.

58300-02C02

$24.37

6

CABLE ASSY, THROTTLE | P33 This part replaces 58300-02C10.

58300-02C11

Unavailable

7

CABLE ASSY, STARTER

58400-02C01

$21.65

7

CABLE ASSY, STARTER | P33

58400-02C10

Unavailable

8

CABLE, REVERSE

58840-02C01

$115.03

9

BRACKET, LOWER

58871-02C00

Unavailable

10

BRACKET, UPPER

58872-02C00

$8.77

11

SCREW This part replaces 02112-76123.

02112-7612B

$2.85

12

PIN

09200-05001

$1.65

13

WASHER (6.5X14X2.3) | MODEL V This part replaces 09160-06017.

09160-06127

$2.30

13

WASHER | MODEL W/X/Y/K1

09160-06127

$2.30

14

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

15

CLAMP

09407-18402

$2.19

16

BALANCER SET,HA | Includes Item(s) 17 - 20 This part replaces 56200-02811.

56200-02812

Unavailable

17

SCREW This part replaces 02122-06403.

02122-0640A

$2.83

18

CAP

56274-33400

Unavailable

19

BALANCER

56271-33400

Unavailable

20

SPACER

56275-34401

$4.02

21

WASHER | MODEL V This part replaces 09161-05015.

09320-06503

$2.63

21

WASHER | MODEL W/X/Y/K1

09320-06503

$2.63

22

SCREW, KNOB

58487-24500

$5.95
