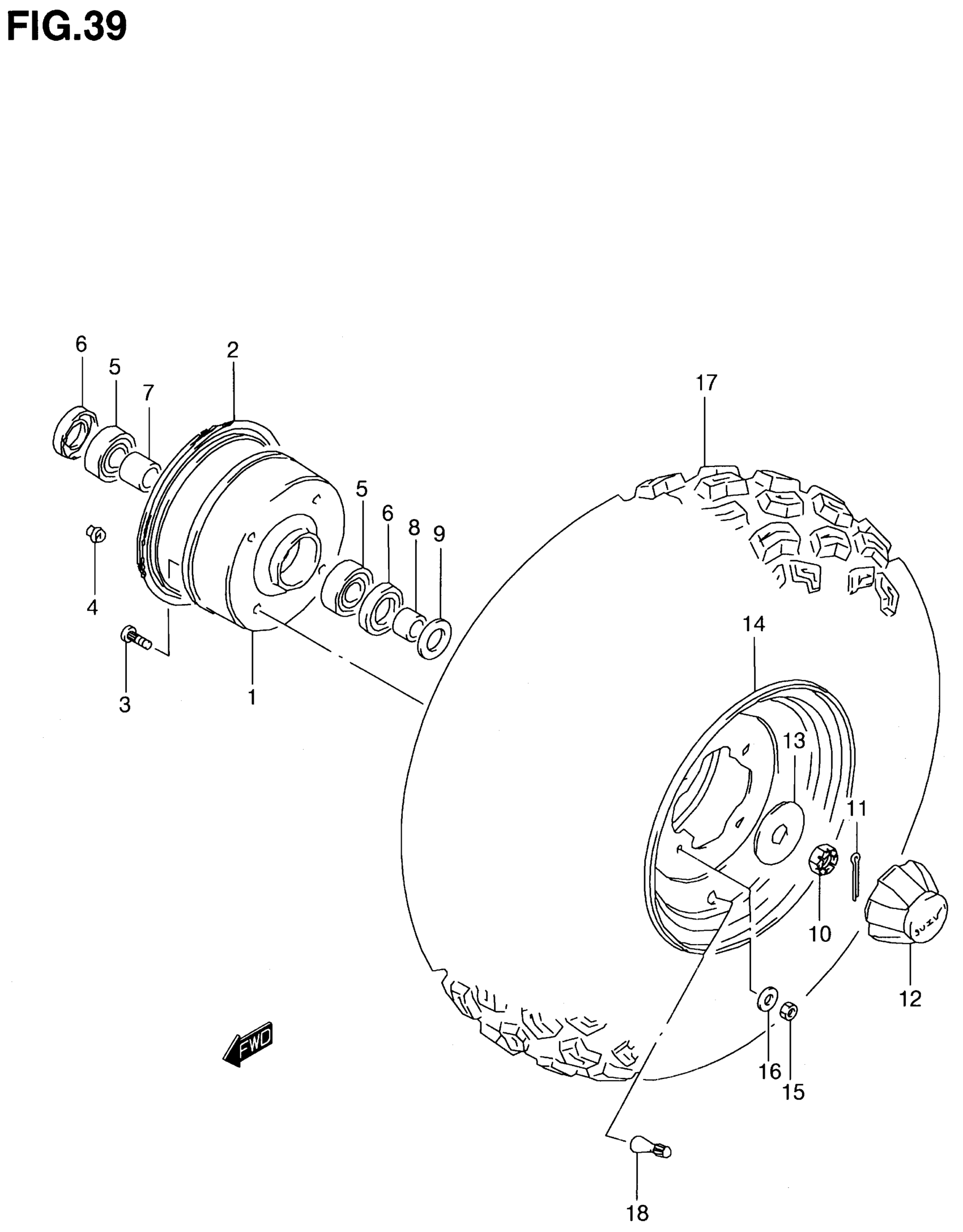

Suzuki LT-F160 (2001) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT (SILVER)

54111-02C10-13L

$305.05

2

DUST SEAL, DRUM BRAKE | (133X158X15.8)

54124-02C00

$63.72

3

BOLT, FRONT HUB (8X22)

09119-08073

$3.68

4

PLUG, BRAKE HOLE

54265-02C00

Unavailable

5

BEARING

08120-62037

$21.05

6

DUST SEAL (22.2X40X8)

09284-22002

$13.87

7

SPACER, FRONT HUB | (17.6X22.2X16)

54731-02C00

$10.06

8

SPACER, FRONT AXLE

54741-189A0

$6.64

9

WASHER This part replaces 08322-01163.

08322-0116A

$1.84

10

NUT, HUB This part replaces 08314-40163.

08314-4016A

$3.79

11

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

12

CAP, WHEEL CENTER

54725-39D00

$14.76

13

HOLDER, CENTER CAP

64726-40B00

$4.02

14

RIM, FRONT WHEEL (8X5.5AT) | (SILVER)

55310-02C00-13L

Unavailable

15

NUT This part replaces 08316-10083.

08316-1008B

$2.66

16

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

17

TIRE, FRONT (AT20X7-8) | (GOLDEN BOY)

55100-02C30

Unavailable

18

VALVE ASSY, WHEEL RIM,TR413

43130-78030

$9.25
