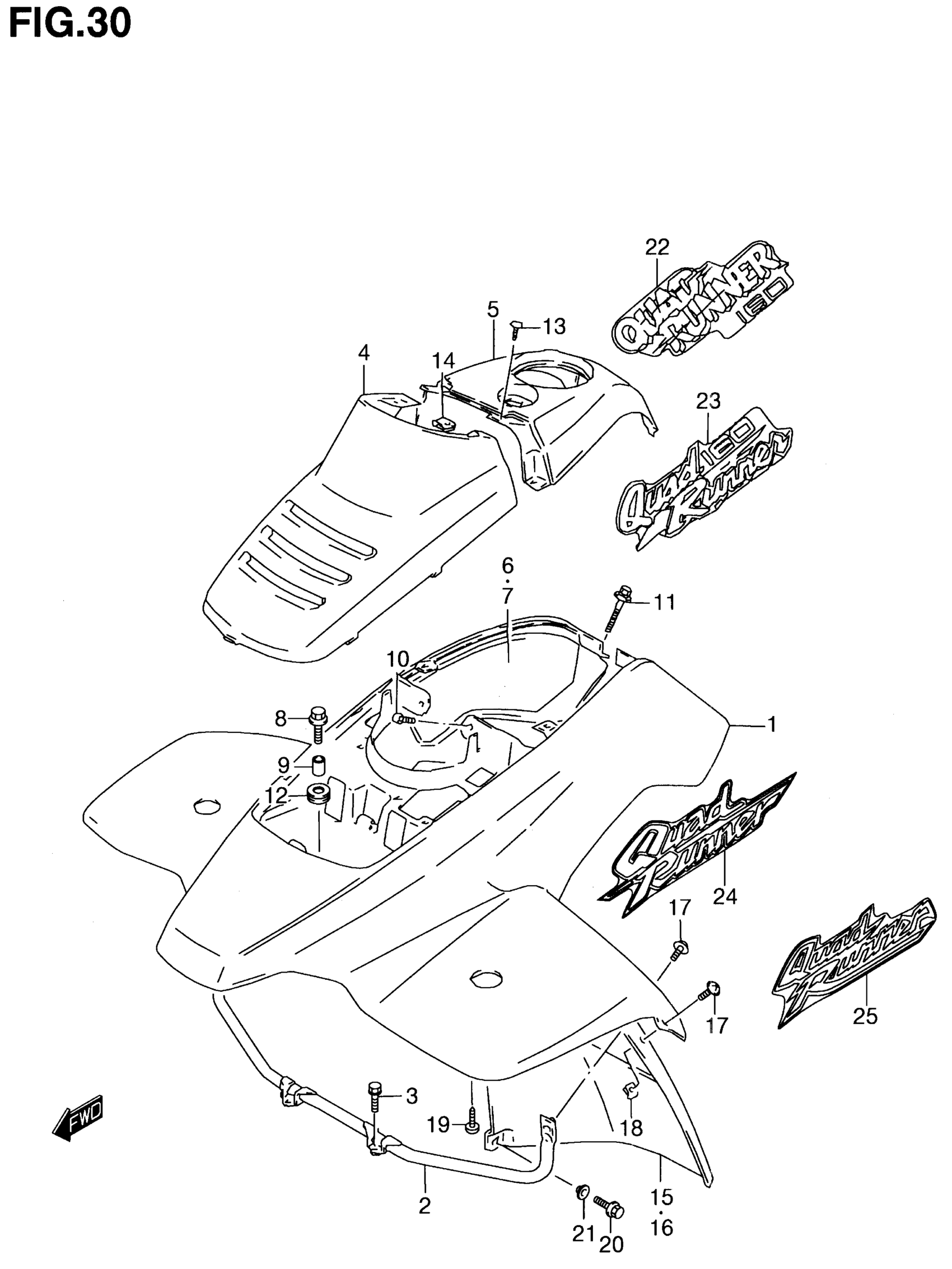

Suzuki LT-F160 (2001) FRONT FENDER (MODEL V/W/X/Y) Diagram

#

Description
Price

1

FENDER, FRONT CENTER (BLUE) | MODEL V/W This part replaces 53111-02C10-1LH.

53111-02C11-1LH

Unavailable

1

FENDER, FRONT CENTER (BLUE) | MODEL X/Y

53111-02C11-1LH

Unavailable

2

BRACE, FRONT FENDER

53210-02C00

Unavailable

3

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

4

FENDER, CENTER FRONT | (CHARCORL)

53118-02C00-0LP

$84.66

5

FENDER, CENTER REAR (CHARCORL)

53119-02C00-0LP

$76.87

6

CUSHION, RH

53145-02C00

Unavailable

7

CUSHION, LH

53146-02C00

Unavailable

8

BOLT, FENDER FRONT

09116-06025

$2.44

9

SPACER This part replaces 09180-061C0.

09180-06120

$2.32

10

BOLT, FENDER CENTER

09118-06020

$3.30

11

BOLT | MODEL V/W/X This part replaces 01580-06353.

01580-0635B

$4.00

11

BOLT, FENDER REAR | MODEL Y

09112-06008

Unavailable

12

CUSHION, FRONT

09320-11008

$2.60

13

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

14

NUT

09148-05019

$1.86

15

MUD FLAP, RH

53311-02C00

$150.64

16

MUD FLAP, LH

53312-02C00

$150.64

17

SCREW

09136-06004

$2.15

18

NUT | MODEL V/W/X This part replaces 09146-06001.

09146-06003

$2.12

18

NUT | MODEL Y

09146-06003

$2.12

19

SCREW, UPPER

09136-05024

Unavailable

20

BOLT This part replaces 01570-06123.

01570-0612A

$2.63

21

WASHER

09169-06026

$2.20

22

EMBLEM, FRONT FENDER | MODEL V

68151-02C50-G1W

Unavailable

23

EMBLEM, FRONT FENDER | MODEL W

68151-02C60-Y5M

Unavailable

24

EMBLEM, FRONT FENDER | MODEL X

68151-02C70-L9J

Unavailable

25

EMBLEM, FRONT FENDER | MODEL Y

68151-02C80-N5V

Unavailable
