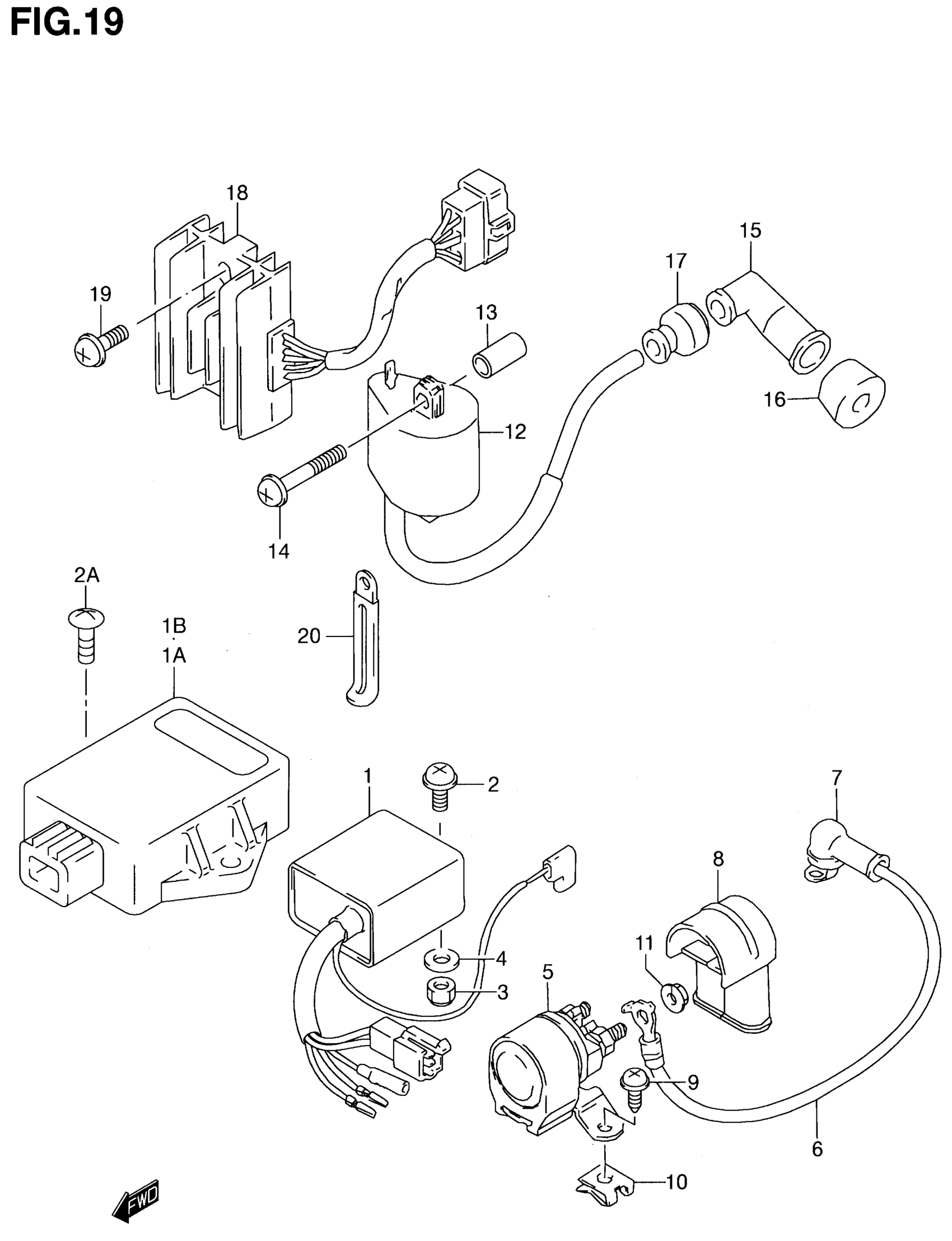

Suzuki LT-F160 (2001) ELECTRICAL Diagram

#

Description
Price

1

C.D.I UNIT | MODEL V/W/X

32900-02C00

Unavailable

1A

C.D.I UNIT | MODEL Y

32900-02C10

Unavailable

1B

C.D.I UNIT | MODEL K1

32900-02C20

$479.23

2

SCREW | MODEL V/W/X This part replaces 02112-16203.

02112-1620B

$2.62

2A

SCREW | MODEL Y/K1 This part replaces 02142-06163.

02142-0616A

$1.49

3

NUT | MODEL V/W/X

09159-06015

$2.02

4

WASHER, CLUTCH RLSE NO.2 | MODEL V/W/X This part replaces 09160-060G4.

09160-06052

$1.49

5

RELAY, STARTING MOTOR

31800-49100

$97.31

6

LEAD WIRE, STARTING MOTOR | Includes Item(s) 7

33850-44B01

$37.82

7

CAP, STARTING MOTOR

31861-48B10

$6.55

8

CAP, RELAY TERMINAL

31861-02C00

Unavailable

9

SCREW This part replaces 03241-15123.

03241-1512B

$2.39

10

NUT

09148-05019

$1.86

11

NUT This part replaces 08361-35068.

08361-3506A

$1.80

12

COIL ASSY,IGNIT This part replaces 33410-02C00.

33410-02C01

$112.62

13

SPACER (6.5X9X18)

09180-06271

$2.35

14

SCREW This part replaces 02142-06353.

02142-0635A

$2.72

15

CAP, SPARK PLUG

33510-43010

$24.99

16

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

17

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

18

RECTIFIER ASSY

32800-19B11

$227.68

19

SCREW This part replaces 02112-16203.

02112-1620B

$2.62

20

CLAMP This part replaces 09404-06431.

09404-06039

$1.74
