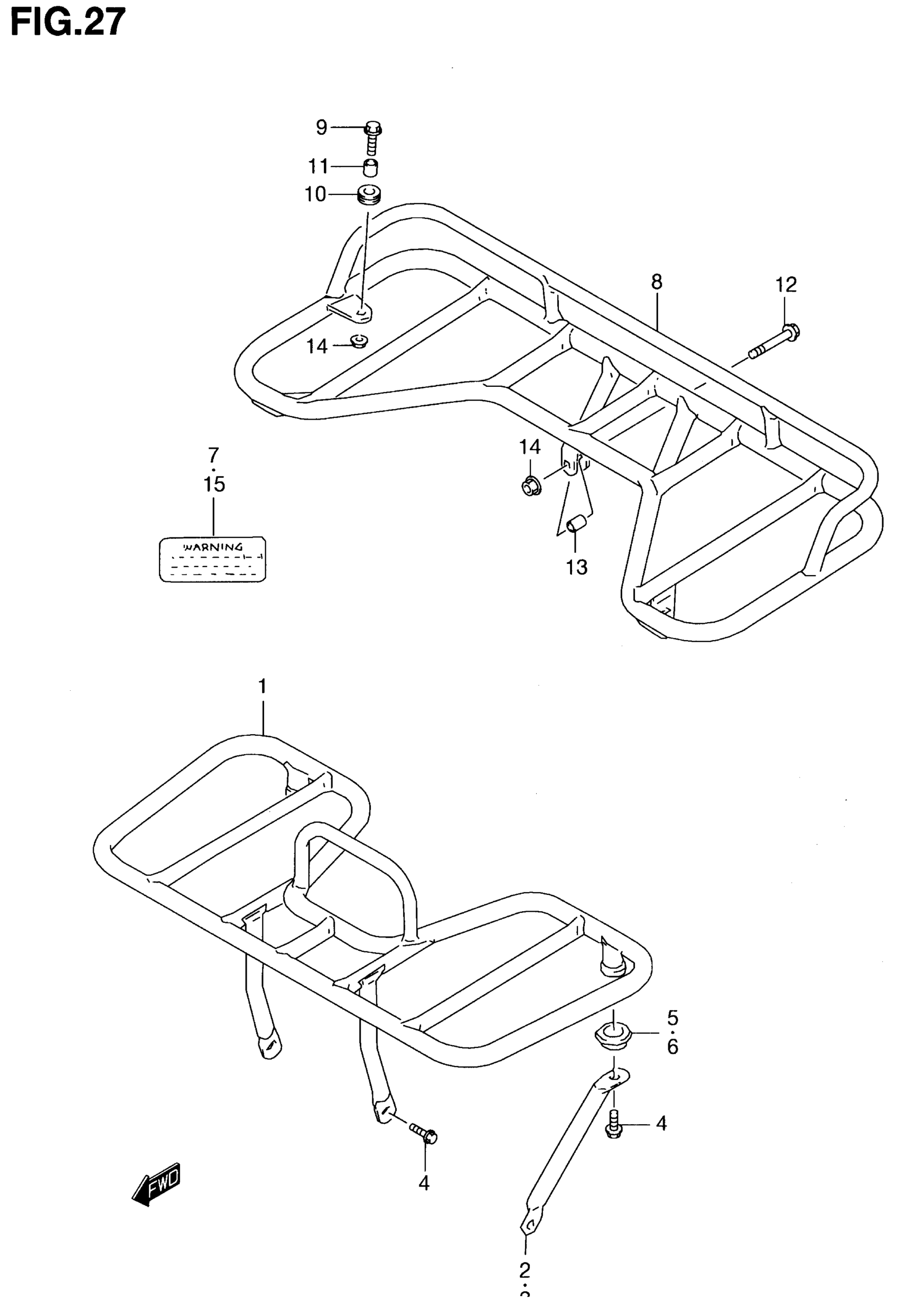

Suzuki LT-F160 (2001) CARRIER Diagram

#

Description
Price

1

CARRIER, FRONT

46410-02C10

Unavailable

2

STAY, REAR RH

46441-02C10

Unavailable

3

STAY, REAR LH

46442-02C10

Unavailable

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

5

GROMMET, RH

46455-02C10

$20.45

6

GROMMET, LH

46456-02C10

$20.45

7

LABEL, WARNING

68381-02C00

Unavailable

7

LABEL, WARNING | MODEL V/W/X/Y P28

68381-02C10

Unavailable

7

LABEL, WARNING | MODEL K1 P28

68381-02C20

Unavailable

8

CARRIER, REAR

46310-02C10

Unavailable

9

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

10

CUSHION

09320-15008

$3.89

11

SPACER

09180-08141

$3.12

12

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

13

SPACER, REAR

46392-02C10

Unavailable

14

NUT This part replaces 08316-10083.

08316-1008B

$2.66

15

LABEL, WARNING

68391-02C00

Unavailable

15

LABEL, WARNING | MODEL V/W/X/Y P28

68391-02C10

Unavailable

15

LABEL, WARNING | MODEL K1 P28

68391-02C20

Unavailable
