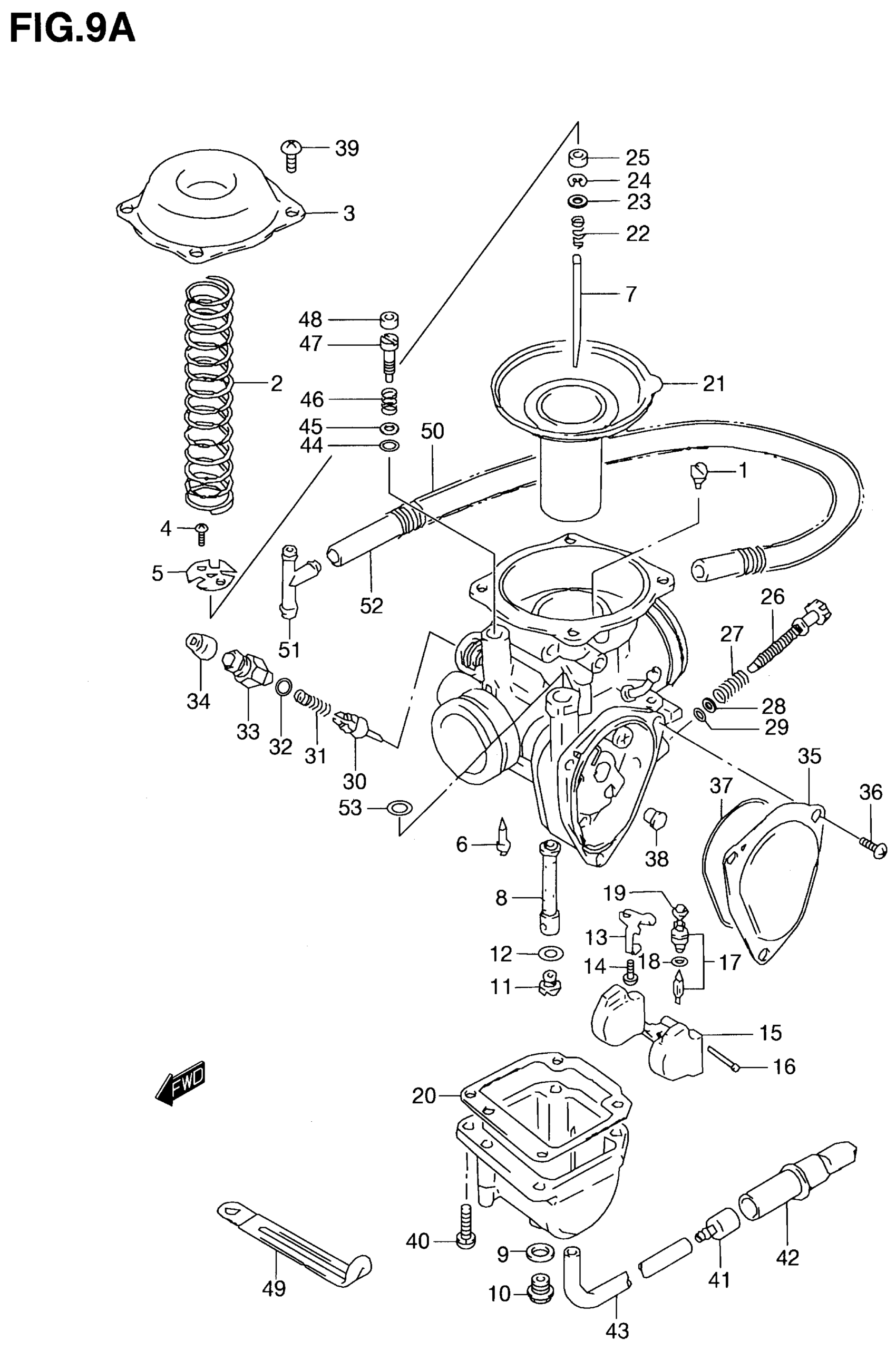

Suzuki LT-F160 (2001) CARBURETOR (P33) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 28

13200-02C10

Unavailable

1

JET, PILOT AIR (180)

09491-34007

$12.58

2

SPRING, THROTTLE VALVE

13503-05350

Unavailable

3

COVER

13502-33210

Unavailable

4

SCREW This part replaces 02112-03063.

02112-0306B

$1.59

5

PLATE

13389-37400

$7.08

6

JET, PILOT (32.5)

09492-32006

$11.32

7

NEEDLE, JET (4DZ42)

13383-02C10

Unavailable

8

JET, NEEDLE (P-2)

09494-00903

Unavailable

9

GASKET

13246-44080

$2.80

10

SCREW, DRAIN

13247-44080

$7.97

11

JET, MAIN (107.5)

09491-26011

$11.38

12

WASHER, NEEDLE JET | MODEL V This part replaces 13332-44080.

13382-03110

$2.80

12

WASHER | MODEL W/X/Y/K1

13382-03110

$2.80

13

PLATE

13373-11400

$7.05

14

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

15

FLOAT

13250-05300

$36.73

16

PIN

13254-92311

$2.07

17

VALVE ASSY, NEEDLE (2.0)

13370-44500

$50.98

18

O RING | MODEL V/W/X/Y This part replaces 13374-44080.

13374-35C00

$5.99

18

O RING | MODEL K1

13374-35C00

$5.99

19

FILTER | MODEL V/W/X/Y This part replaces 13376-84110.

13376-19F00

$10.28

19

NET | MODEL K1

13376-19F00

$10.28

20

GASKET, FLOAT CHAMBER | MODEL V/W/X/Y This part replaces 13251-05400.

13251-20E20

$13.28

20

GASKET, FLOAT CHAMBER | MODEL K1

13251-20E20

$13.28

21

DIAPHRAGM ASSY This part replaces 13500-053D0.

13500-053D1

$209.00

22

SPRING

13388-44030

$8.12

23

WASHER

13382-44030

$3.71

24

.E-RING

13394-40D20

$5.45

25

RING

13387-47010

$7.22

26

ADJUSTER

13267-13D01

Unavailable

27

SPRING

13268-37420

$5.32

28

WASHER

13615-02C10

Unavailable

29

O RING | Includes Item(s) 30 - 48

13295-02C10

Unavailable

30

PLUNGER ASSY

13411-01400

$13.30

31

SPRING

13417-01010

$4.62

32

O RING

13278-02330

$2.82

33

HOLDER, GUIDE

13418-43200

$10.48

34

.CAP This part replaces 13681-04010.

13681-04011

$4.93

35

COVER, THROTTLE

13502-02C10

$14.40

36

SCREW

13602-48B00

$4.17

37

O RING

13673-02C10

$26.72

38

GUIDE, CABLE

13591-19B50

$10.28

39

SCREW

02112-05087

$1.49

40

SCREW | MODEL V/W/X/Y This part replaces 13601-45C00.

13601-04148

$2.81

40

SCREW | MODEL K1

13601-04148

$2.81

41

VALVE ASSY, CHECK | MODEL V/W/X/Y

13520-02C10

Unavailable

41

VALVE ASSY, CHECK | MODEL K1

13520-02C01

$50.10

42

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$13.57

43

HOSE

13684-02C30

Unavailable

44

O-RING This part replaces 13295-29900.

13295-29901

$4.34

45

WASHER

13291-29900

$1.98

46

.SPRING (NT:45)

13268-47070

$4.34

47

SCREW, PILOT (2,1/4)

13279-45400

$14.85

48

PLUG

13281-05A00

$4.60

49

CLAMP, CARB OVERFLOW HOSE | MODEL V/W

09404-06429

$1.83

49

CLAMP | MODEL X/Y/K1 This part replaces 09404-06432.

09404-06039

$1.74

50

SPRING, AIR VENT HOSE

09440-13051

$10.76

51

UNION, 3 WAY

09367-08004

$4.83

52

HOSE(5X8.2X600) | L:600->500 This part replaces 09359-50823-600.

09359-50824-600

$7.98

53

O RING, THROTTLE CABLE

09280-06008

$2.03
