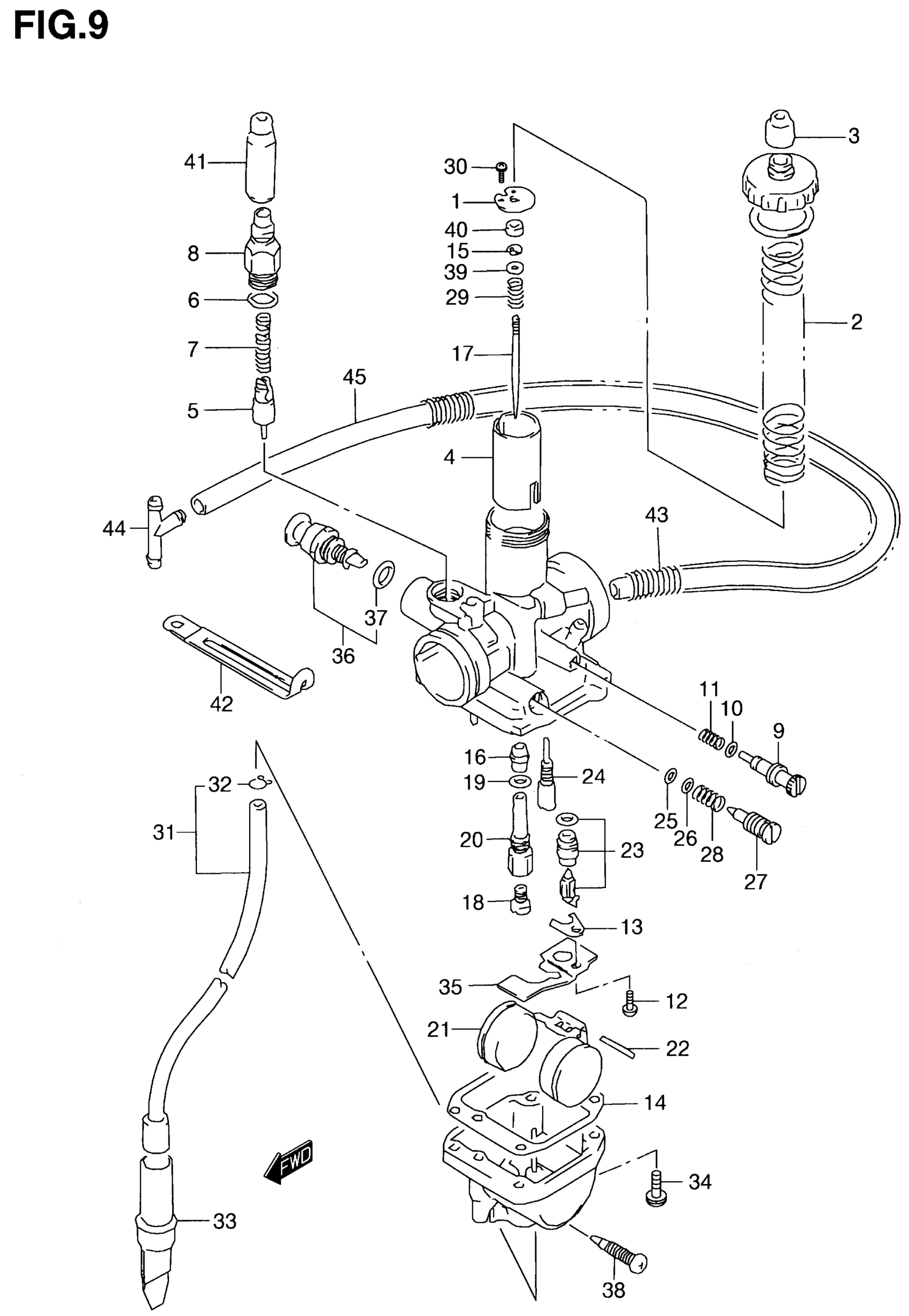

Suzuki LT-F160 (2001) CARBURETOR (P3,P28) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 41 This part replaces 13200-02C03.

13200-02C04

$200.02

1

SEAT, SPRING

13373-05230

$8.32

2

SPRING

13573-18901

$10.55

3

.CAP This part replaces 13681-04010.

13681-04011

$4.51

4

VALVE, PISTON (CA:2.5)

13551-02C00

$98.00

5

PLUNGER

13411-18910

$18.89

6

O RING

13278-02330

$2.80

7

SPRING

13417-01010

$4.36

8

CAP, PLUNGER

13418-02330

$12.85

9

SCREW

13267-24500

$11.92

10

O RING

13295-33010

$4.09

11

SPRING

13268-35010

$4.09

12

SCREW This part replaces 02112-03063.

02112-0306B

$1.61

13

PLATE

13373-46710

$6.77

14

GASKET

13251-05320

$7.04

15

E RING

13394-10010

$6.15

16

JET, NEEDLE (O-1)

09494-00540

$27.53

17

NEEDLE, JET (5FU96-3)

13383-02C01

$21.62

18

JET, MAIN (87.5)

09491-87005

$12.38

19

.O RING This part replaces 13246-43010.

13246-43011

$3.97

20

PIPE, BLEEDER

13385-41B00

$39.73

21

FLOAT

13250-05230

$24.63

22

.PIN, FLOAT

13254-01010

$3.41

23

VALVE ASSY, NEEDLE

13370-02C00

$83.30

24

JET, PILOT (22.5) | MODEL V This part replaces 09492-22003.

09492-22008

$16.13

24

JET, PILOT (22.5) | MODEL W/X/Y/K1

09492-22008

$16.13

25

O-RING This part replaces 13295-29900.

13295-29901

$3.97

26

GASKET

13291-29900

$1.87

27

SCREW, PILOT (2 7/8) | MODEL V/W/X/Y This part replaces 13279-47080.

13279-47070

$12.24

27

SCREW, PILOT (1 5/8) | MODEL K1

13279-47070

$12.24

28

.SPRING (NT:45)

13268-47070

$3.97

29

SPRING

13388-47010

$9.17

30

SCREW

13601-05230

$3.80

31

VALVE ASSY, CHECK

13520-02C01

$56.53

32

CLIP

13671-05A40

$3.50

33

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$15.30

34

SCREW

13601-04148

$2.80

35

PLATE

13259-18900

$8.52

36

PLUNGER ASSY, STARTER

13439-18911

$58.62

37

O RING

13278-02330

$2.80

38

SCREW, DRAIN | MODEL V/W/X/Y This part replaces 13247-13A00.

13247-02340

$4.56

38

SCREW | MODEL K1

13247-02340

$4.56

39

WASHER

13382-47010

$3.35

40

RING

13387-47010

$6.80

41

CAP

13681-33010

$8.54

42

CLAMP, CARB OVER FLOW HOSE | MODEL V/W

09404-06429

$1.82

42

CLAMP | MODEL X/Y/K1 This part replaces 09404-06432.

09404-06039

$1.73

43

SPRING | MODEL V This part replaces 09440-13020.

09440-13051

$9.85

43

SPRING, AIR VENT HOSE | MODEL W/X/Y/K1

09440-13051

$9.85

44

UNION, 3 WAY

09367-08004

$5.25

45

HOSE(5X8.2X600) | L:600->500 This part replaces 09359-50823-600.

09359-50824-600

$7.20
