Description

Price

1

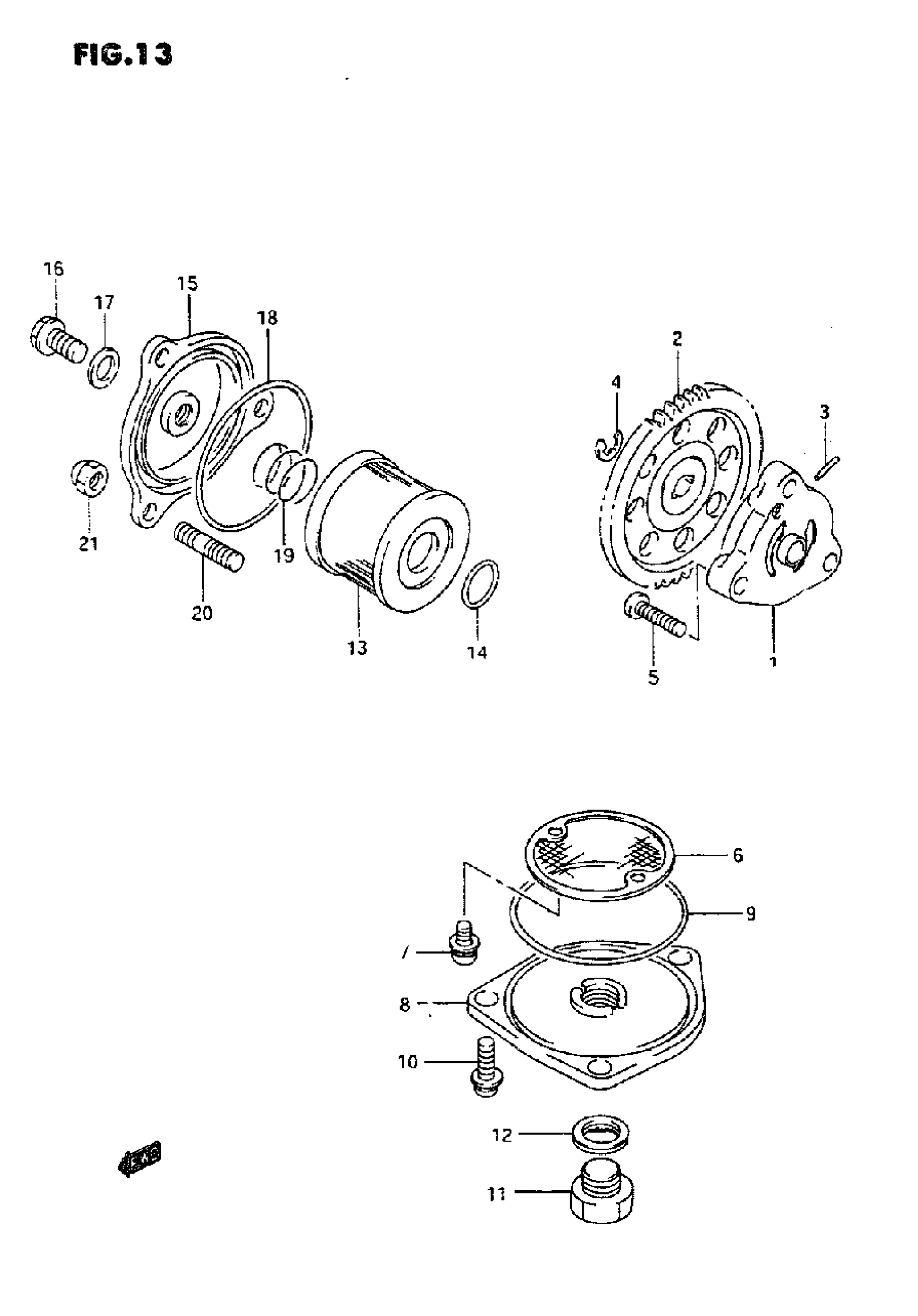

PUMP, ENGINE OIL | MODEL M/N/P This part replaces 16400-01411.

16400-01412

$176.20

1

PUMP, ENGINE OIL | MODEL R/S/T

16400-01412

$176.20

2

GEAR, DRIVEN (NT:47)

16331-20B00

$95.63

3

PIN

09261-02008

$1.48

4

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.46

5

SCREW | MODEL M/N/P

02112-06207

$1.83

5

SCREW | MODEL R/S/T This part replaces 02112-06203.

02112-0620A

$1.49

6

STRAINER, ENGINE OIL

16520-05202

$5.71

7

SCREW | MODEL M/N/P This part replaces 02112-75126.

02112-7512A

$2.53

7

SCREW | MODEL R/S/T This part replaces 02112-75123.

02112-7512A

$2.53

8

CAP, OIL STR

16523-05200

$14.04

9

.O RING (D:2.4,ID:60.5)

09280-60005

$2.95

10

BOLT | MODEL M/N/P

01547-06207

$2.09

10

..BOLT | MODEL R/S/T This part replaces 01547-06203.

01547-0620B

$2.50

11

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.86

12

GASKET | MODEL M/N/P/R

09168-14004

$1.69

12

GASKET | MODEL S/T

09168-14002

$2.83

13

FILTER ASSY, ENG OIL

16510-25C00

$7.14

14

O RING (D:1.9, ID:13)

09280-13004

$2.25

15

CAP, OIL FILTER

16512-22A00

$25.18

16

BOLT (8X12) | MODEL M/N/P This part replaces 01517-08125.

01550-0812A

$2.38

16

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

$2.38

17

GASKET (8.2X14X1.6)

09168-08015

$2.80

18

O RING (D:2.4, ID:53.6)

09280-54002

$5.77

19

SPRING | MODEL M/N/P/R This part replaces 48281-85000.

09440-18002

$1.13

19

SPRING | MODEL S/T
