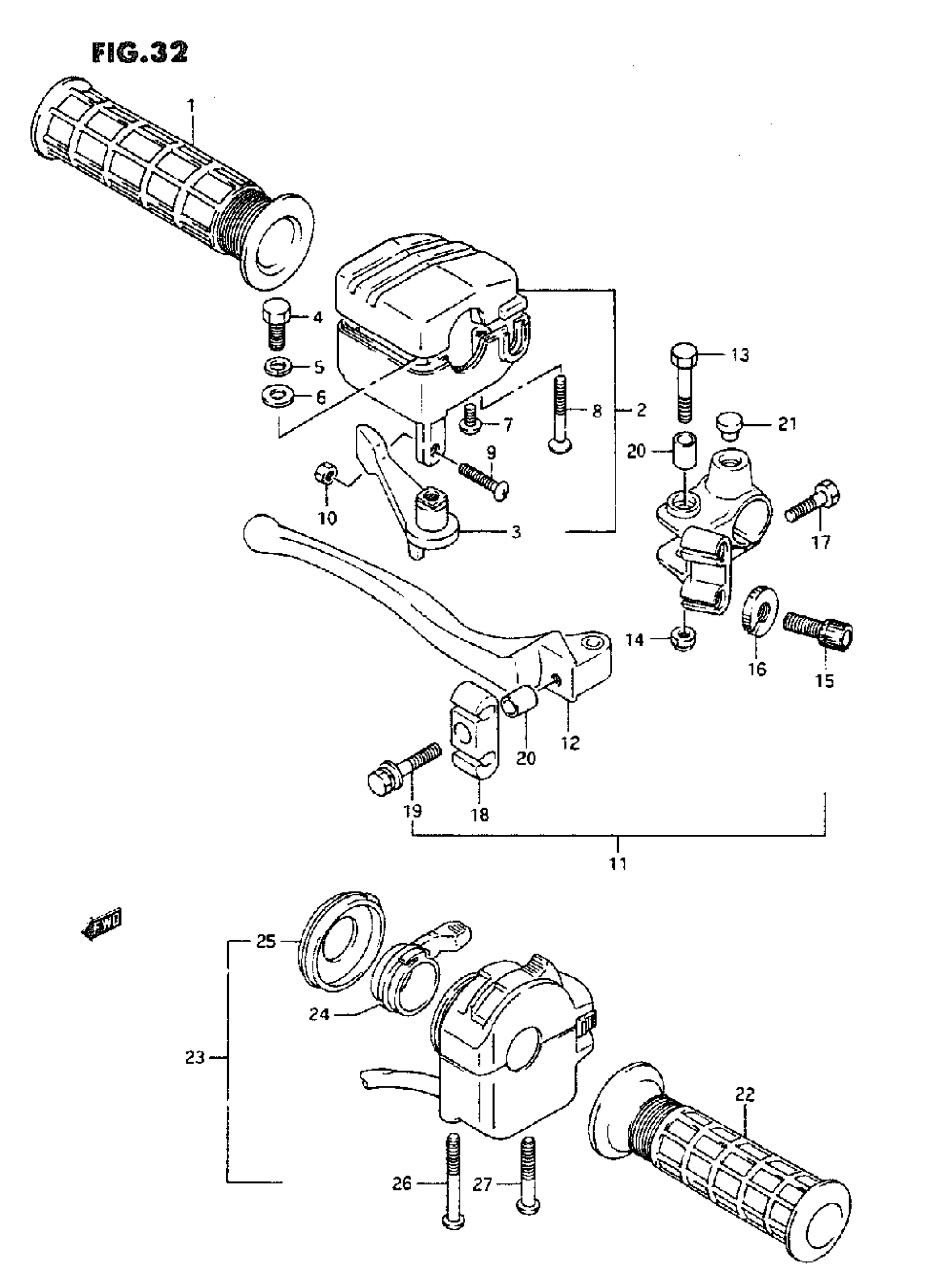

Suzuki LT-F160 (1995) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP (BLACK) | MODEL M/N/P This part replaces 57211-22AA1-291.

57211-22A01-291

$11.42

1

GRIP (BLACK) | MODEL R/S/T

57211-22A01-291

$11.42

2

CASE ASSY, THROTTLE This part replaces 57100-19B02.

57100-39DB0

$114.20

3

LEVER

57151-24301

$12.95

4

BOLT | MODEL M/N/P

01500-06167

$1.97

4

BOLT | MODEL R/S/T This part replaces 01500-06163.

01500-0616A

$1.78

5

LOCK WASHER | MODEL M/N/P

08321-01067

$2.13

5

LOCK WASHER | MODEL R/S/T This part replaces 08321-01063.

08321-0106A

$1.84

6

WASHER

09160-06019

$1.49

7

SCREW | MODEL M/N/P

02112-05127

$1.97

7

SCREW | MODEL R/S/T This part replaces 02112-05123.

02112-0512A

$1.49

8

SCREW

02132-05307

$1.50

9

SCREW (5X25)

09125-05066

$1.65

10

.NUT This part replaces 08310-22055.

09140-05006

$2.19

11

LEVER ASSY, BRAKE

57300-02C00

Unavailable

12

LEVER

57311-02C00

$49.63

13

BOLT | MODEL M/N/P This part replaces 01107-06305.

01500-0630A

$2.19

13

BOLT | MODEL R/S/T This part replaces 01500-06303.

01500-0630A

$2.19

14

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

15

ADJUSTER This part replaces 57441-05A00.

57441-05A01

$7.15

16

NUT,CABLE ADJUS This part replaces 57442-05A00.

57442-05A01

$8.86

17

BOLT This part replaces 01117-06205.

01550-0620A

$1.97

18

EQUALIZER

57313-02C00

$22.52

19

BOLT | MODEL M/N/P/R This part replaces 01177-06305.

01580-0630A

$3.40

19

BOLT | MODEL S/T This part replaces 01580-06303.

01580-0630A

$3.40

20

SPACER

57623-24B00

$4.52

21

PLUG

09250-06005

$2.15

22

GRIP (BLACK) | MODEL M/N/P This part replaces 57211-22AA1-291.

57211-22A01-291

$11.42

22

GRIP (BLACK) | MODEL R/S/T

57211-22A01-291

$11.42

23

SWITCH ASSY,HAN This part replaces 37400-02C00.

37400-02C01

Unavailable

24

LEVER, CHOKE

37571-19B01

$12.15

25

COVER, CHOKE

37576-19B01

$6.79

26

SCREW | MODEL M/N/P This part replaces 02112-05458.

02112-05457

$1.86

26

SCREW | MODEL R/S/T

02112-05457

$1.86

27

SCREW | MODEL M/N/P This part replaces 02112-05408.

02112-05407

$2.06

27

SCREW | MODEL R/S/T

02112-05407

$2.06
