1995 Suzuki LT-F160 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 1995 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

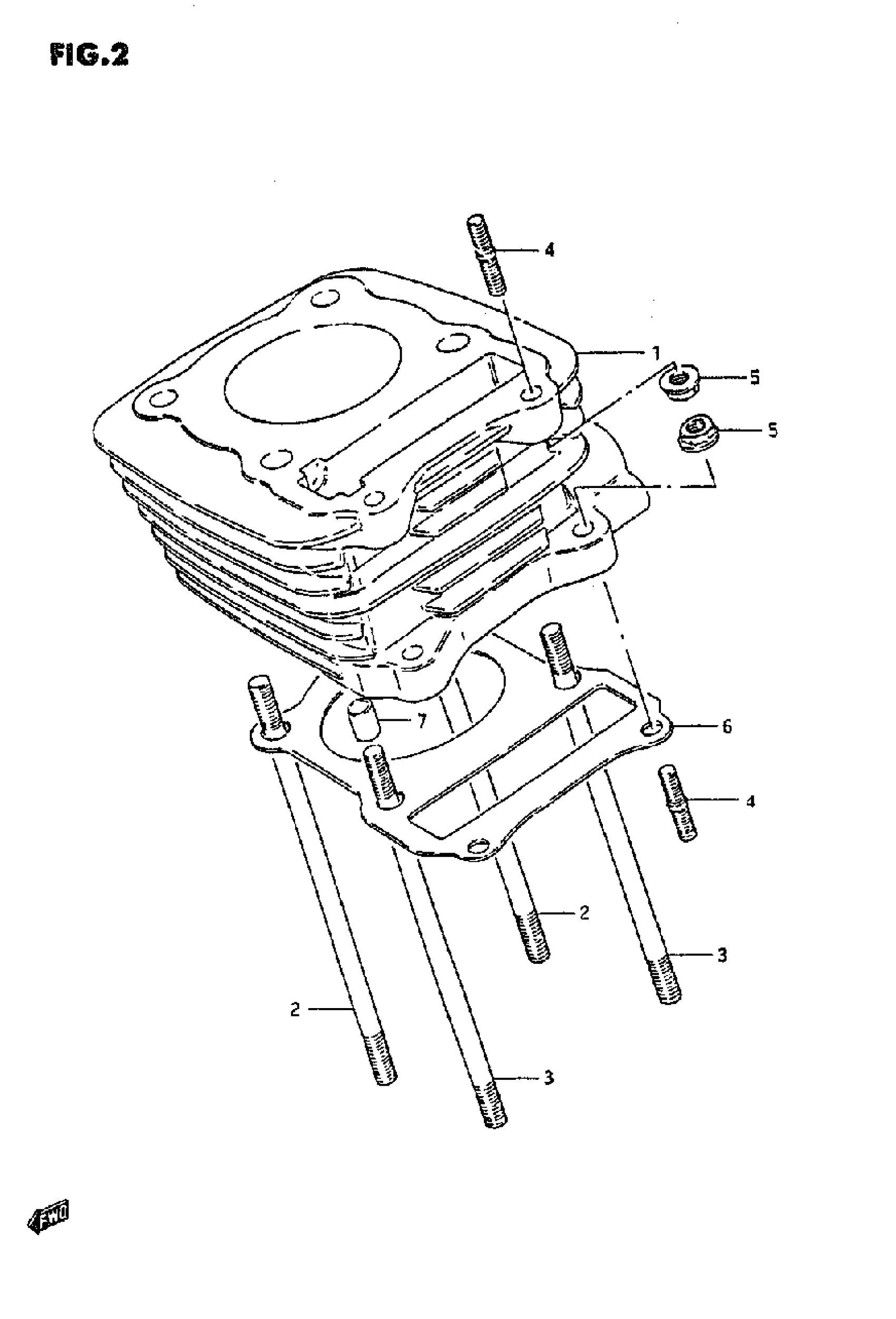

1995 Suzuki LT-F160 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

11210-02C00-0F0

1
Out of stock

2

STUD BOLT (L:147)

09108-08170

2
Out of stock

3

STUD BOLT (L:142)

09108-08222

2
Out of stock

4

STUD BOLT This part replaces 01421-06208.

01421-0620A

4
Out of stock

5

NUT | MODEL M/N/P This part replaces 09159-06017.

08319-31067

4
Out of stock

5

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

4
Out of stock

6

GASKET, CYLINDER | MODEL M/N/P/R This part replaces 11241-02C10.

11241-24402

1
Out of stock

6

GASKET, CYLINDER | MODEL S/T

11241-24402

1
Out of stock

7

PIN

04211-11149

2
Out of stock
