1995 Suzuki LT-F160 Crankcase Cover Diagram

← All diagrams

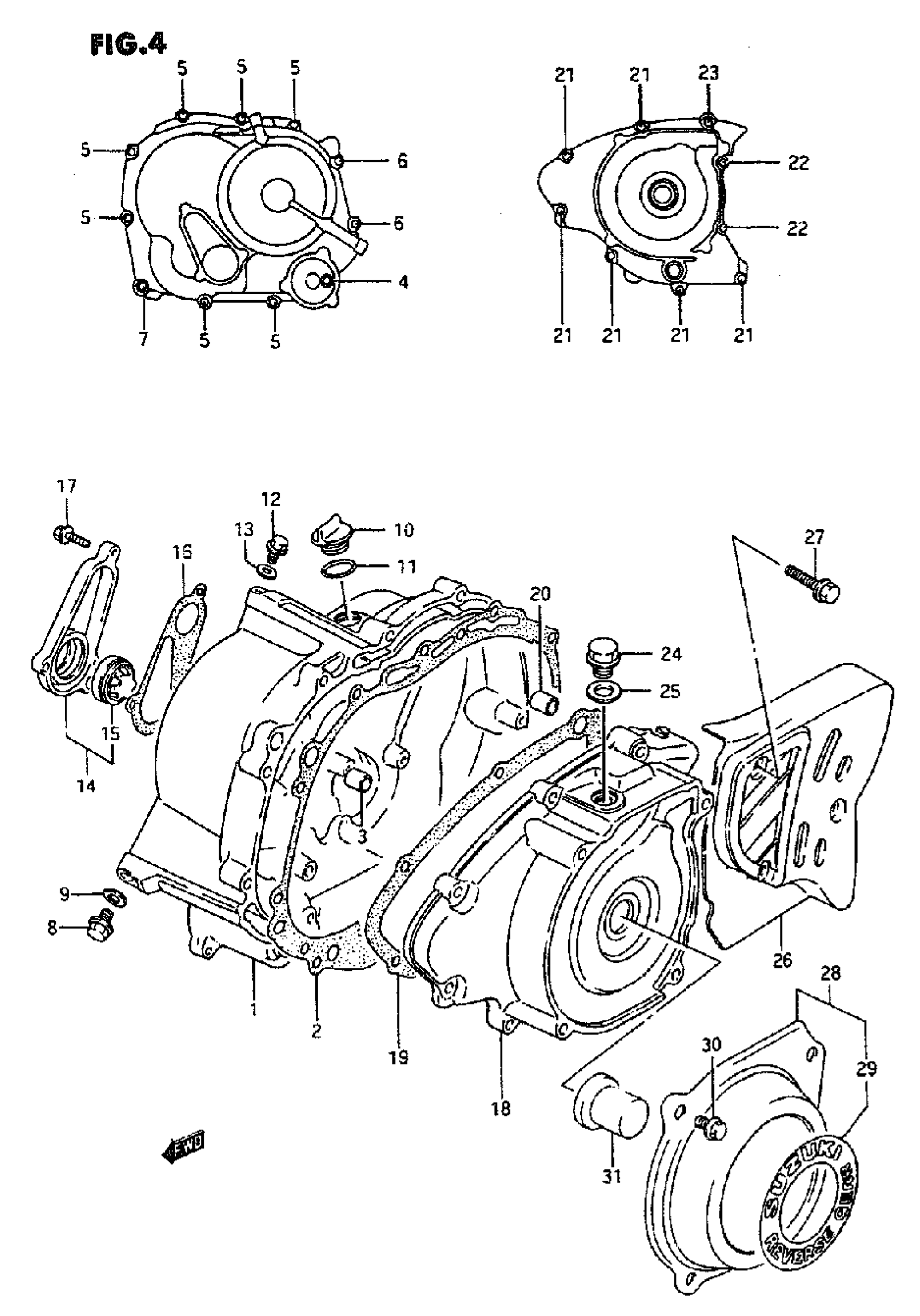

Find the part on the Crankcase Cover diagram for your 1995 Suzuki LT-F160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F160 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11341-35B00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-02C10

1
Out of stock

3

PIN | MODEL M/N/P/R This part replaces 09206-13001.

04211-13189

2
Out of stock

3

PIN | MODEL S/T

04211-13189

2
Out of stock

4

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

1
Out of stock

4

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

1
Out of stock

5

BOLT, WATER PUMP | MODEL M/N/P This part replaces 01547-06354.

01547-0635B

7
Out of stock

5

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

7
Out of stock

6

BOLT (6X45) | MODEL M/N/P This part replaces 09103-06013.

09103-06165

2
Out of stock

6

BOLT (6X45) | MODEL R/S/T

09103-06165

2
Out of stock

7

BOLT | MODEL M/N/P This part replaces 01547-06555.

01547-0655B

1
Out of stock

7

BOLT | MODEL R/S/T This part replaces 01547-06553.

01547-0655B

1
Out of stock

8

BOLT (8X12) | MODEL M/N/P This part replaces 01517-08125.

01550-0812A

1
Out of stock

8

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

1
Out of stock

9

GASKET

09168-08015

1
Out of stock

10

PLUG (20X10) This part replaces 09259-20013.

09259-20019

1
Out of stock

11

O RING

09280-17003

1
Out of stock

12

BOLT | MODEL M/N/P This part replaces 01517-06105.

01550-0610A

1
Out of stock

12

BOLT | MODEL R/S/T This part replaces 01550-06103.

01550-0610A

1
Out of stock

13

GASKET | MODEL M/N/P/R

09168-06023

1
Out of stock

13

GASKET | MODEL S/T

09168-06024

1
Out of stock

14

CAP, CLUTCH RELEASE ADJUST

11410-18A10

1
Out of stock

15

LENS, OIL LEVEL

11971-33210

1
Out of stock

16

GASKET,CL RLSE This part replaces 11495-02C10.

11495-02C11

1
Out of stock

17

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

3
Out of stock

17

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

3
Out of stock

18

COVER, MAGNETO

11351-35B01

1
Out of stock

19

GASKET, MAGNETO COVER

11483-02C10

1
Out of stock

20

PIN | MODEL M/N/P/R This part replaces 09206-13001.

04211-13189

2
Out of stock

20

PIN | MODEL S/T

04211-13189

2
Out of stock

21

BOLT, FINAL GEAR CASE COVER | MODEL M/N/P This part replaces 01547-06254.

01547-0625B

6
Out of stock

21

BOLT, FINAL GEAR CASE COVER | MODEL R/S/T This part replaces 01547-06253.

01547-0625B

6
Out of stock

22

BOLT, WATER PUMP | MODEL M/N/P This part replaces 01547-06354.

01547-0635B

2
Out of stock

22

BOLT, WATER PUMP | MODEL R/S/T This part replaces 01547-06353.

01547-0635B

2
Out of stock

23

BOLT | MODEL M/N/P This part replaces 01547-06454.

01547-0645B

1
Out of stock

23

BOLT | MODEL R/S/T This part replaces 01547-06453.

01547-0645B

1
Out of stock

24

PLUG, T.D.C

09247-14015

1
Out of stock

25

GASKET | MODEL M/N/P/R

09168-14004

1
Out of stock

25

GASKET | MODEL S/T

09168-14002

1
Out of stock

26

COVER, ENGINE SPROCKET

11360-02C00

1
Out of stock

27

BOLT | MODEL M/N/P This part replaces 01547-06304.

01547-06307

3
Out of stock

27

BOLT, FINAL GEAR CASE | MODEL R/S/T This part replaces 01547-06303.

01547-0630B

3
Out of stock

28

COVER, RECOIL

18110-02C00

1
Out of stock

29

EMBLEM This part replaces 68398-244A0-97V.

68398-24410

1
Out of stock

30

BOLT, EXHAUST DRAIN | MODEL M/N/P This part replaces 01547-06125.

01547-06127

4
Out of stock

30

BOLT | MODEL R/S/T This part replaces 01547-06123.

01547-0612B

4
Out of stock

31

PLUG

12358-02C00

1
Out of stock
