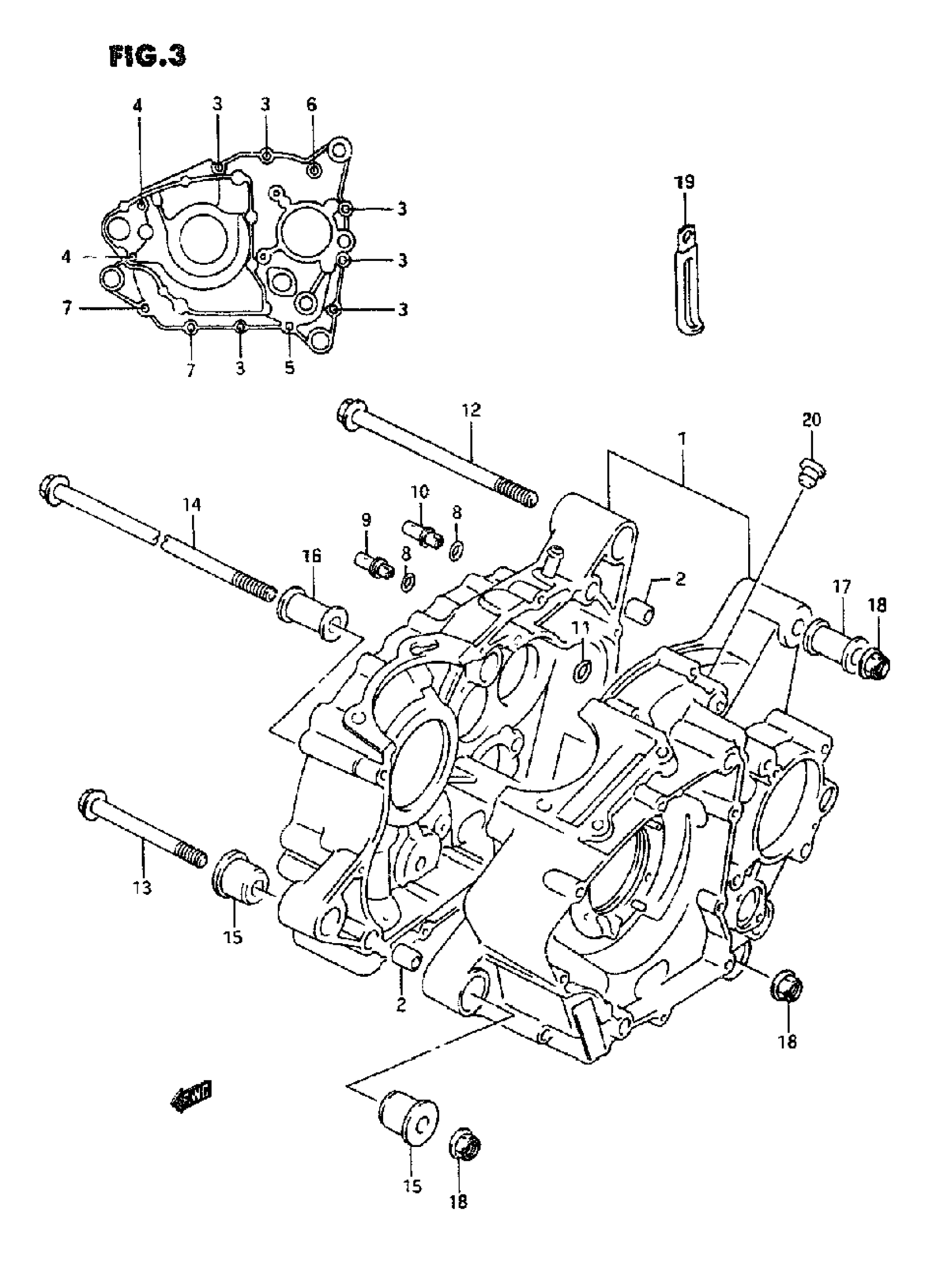

Suzuki LT-F160 (1995) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-35861

Unavailable

2

PIN | MODEL M/N/P/R This part replaces 09206-13001.

04211-13189

$2.19

2

PIN | MODEL S

04211-11169

$1.78

2

PIN | MODEL T

04211-13189

$2.19

3

BOLT | MODEL M/N/P

01547-06407

$2.32

3

BOLT | MODEL R/S/T This part replaces 01547-06403.

01547-0640B

$2.75

4

BOLT | MODEL M/N/P

01547-06507

$2.41

4

BOLT | MODEL R/S/T This part replaces 01547-06503.

01547-0650B

$2.75

5

BOLT | MODEL M/N/P

01547-06607

$3.18

5

BOLT | MODEL R/S/T This part replaces 01547-06603.

01547-0660B

$3.18

6

BOLT,CARB | MODEL M/N/P This part replaces 01547-06757.

09103-06522

$2.95

6

BOLT | MODEL R/S/T This part replaces 01547-06753.

01547-0675B

$3.93

7

BOLT | MODEL M/N/P

01547-06857

$3.30

7

BOLT, CRANKCASE (6X85) | MODEL R/S/T This part replaces 01547-06853.

01547-0685B

$4.00

8

O RING, OIL GALLERY JET

09280-04004

$1.91

9

JET, OIL GALLERY

09493-28010

$16.57

10

JET, OIL GALLERY

09493-32006

$16.87

11

O RING (D:1.9,ID:9.8) | MODEL M/N/P This part replaces 09280-10010.

09280-10016

$3.37

11

O RING, OIL GALLERY | MODEL R

09280-10016

$3.37

11

O RING (D:1.9,ID:9.8) | MODEL S/T This part replaces 09280-10015.

09280-10016

$3.37

12

BOLT (10X195) | MODEL M/N/P/R This part replaces 09103-10072.

09103-10118

$11.56

12

BOLT (10XL95) | MODEL S/T

09103-10118

$11.56

13

BOLT (10X90)

09103-10061

$6.43

14

BOLT,10X230 This part replaces 09103-10238.

09103-10238-XC0

$20.10

15

SPACER

11621-35B00

Unavailable

16

SPACER (L:60)

11610-02CA0

Unavailable

17

SPACER (L:65)

11610-49300

$18.02

18

NUT This part replaces 08319-31105.

08319-3110A

$2.73

19

CLAMP | MODEL M/N/P/R This part replaces 09404-06402.

09404-06039

$1.74

19

CLAMP, CARB. OVER FLOW HOSE | MODEL S/T

09404-06429

$1.83

20

CAP | -E.NO.124518

09250-09006

Unavailable

20

CAP | E.NO.124519-132514

09250-11003

$2.50
