Description

Price

1

CAM SHAFT | MODEL M/N/P This part replaces 12711-02C00.

12711-02C10

Unavailable

1

CAM SHAFT | MODEL R/S/T

12711-02C10

Unavailable

2

SPROCKET, CAMSHAFT (NT:32)

12741-05201

$22.98

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER | MODEL M/N/P/R This part replaces 12840-25C00.

12850-25C00

$43.16

7

ARM ASSY, VALVE ROCKER | MODEL S/T

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

11

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

12

WASHER

09164-12021

$2.03

13

GASKET

09168-06023

$2.35

14

BOLT | MODEL M/N/P

01550-06257

$2.30

14

BOLT | MODEL R/S/T This part replaces 01550-06253.

01550-0625A

$1.97

15

VALVE, INTAKE

12911-02C00

$55.23

16

VALVE, EXHAUST

12912-02C00

$96.37

17

SPRING, VALVE

12921-02C00

$15.42

18

RETAINER, SPRING This part replaces 12931-19B00.

12931-19B01

$11.95

19

COTTER, VALVE

12932-24400

$1.94

20

SEAT, SPRING

12933-19B00

$8.30

21

OIL SEAL

09289-05015

$6.70

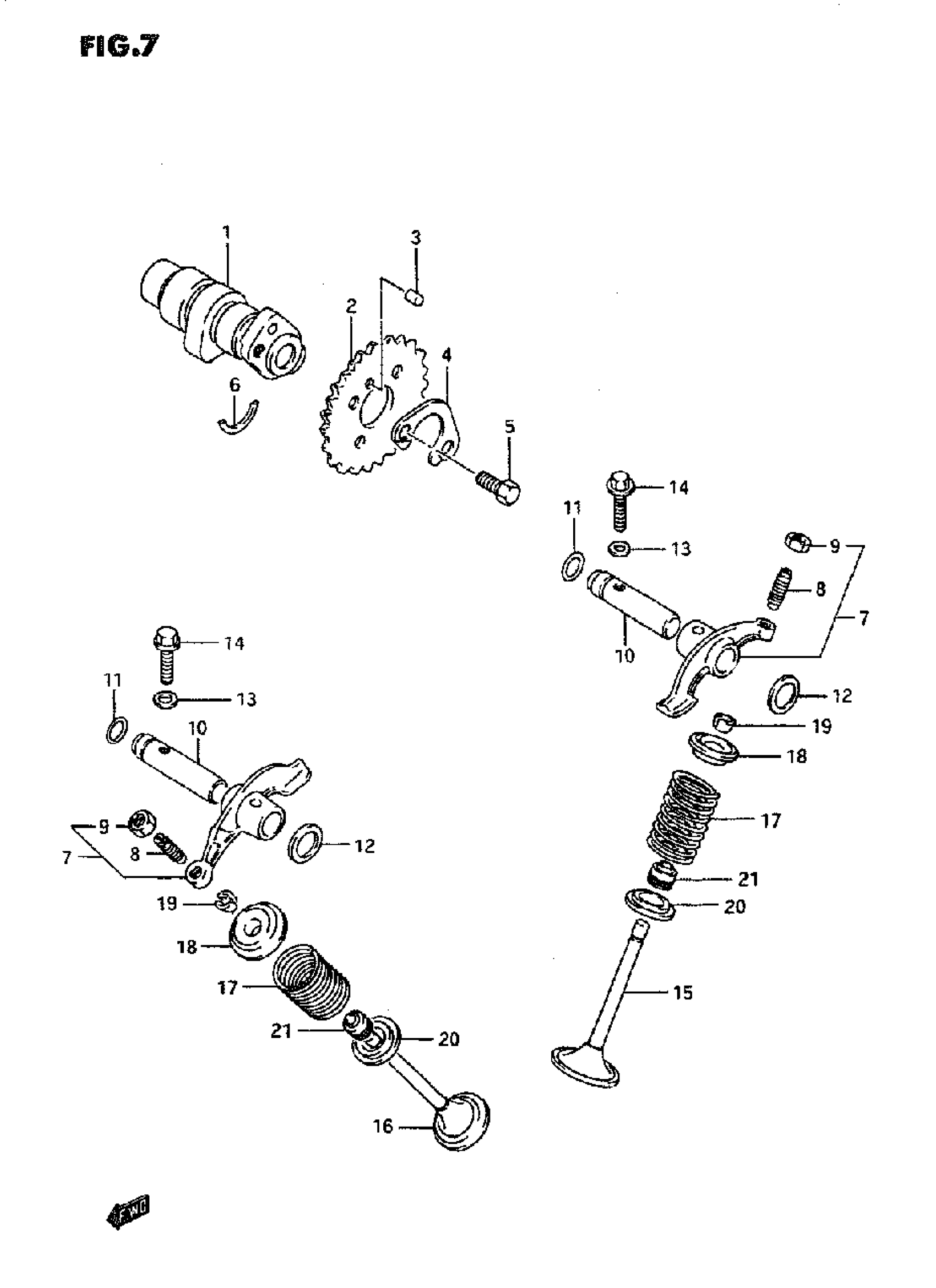

Suzuki LT-F160 (1995) CAM SHAFT - VALVE Diagram
