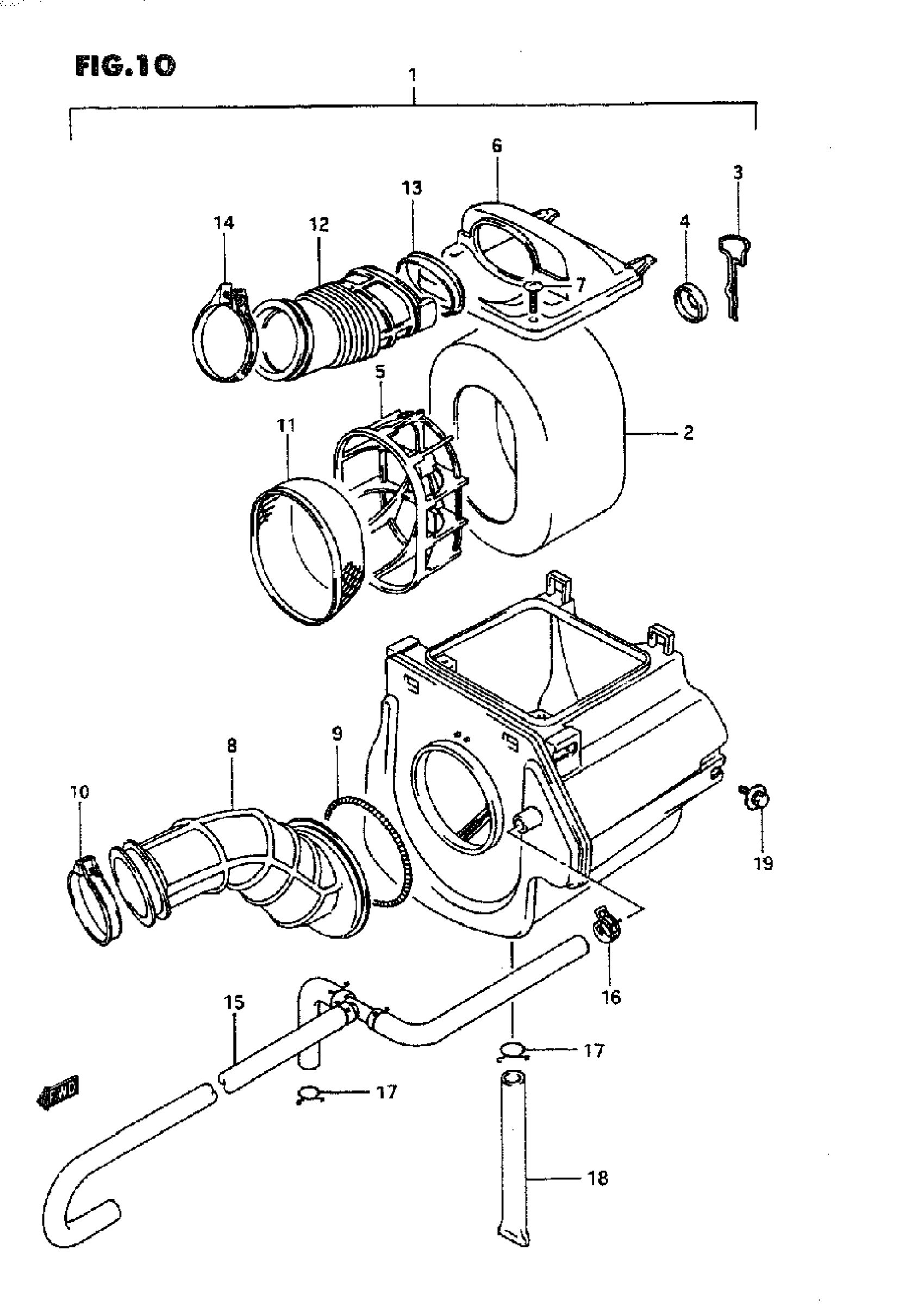

Suzuki LT-F160 (1995) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | MODEL M/N/P This part replaces 13700-02C00.

13700-02C02

$294.22

1

CLEANER ASSY,AI | MODEL R/S/T This part replaces 13700-02C01.

13700-02C02

$294.22

2

FILTER

13780-02C00

$32.56

3

SNAP PIN

13823-20400

$2.95

4

WASHER

13796-20400

$2.86

5

HOLDER, FILTER

13791-02C00

$13.35

6

CAP

13740-02C00

$27.55

7

SCREW, REAR | MODEL M/N/P/R/S This part replaces 02142-05204.

02142-0520B

$1.82

7

SCREW, REAR | MODEL T This part replaces 02142-05203.

02142-0520B

$1.82

8

TUBE,OUTLET This part replaces 13881-02C00.

13881-02C01

$38.51

9

CLAMP

13826-38300

$3.41

10

CLAMP

09402-46208

$4.32

11

TRAP

13810-02C00

$34.47

12

TUBE, INLET JOINT

13891-02C00

$23.90

13

RING

13898-02C00

$6.15

14

CLAMP

09402-48208

$4.32

15

TUBE, BREATHER

13850-02C00

$28.58

16

CLIP | MODEL M/N/P/R This part replaces 13824-43400.

09401-14404

$2.38

16

CLIP | MODEL S/T This part replaces 09401-14402.

09401-14404

$2.38

17

CLIP

09401-14301

$2.17

18

TUBE, DRAIN, B | MODEL M/N/P/R This part replaces 13872-19B00.

13872-14D00

$21.62

18

TUBE,DRAIN | MODEL S/T This part replaces 13870-11458.

13870-11459

$15.27

19

BOLT (6X16)

09118-06017

$2.21
