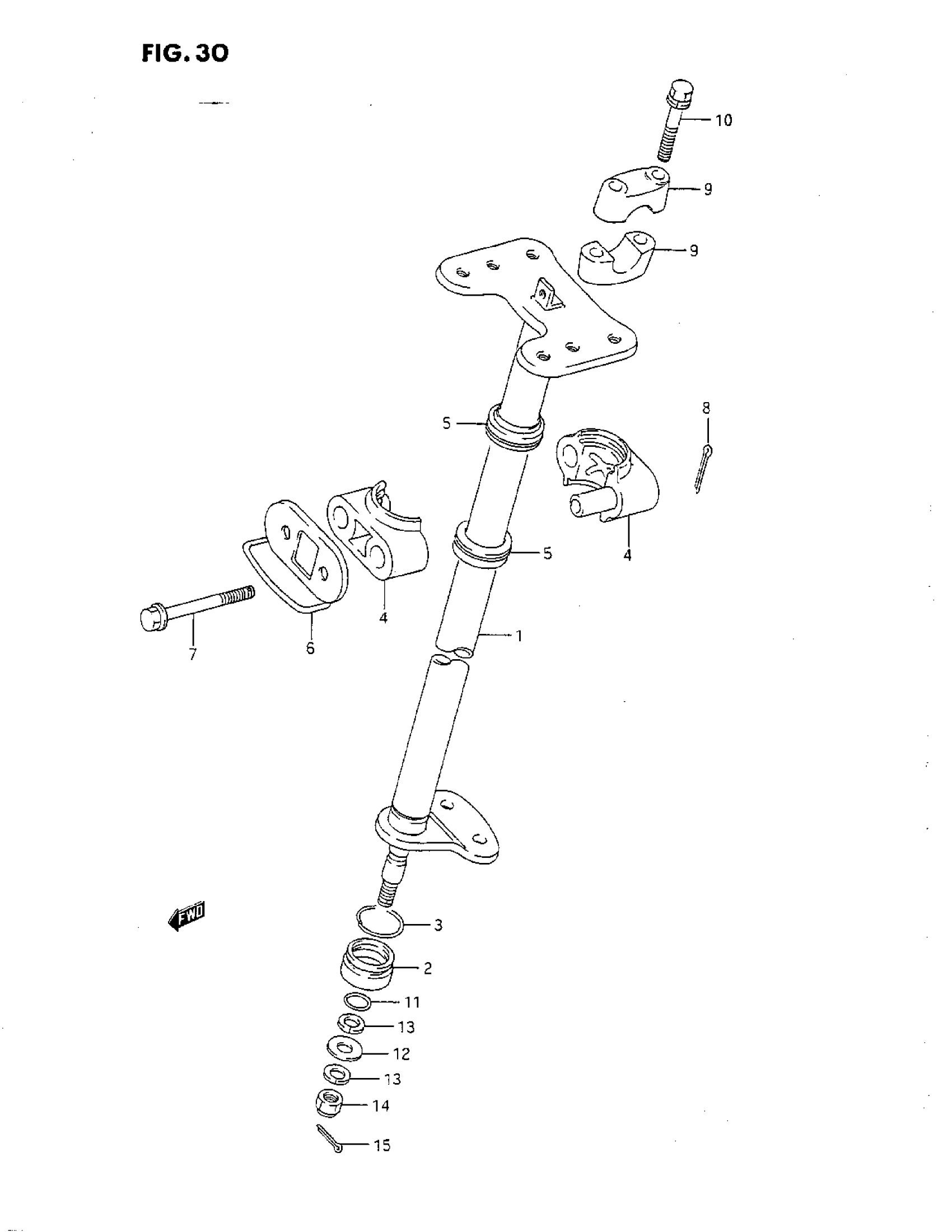

Suzuki LT-F160 (1993) STEERING Diagram

#

Description
Price

1

SHAFT, STEERING

51650-02C00

Unavailable

2

DUST SEAL, STEERING SHAFT

51662-18900

$6.93

3

CLIP, DUST SEAL

09380-31002

$2.65

4

HOLDER,STEERING SHAFT This part replaces 51670-245A0.

51670-24500

$21.72

5

DUST SEAL, STEERING

51678-24500

$6.25

6

REINFORCEMENT

51680-02C00

Unavailable

7

BOLT This part replaces 09103-081B6.

09103-08116

Unavailable

8

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

9

HOLDER, HANDLE, UPPER This part replaces 56211-272A0-291.

56211-27200-291

$20.22

10

BOLT | MODEL M/N/P This part replaces 01137-08555.

01570-0855B

$1.41

10

BOLT | MODEL R This part replaces 01570-08553.

01570-0855B

$1.41

11

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.30

12

WASHER This part replaces 09160-100G8.

09160-10128-XC0

$2.64

13

LOCK WASHER | MODEL M/N/P This part replaces 08321-21104.

08321-0110A

$1.86

13

LOCK WASHER | MODEL R

09162-10008

$2.80

14

NUT This part replaces 09159-10036.

09159-10027

$2.84

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22
