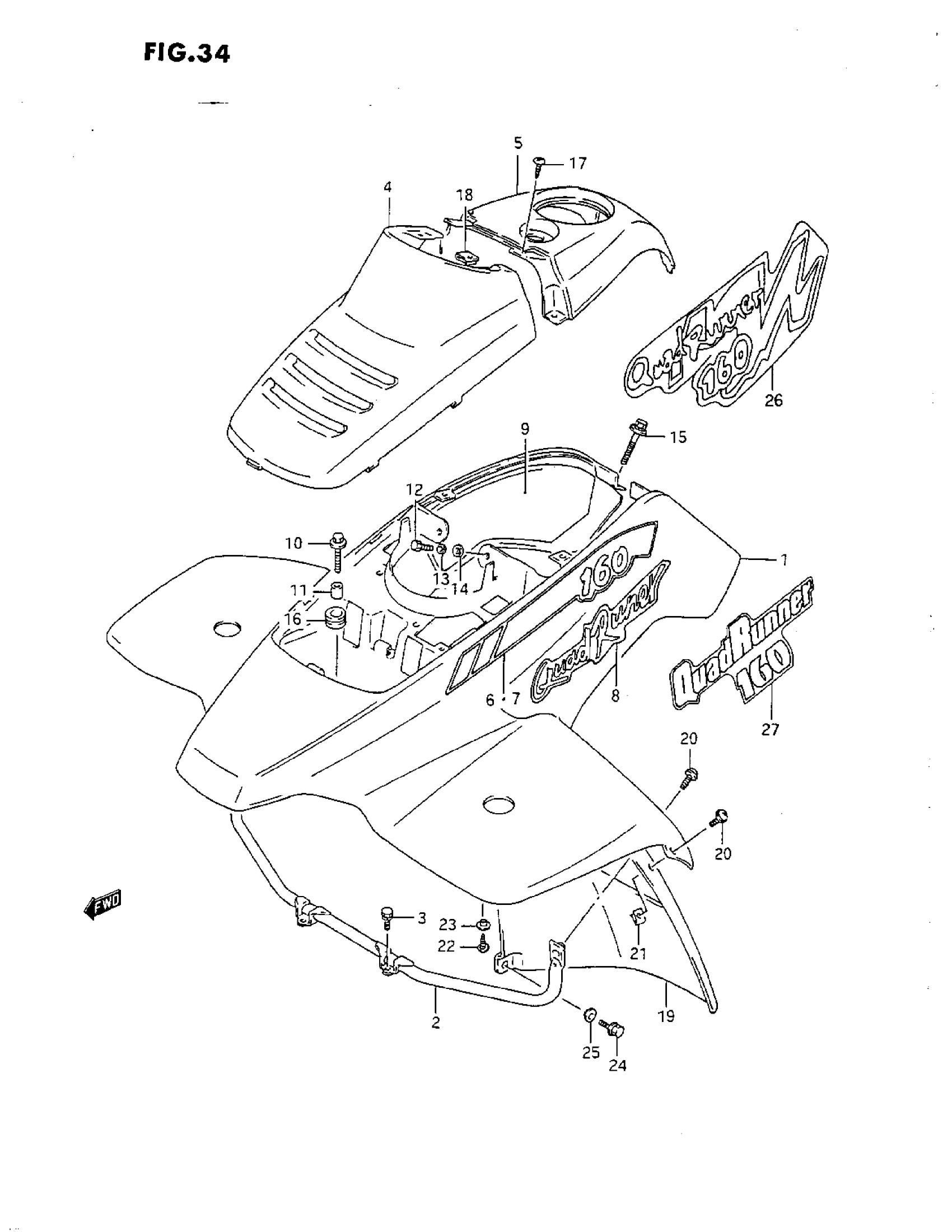

Suzuki LT-F160 (1993) FRONT FENDER Diagram

#

Description
Price

1

FENDER, FRONT CENTER (ORANGE) | MODEL M This part replaces 53111-02C10-25G.

53111-02C00-25G

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL N/P/R This part replaces 53111-02C10-0VT.

53111-02C11-0VT

Unavailable

2

BRACE, FRONT FENDER

53210-02C00

Unavailable

3

BOLT | MODEL M/N/P This part replaces 01944-06125.

01570-0612A

$2.87

3

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

$2.87

4

FENDER, CENTER FRONT (BLUE) | MODEL M

53118-02C00-19F

Unavailable

4

FENDER, CENTER FRONT (BLACK) | MODEL N/P/R

53118-02C00-291

$111.05

5

FENDER, CENTER REAR (BLUE) | MODEL M

53119-02C00-19F

Unavailable

5

FENDER, CENTER REAR (BLACK) | MODEL N/P/R

53119-02C00-291

$94.15

6

TAPE, FENDER RH | MODEL M

68155-02C50-3MA

Unavailable

7

TAPE, FENDER LH | MODEL M

68156-02C50-3MA

Unavailable

8

EMBLEM, Q.R | MODEL M

68151-02C10-0UV

Unavailable

9

CUSHION, RH

53145-02C00

Unavailable

9

CUSHION, LH

53146-02C00

Unavailable

10

BOLT, FENDER FRONT

09116-06025

$2.28

11

SPACER This part replaces 09180-061C0.

09180-06120

$2.31

12

BOLT, FENDER CENTER | MODEL M

01500-06257

$1.97

12

BOLT, FENDER CENTER | MODEL N/P/R

09118-06020

$3.58

13

LOCK WASHER | MODEL M This part replaces 08321-31063.

08321-0106A

$1.83

14

WASHER | MODEL M This part replaces 09160-06031.

09160-06125

$1.89

15

BOLT, FENDER REAR | MODEL M/N/P This part replaces 01174-06358.

01580-06357

$4.35

15

BOLT | MODEL R This part replaces 01830-06353.

01580-0635B

$4.35

16

CUSHION This part replaces 09320-110B5.

09320-11008

$2.58

17

SCREW | MODEL M/N/P This part replaces 03241-15125.

03241-1512B

$2.38

17

SCREW | MODEL R This part replaces 03241-15123.

03241-1512B

$2.38

18

NUT

09148-05019

$1.88

19

MUD FLAP, RH

53311-02C00

$167.64

19

MUD FLAP, LH

53312-02C00

$167.64

20

SCREW

09136-06004

$2.13

21

NUT This part replaces 09146-06001.

09146-06003

$2.13

22

SCREW | MODEL M This part replaces 03242-05129.

03241-0512A

$1.36

22

SCREW, UPPER | MODEL N/P/R This part replaces 09136-05012.

09136-05024

Unavailable

23

WASHER (5.5X18X1) | MODEL M This part replaces 09160-05003.

09160-05045

$1.95

24

BOLT | MODEL M/N/P This part replaces 01944-06125.

01570-0612A

$2.87

24

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

$2.87

25

WASHER

09169-06026

$2.00

26

TAPE, FRONT FENDER RH | MODEL N

68155-02C80-1JP

Unavailable

26

TAPE, FRONT FENDER LH | MODEL N

68156-02C80-1JP

Unavailable

26

TAPE, FRONT FENDER RH | MODEL P

68155-02C80-1TE

Unavailable

26

TAPE, FRONT FENDER LH | MODEL P

68156-02C80-1TE

Unavailable

27

EMBLEM, FRONT FENDER | MODEL R

68151-02C20-C2J

Unavailable
