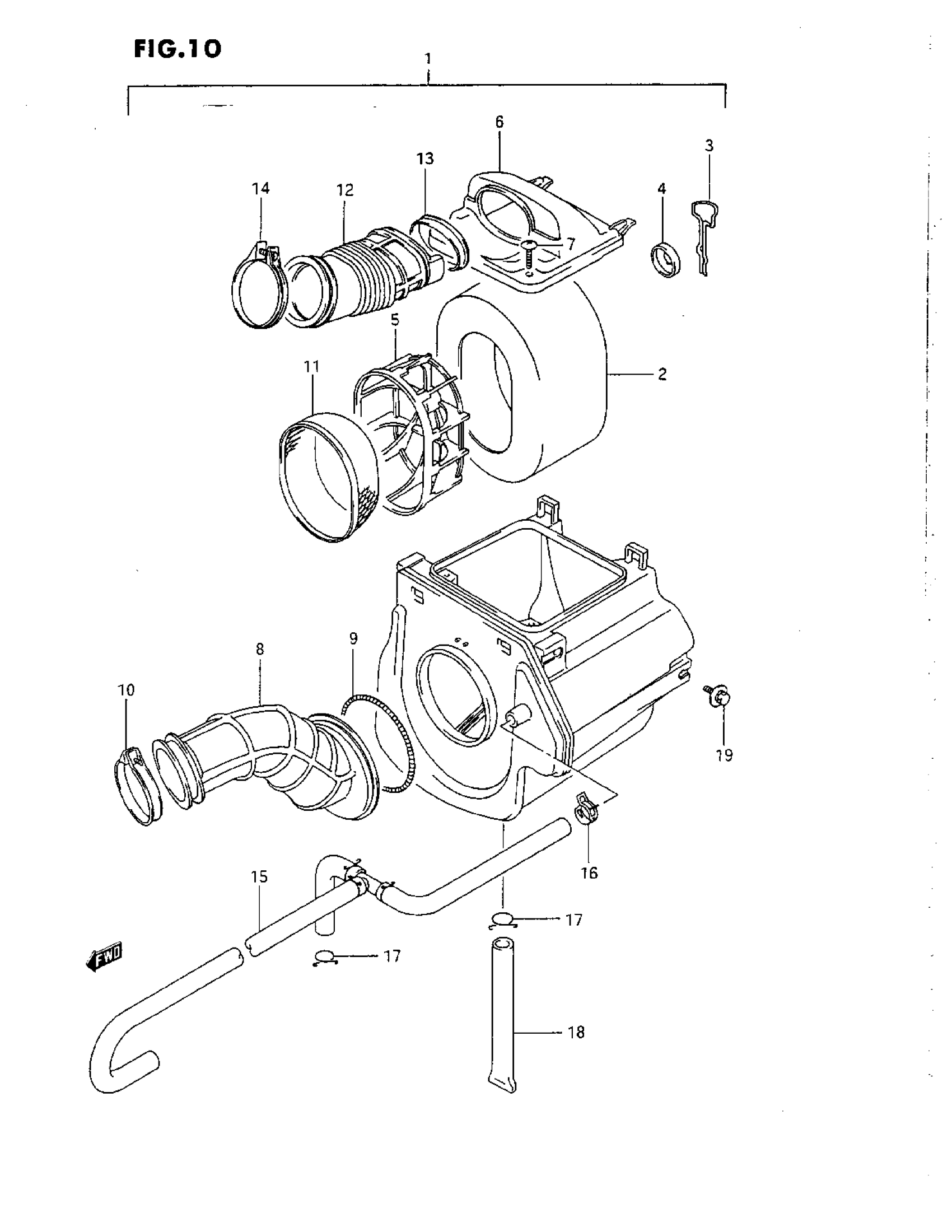

Suzuki LT-F160 (1993) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | MODEL M/N/P This part replaces 13700-02C00.

13700-02C02

$294.22

1

CLEANER ASSY,AI | MODEL R This part replaces 13700-02C01.

13700-02C02

$294.22

2

FILTER

13780-02C00

$32.56

3

SNAP PIN

13823-20400

$2.95

4

WASHER

13796-20400

$2.86

5

HOLDER, FILTER

13791-02C00

$13.35

6

CAP

13740-02C00

$27.55

7

SCREW, REAR This part replaces 02142-05204.

02142-0520B

$1.82

8

TUBE,OUTLET This part replaces 13881-02C00.

13881-02C01

$38.51

9

CLAMP

13826-38300

$3.41

10

CLAMP

09402-46208

$4.32

11

TRAP

13810-02C00

$25.55

12

TUBE, INLET JOINT

13891-02C00

$23.90

13

RING

13898-02C00

$6.15

14

CLAMP

09402-48208

$4.32

15

TUBE, BREATHER

13850-02C00

$28.58

16

CLIP This part replaces 13824-43400.

09401-14404

$2.87

17

CLIP

09401-14301

$2.17

18

TUBE, DRAIN, B This part replaces 13872-19B00.

13872-14D00

$21.62

19

BOLT (6X16)

09118-06017

$2.21
