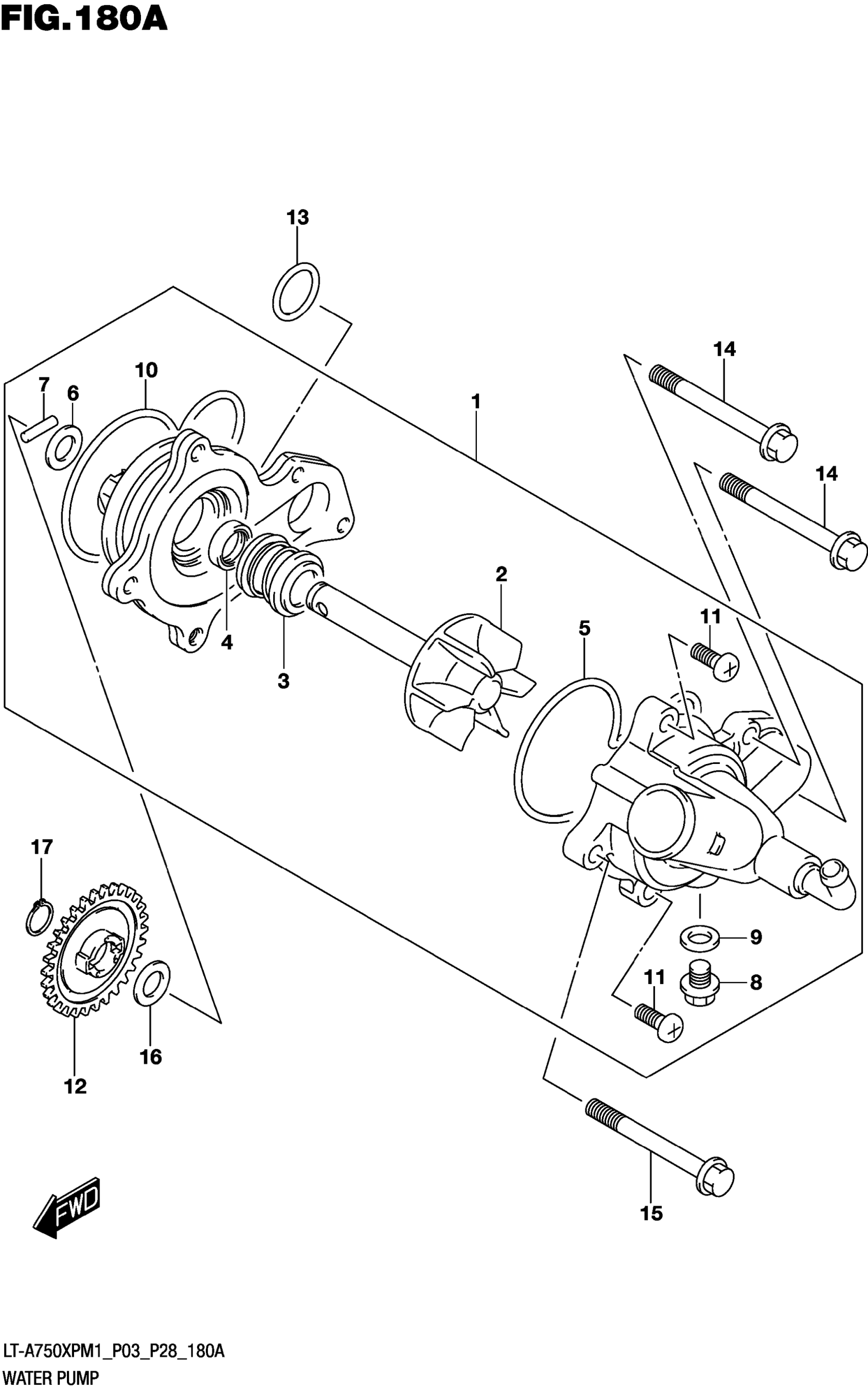

Suzuki LT-A750XPM1 (2021) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER

17400-31G11

$151.15

2

.IMPELLER

17491-31G00

$54.37

3

.SEAL,MECHANICAL

17470-02F11

$29.22

4

.SEAL,OIL (10X21X5)

17461-48G00

$13.23

5

.O RING

17418-31G00

$10.23

6

.WASHER

17432-07G00

$2.60

7

.PIN

17482-03G00

$2.63

8

.BOLT,DRAIN

17415-20920

$7.38

9

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

10

.O RING

17435-31G00

$20.43

11

.SCREW

02112-0616B

$2.12

12

GEAR,WATER PUMP DRIVEN (NT:23

17461-31G00

$31.90

13

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

14

BOLT

01547-0645A

$2.42

15

.BOLT

01547-0655A

$2.42

16

SHIM (10X18X0.5)

09181-10158

$1.97

17

CIRCLIP

08331-31109

$1.78
