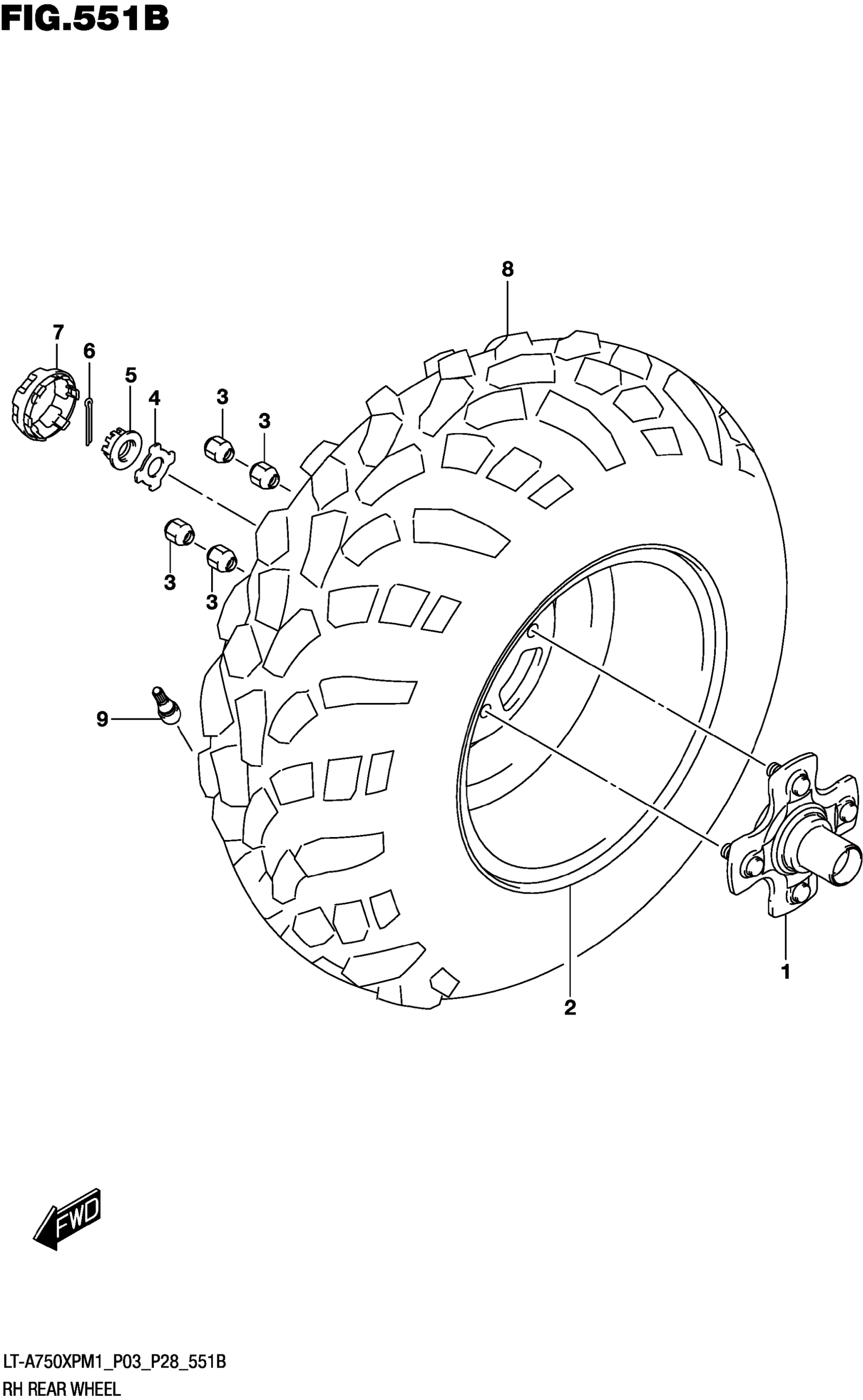

Suzuki LT-A750XPM1 (2021) RH REAR WHEEL (LT-A750XPZ) Diagram

Description

Price

HUB, REAR WHEEL

64110-31G10

$222.42

2-1

REAR WHEEL-ALUM | BODY COLOR:YT9,YLG,30H,QMA This part replaces 65311-34K00-291.

65311-34K00

$213.65

2-2

WHEEL,REAR | BODY COLOR:QTF,QTM This part replaces 65311-34K20-019.

65311-34K20

$269.42

NUT (H:23)

09159-10045

$6.42

WASHER, HUB

64723-03G00

$20.80

NUT

09141-20008

$18.05

04111-4035A

$1.49

7-1

CAP,WHEEL CENTER | BODY COLOR:YT9,YLG,30H,QMA

54725-34K00

$12.42

7-2

CAP,WHEEL CENTER | BODY COLOR:QTF,QTM

54725-34K20

$33.52

TIRE,REAR (AT25X10-12)

65110-31G30

$296.43

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85
