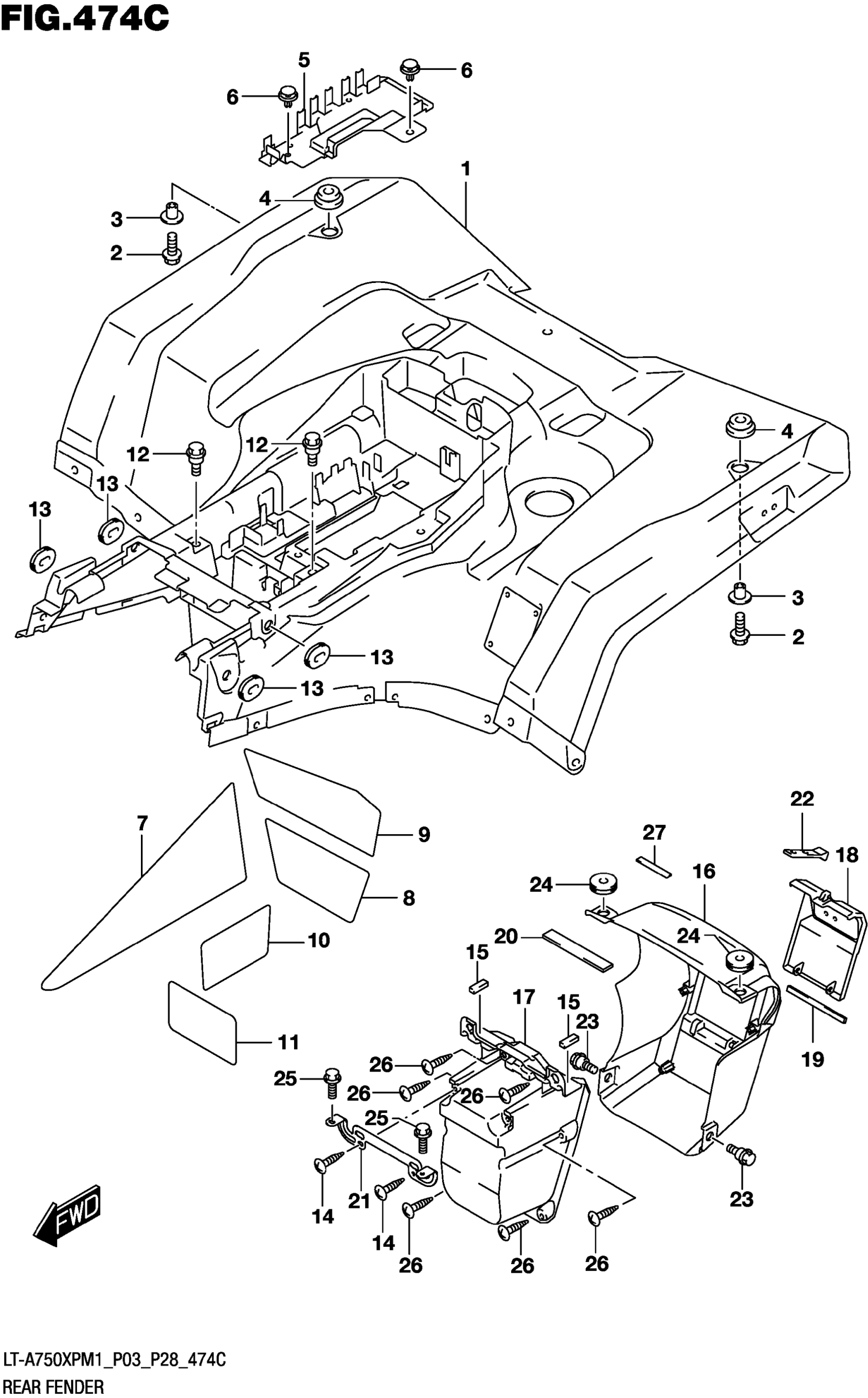

Suzuki LT-A750XPM1 (2021) REAR FENDER Diagram

#

Description
Price

1-1

FENDER, REAR (RED) | BODY COLOR:YT9 This part replaces 63111-34K00-YT9.

63111-34K01-YT9

$573.97

1-2

FENDER, REAR (GREEN) | BODY COLOR:YLG

63111-34K00-YLG

$573.97

1-3

FENDER, REAR (WHITE) | BODY COLOR:30H

63111-34K00-30H

$595.82

1-4

FENDER, REAR (KANATI) | BODY COLOR:QTM

63111-34K20-QTM

$1,125.62

1-5

FENDER, REAR (BRONZE) | BODY COLOR:QMA

63111-34K40-QMA

$860.93

1-6

FENDER,REAR | BODY COLOR:QTF This part replaces 63111-34K40-QTF.

63111-34K20-QTF

$902.37

2

BOLT (6X25)

01550-0625A

$1.97

3

WASHER (6.5X24X1.6)

09169-06074

$7.95

4

CUSHION (11.5X32X12.2)

09320-11021

$4.17

5

COVER, REAR FENDER

63112-34K00

$25.75

6

CLIP

09409-08008

$1.87

7

SHIELD, REAR FENDER

63122-34K00

$12.18

8

SHIELD, REAR FENDER

63123-34K00

$10.75

9

SHIELD, REAR FENDER

63124-34K00

$10.48

10

SHIELD, REAR FENDER

63127-34K00

$8.35

11

SHIELD, REAR FENDER

63128-34K00

$8.25

12

BOLT (6X13.5)

09111-06088

$2.03

13

CUSHION

09320-08029

$2.41

14

SCREW

03541-0620A

$2.45

15

CUSHION (10X30X6)

33652-47F00

$3.70

16

COVER, REAR This part replaces 63251-34K00.

63251-34K03

$20.58

17

BOX,INNER This part replaces 63252-34K00.

63252-34K01

$30.20

18

LID, OUTER

63253-34K01

$22.39

19

CUSHION, REAR COVER

63255-34K00

$1.50

20

CUSHION, REAR COMB NO.2

63256-34K00

$16.58

21

BRACKET, REAR COVER

63371-34K00

Unavailable

22

BAND, REAR BOX

93191-09F20

$12.65

23

BOLT (6X13.5)

09111-06088

$2.03

24

CUSHION (8x26x7)

09320-08018

$3.04

25

BOLT

01550-0612A

$1.97

26

SCREW

03541-0516A

$1.49

27

CUSHION (8X50X8)

47122-17K00

$2.14
