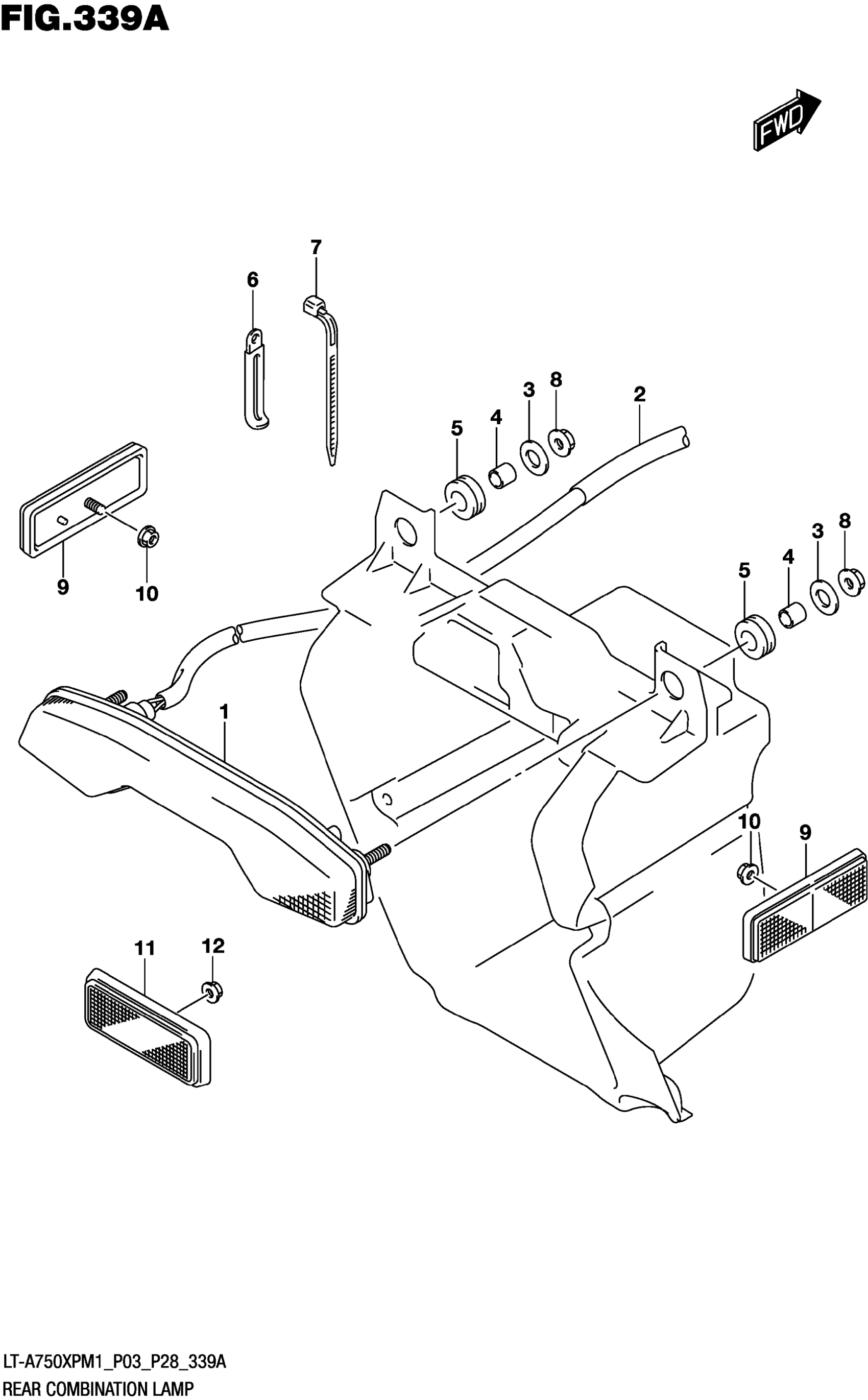

Suzuki LT-A750XPM1 (2021) REAR COMBINATION LAMP Diagram

#

Description

Price

1

LAMP ASSY, REAR COMBINATION

35710-45G10

$149.67

2

CUSHION, FENDER SIDE

53145-07GA0

$2.82

3

WASHER (6.5X20X1.2)

09160-06077

$1.91

4

SPACER (6.5X10X10)

09180-06310

$1.91

5

CUSHION

09320-10015

$2.54

6

CLAMP (L:45)

09404-06429

$1.83

7

CLAMP (L:165)

09407-18402

$2.19

8

NUT (6X12)

08316-1006A

$2.19

9

REFLECTOR ASSY,RR

35970-07F01

$20.88

10

NUT

08316-1005A

$2.19

11

REFLECTOR ASSY,RR

35970-07F01

$20.88

12

NUT

08316-1005A

$2.19
