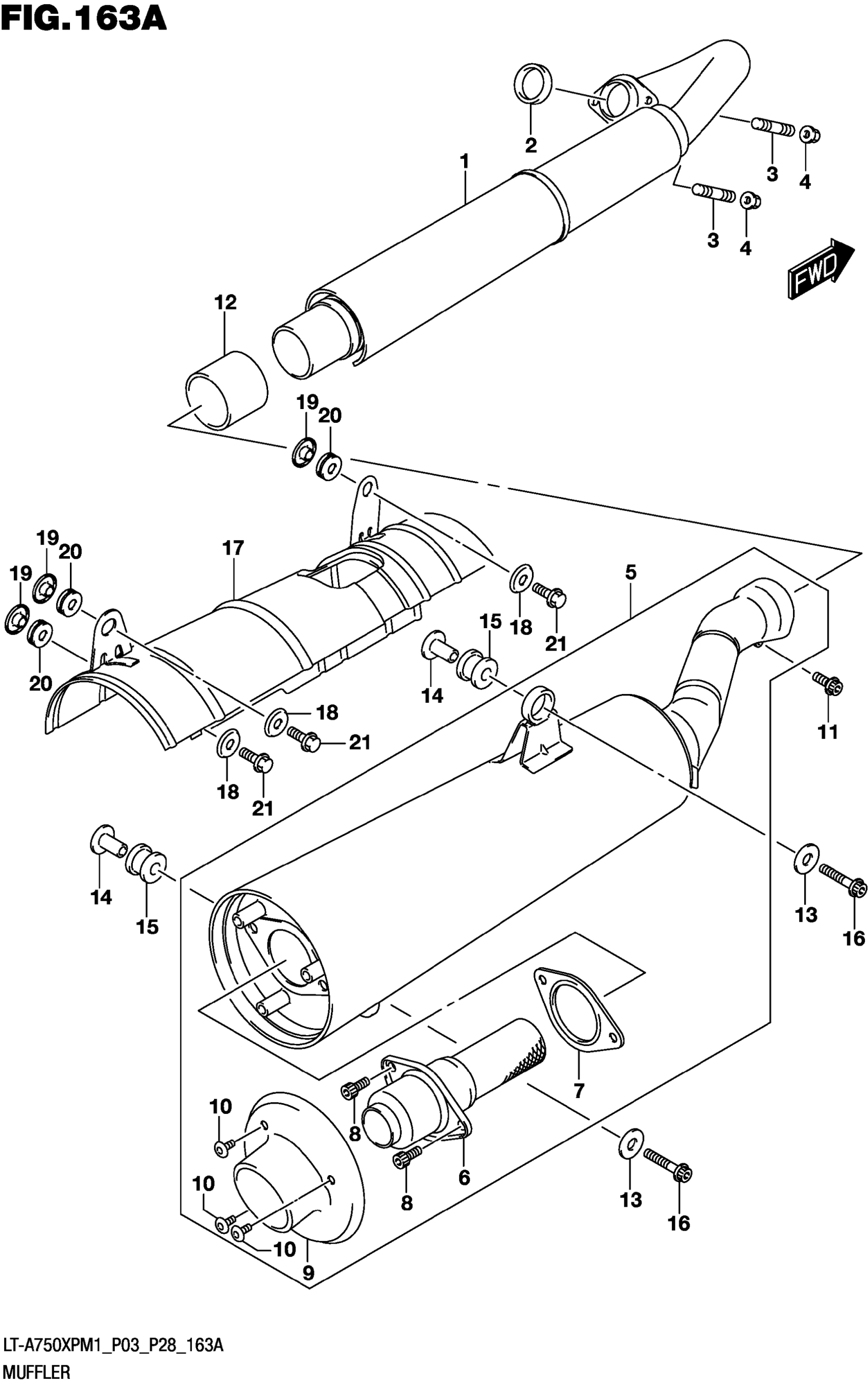

Suzuki LT-A750XPM1 (2021) MUFFLER Diagram

#

Description
Price

1

PIPE ASSY,EXHAUST

14100-31G80

$233.70

2

.GASKET,EXH PIPE

14181-31G00

$13.28

3

BOLT,STUD

01421-0825A

$2.03

4

NUT

08319-3108A

$2.32

5

BODY,MUFFLER

14320-31G90

$676.63

6

.ARRESTER

14850-31G70

$66.48

7

.GASKET

14773-31G02

$13.85

8

.BOLT

07130-0612B

$3.05

9

.COVER,MUFFLER TAIL

14790-31G70

$79.52

10

.SCREW (6X12)

09139-06027

$2.16

11

BOLT

07120-0835A

$3.55

12

CONNECTOR,MUFFLER JOINT

14771-31G10

$10.75

13

WASHER (8.5X30X2.3)

09160-08503

$2.50

14

SPACER (8.6X12X24.2)

09180-08152

$5.83

15

CUSHION

09320-12071

$9.15

16

BOLT

07120-0840A

$3.42

17

COVER, MUF

14880-31G60

Unavailable

18

WASHER, EXHAUST PIPE COVER

14184-07G00

$1.98

19

SPACER, EXHAUST PIPE COVER

14185-07G00

$3.76

20

CUSHION

09320-08069

$8.37

21

BOLT

01550-0616A

$1.97
