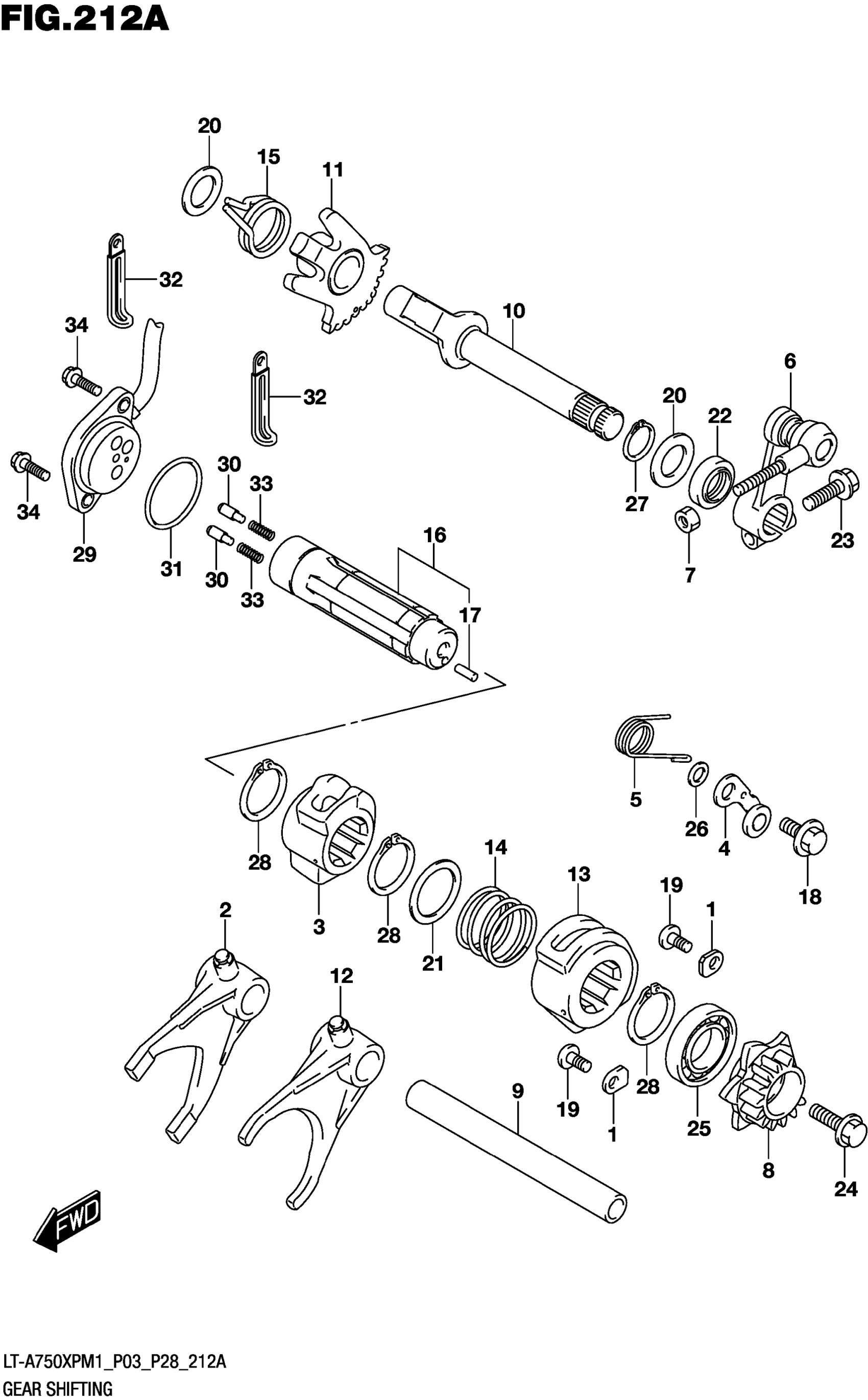

Suzuki LT-A750XPM1 (2021) GEAR SHIFTING Diagram

#

Description
Price

1

RETAINER

24741-21A00

$2.81

2

FORK, GEAR SHIFT REVERSE

25240-31G10

$71.81

3

CAM,REVERSE GEAR SHIFT

25321-31G00

Unavailable

4

STOPPER, SHIFT CAM

25350-31G00

Unavailable

5

SPRING,SHIFT

25355-35F01

$3.97

6

ARM,SELECT

25360-31G10

$80.02

7

NUT

08310-0006A

$1.84

8

PLATE,GR SHIFT CAM STOPPER (N | :16)

25381-31G00

Unavailable

9

SHAFT, GEAR SHIFT FORK (L:115

25411-38A00

$29.25

10

SHAFT, SUB T/M SHIFT NO.2 This part replaces 25510-31G00.

25510-31G01

$90.13

11

GEAR, SUB T/M SHIFT (NT:32)

25540-31G00

Unavailable

12

FORK, SUB T/M GEAR SHIFT

29510-31G10

$90.28

13

CAM, SUB T/M GEAR SHIFT

29611-31G00

Unavailable

14

SPRING, SUB T/M SHIFT FORK

29612-31G00

Unavailable

15

SPRING, SHIFT ARM RETURN

29613-31G00

$7.05

16

SHAFT,SUB T/M GEAR SHIFT

29620-34K00

$80.03

17

PIN (4X13.8)

04221-04089

$1.49

18

BOLT (6X14.3)

09111-06041

$2.61

19

SCREW (6X12)

09125-06122

$2.44

20

SHIM (14X24X1)

09181-14195

$2.71

21

SHIM (25X32X1)

09181-25139

$3.32

22

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

23

BOLT (6X20)

01550-0620A

$1.97

24

BOLT (6X20)

01550-0620A

$1.97

25

BEARING

08110-69040

$39.97

26

WASHER

08211-06121

$1.54

27

CIRCLIP

08331-3114A

$1.91

28

CIRCLIP

08331-31259

$2.48

29

BASE ASSY, GEAR SHIFT TERM

37720-31G00

$112.37

30

PIN (5X15.5)

09209-05011

$2.20

31

O RING (D:2.4,ID:35.5)

09280-35006

$3.04

32

CLAMP (L:45)

09404-06429

$1.83

33

SPRING

09440-04010

$1.54

34

BOLT

07120-0516A

$2.28
