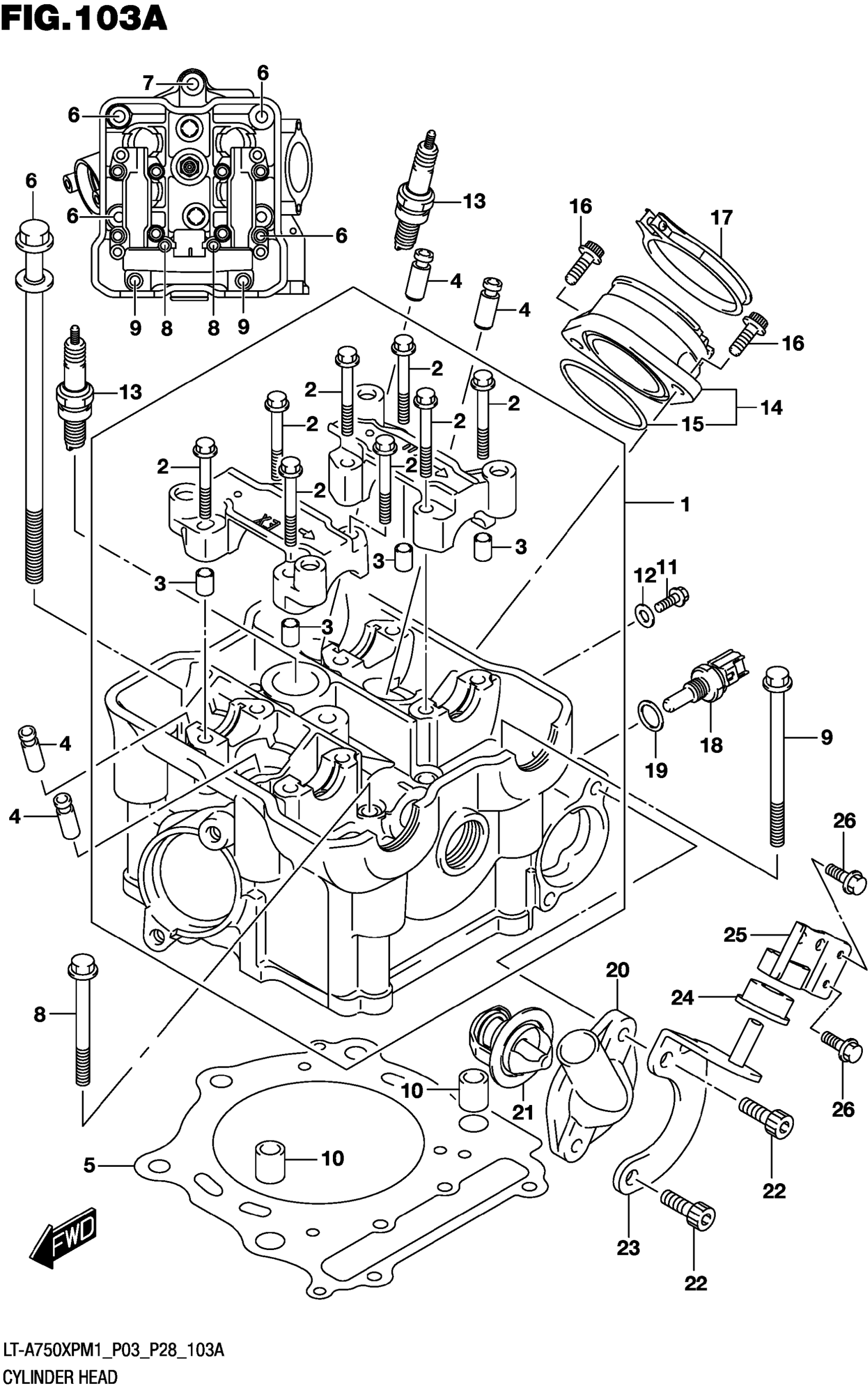

Suzuki LT-A750XPM1 (2021) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER

11100-31G50

$1,196.98

2

.BOLT (6X40)

09103-06266

$2.12

3

.PIN (8X11)

09206-08001

$1.78

4

GUIDE,VALVE (OS:0.3) | OPT

11115-32E70

$33.35

5

.GASKET,CYLINDER HEAD

11141-31G50

$43.16

6

BOLT,CYLINDER HEAD (L:200)

11161-31G00

$13.73

7

BOLT,CYLINDER HEAD (L:200)

11161-34K00

$13.47

8

BOLT (6X100)

09103-06060

$2.50

9

BOLT (6X70)

09103-06103

$2.53

10

PIN (10.4X13X18)

04211-13189

$2.19

11

BOLT

01550-0612A

$1.97

12

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

13-1

SPARK PLUG (LMAR7A-9)

09482-00624

$25.95

13-2

SPARK PLUG (LMAR6A-9)

09482-00623

$34.92

13-3

SPARK PLUG (LMAR8A-9)

09482-00625

Unavailable

14

PIPE ASSY,INTAKE

13101-31G01

$49.57

15

.O RING,INTAKE PIPE

13118-31G00

$5.30

16

BOLT (6X18)

09106-06105

$2.85

17

CLAMP

09402-62208

$6.58

18

SENSOR, WATER TEMP

13650-10G00

$87.24

19

GASKET (12X17X1)

09168-12017

$1.95

20

COVER, THERMOSTAT

17661-31G00

$47.48

21

THERMOSTAT,WATER

17670-06G61

$25.77

22

BOLT

07130-0825A

$3.04

23

PLATE,ENG MTG DAMPER

11653-31G02

$20.25

24

DAMPER,ENG MTG

11654-34K00

$9.20

25

STOPPER, ENG MTG

11655-31G10

$16.77

26

BOLT (8X12)

01550-0812A

$2.32
