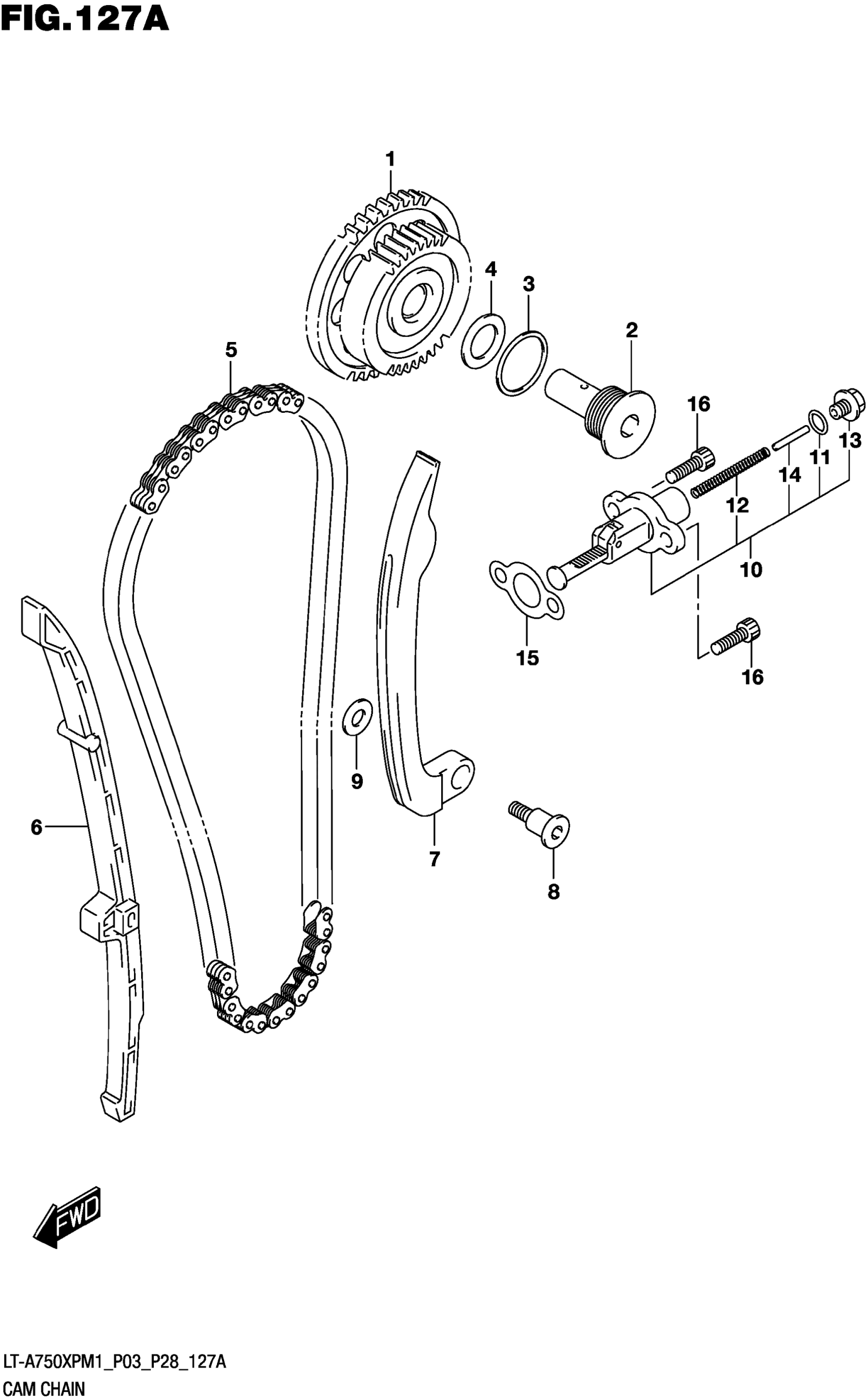

Suzuki LT-A750XPM1 (2021) CAM CHAIN Diagram

#

Description
Price

1

GEAR,CAM CHAIN IDLER (NT:41/4 | )

12750-31G00

$168.77

2

SHAFT,IDLER,NO.2

12755-02F01

$52.73

3

GASKET,26.5X30.5X1 (26.5X30.5 | 1)

09168-26001

$5.00

4-1

SHIM,15X24X0.9 (T:0.9)

09181-15164

$3.03

4-2

SHIM,15X24X1 (T:1.0)

09181-15166

$2.85

4-3

SHIM,15X24X1.1 (T:1.1)

09181-15172

$3.08

4-4

SHIM,15X24X1.2 (T:1.2)

09181-15176

$3.03

4-5

SHIM,15X24X1.3 (T:1.3)

09181-15181

$3.03

4-6

SHIM,15X24X1.4 (T:1.4)

09181-15182

$3.03

5

CHAIN,CAMSHAFT DRIVE (92RH201 | -126)

12760-31G00

$143.87

6

GUIDE,CAM CHAIN

12771-31G00

$43.27

7

TENSIONER,CAM CHAIN

12811-31G01

$53.92

8

BOLT,CAM CHAIN TENSIONER

12812-31G00

$4.58

9

WASHER

08211-08202

$2.53

10

ADJUSTER ASSY,TENSIONER

12830-19B02

$96.45

11

.O-RING

12832-02A00

$2.82

12

.SPRING

12833-19B00

$3.25

13

.PLUG

12834-19B00

$17.37

14

.BAR

12835-19B00

$3.25

15

.GASKET,TENSIONER ADJUSTER

12837-19B10

$2.73

16

BOLT

07130-0620A

$2.50
