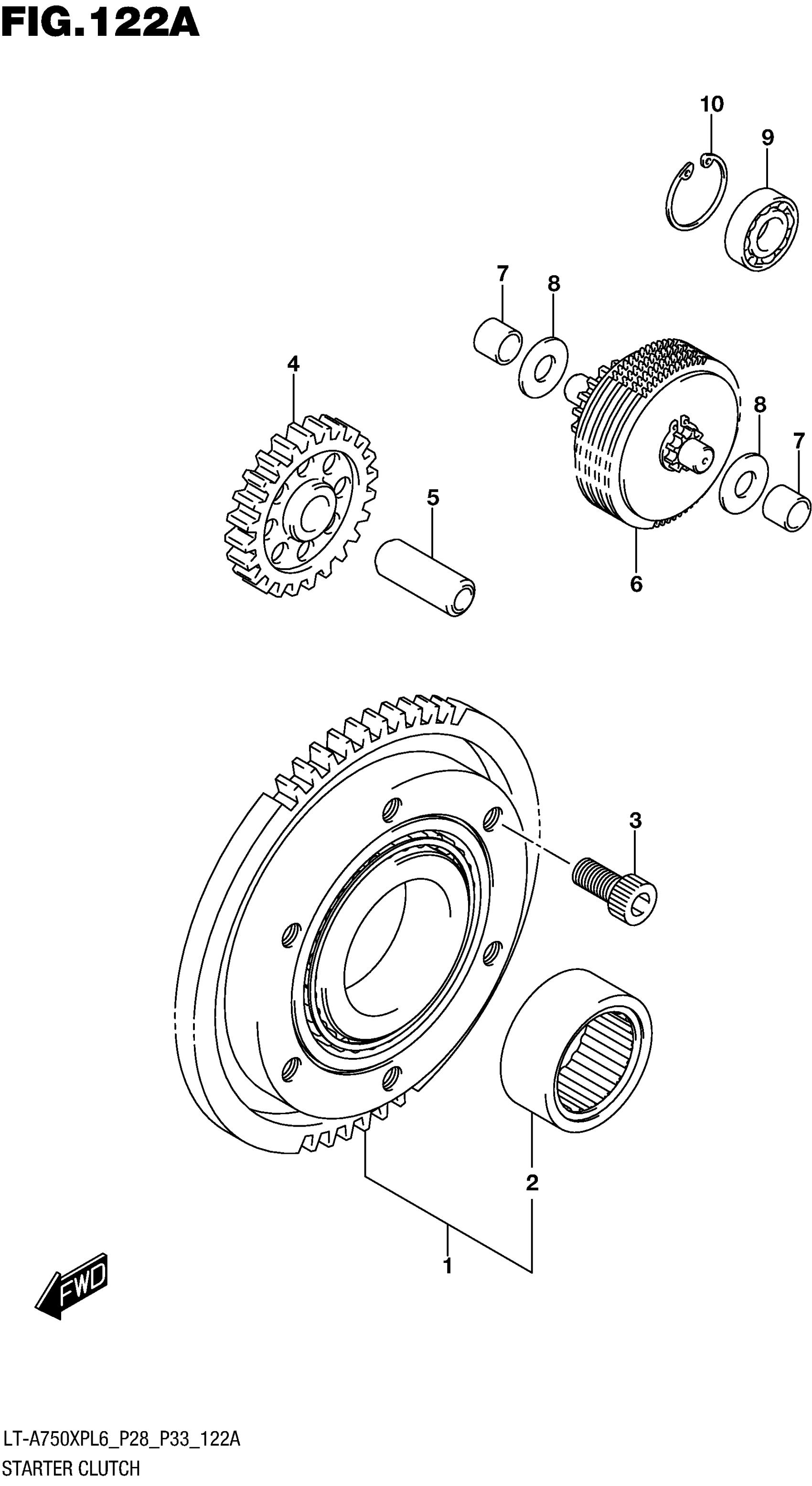

Find the part on the Starter Clutch diagram for your 2016 Suzuki LT-A750XPL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki LT-A750XPL6 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH SET, STARTER (NT:73)

12600-31810

1
Out of stock

2

.BEARING (35X45X20)

09263-35042

1
Out of stock

3

BOLT (8X20)

09106-08106

6
Out of stock

4

GEAR, STARTER IDLE NO.2

12612-31G00

1
Out of stock

4

(NT:27)

12612-31G00

1
Out of stock

5

PIN (8X12X33)

09206-12007

1
Out of stock

6

LIMITER ASSY, STARTER IDLE

12600-31G01

1
Out of stock

6

GEAR (NT:14/57)

12600-31G01

1
Out of stock

7

BUSH, LIMITER GEAR SHAFT

12618-31G00

2
Out of stock

8

WASHER

08211-10221

2
Out of stock

9

BEARING (12X28X8)

09262-12001

1
Out of stock

10

CIRCLIP

08331-41289

1
Out of stock
