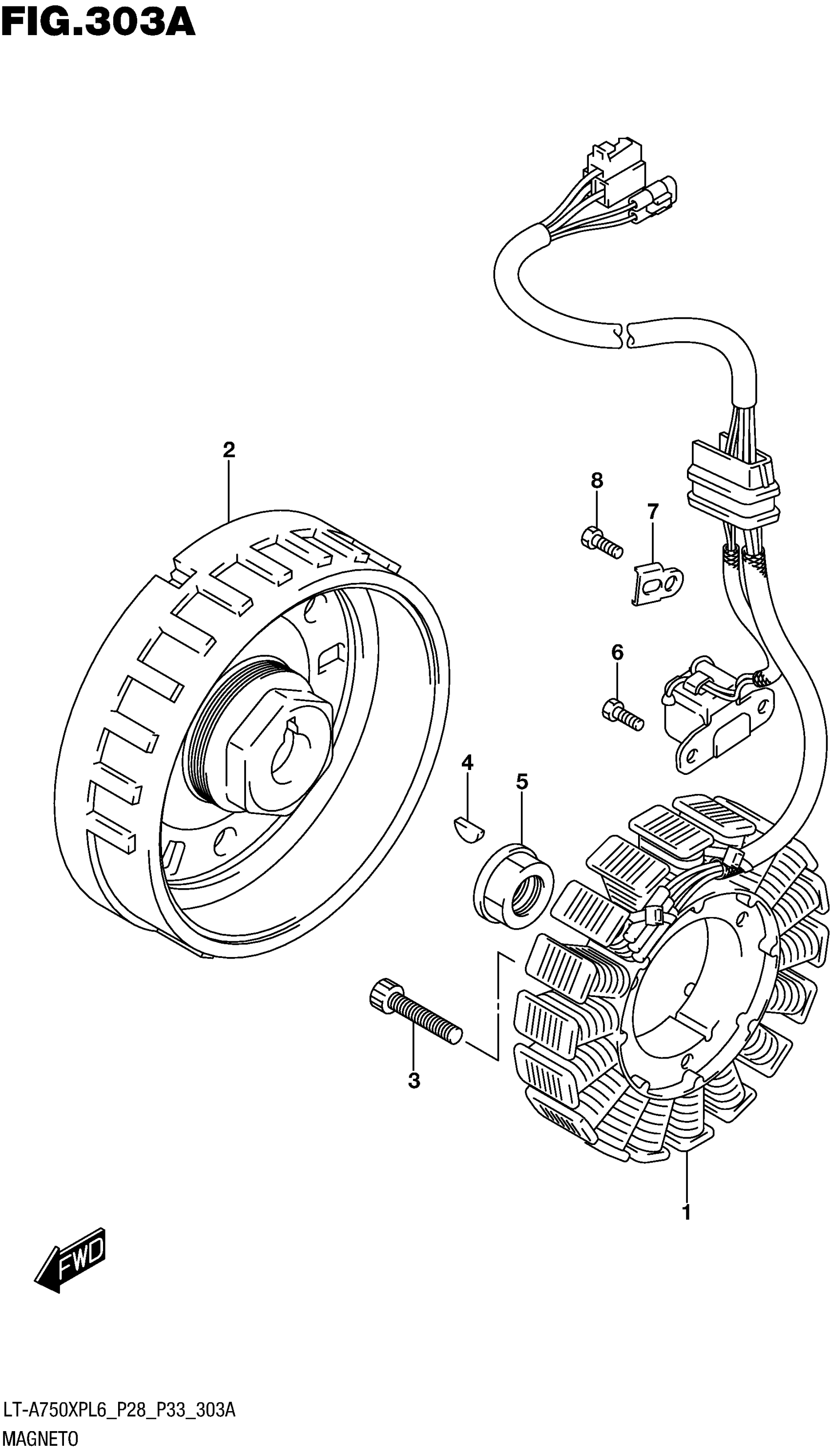

Suzuki LT-A750XPL6 (2016) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY, MAGNETO This part replaces 32101-31G01.

32101-31G02

$816.85

2

ROTOR ASSY

32102-31G10

$905.42

3

BOLT

07130-0630A

$4.03

4

KEY

09420-05007

$5.00

5

NUT,MAGNETO ROTOR

31792-11H00

$13.30

6

BOLT (5X10)

09100-05019

$2.10

7

CLAMP, MAGNETO LEAD

31497-45000

$2.17

8

BOLT (5X10)

09100-05019

$2.10
