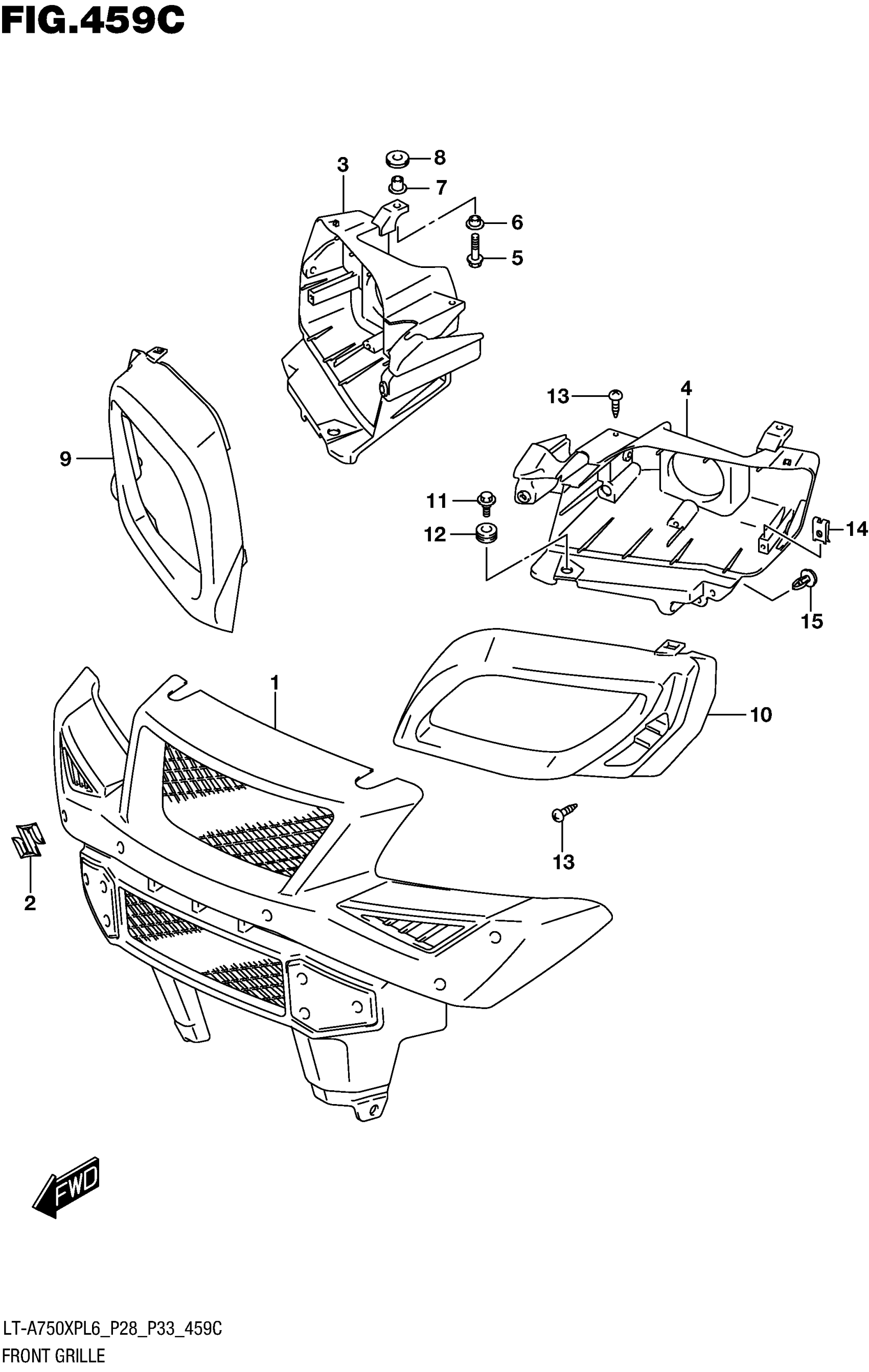

Suzuki LT-A750XPL6 (2016) FRONT GRILLE (LT-A750XPL6 P33) Diagram

GRILLE,FRONT This part replaces 53118-31GA0-291.

53118-31GA2-291

$124.13

EMBLEM, "S"

68151-03G40

$17.03

HOUSING,FRONT L This part replaces 53281-31G01-291.

53281-31G04-291

$75.16

HOUSING, FRONT LH (BLACK)

53284-31G01-291

$29.06

BOLT

01550-0630A

$2.32

WASHER

09169-06073

$3.42

WASHER

09169-06074

$7.95

CUSHION (11.5X32X12.2)

09320-11021

$4.17

COVER,FRONT LAM This part replaces 53282-31G01-291.

53282-31G03-291

$17.40

COVER,FRONT LAM This part replaces 53283-31G01-291.

53283-31G03-291

$30.75

SCREW (6X22.5)

09139-06118

$3.25

CUSHION

09320-10501

$6.23

SCREW

03541-0516A

$1.49

NUT

09148-05038

$1.97

CLIP

09409-08335

$2.47
