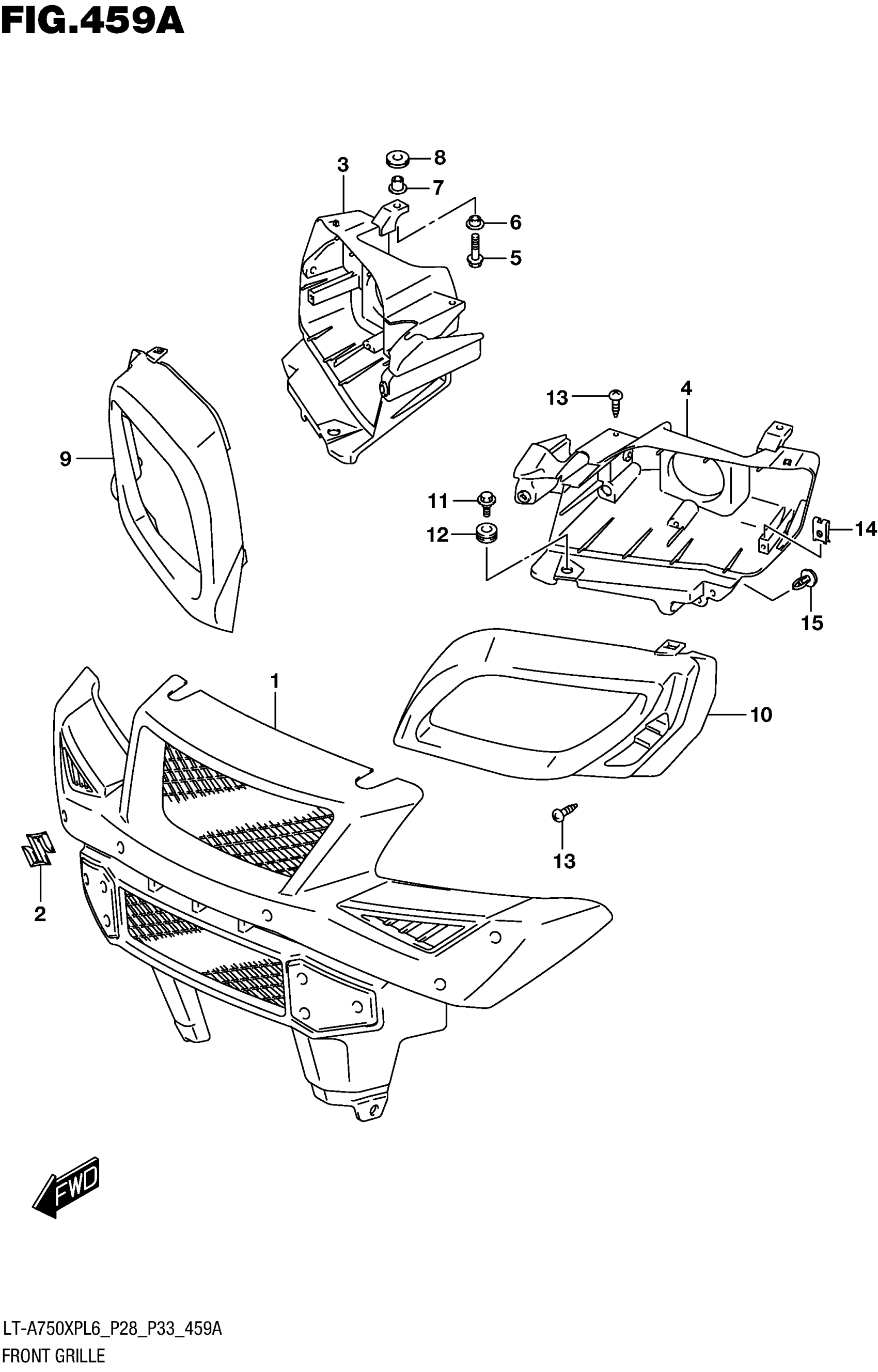

Suzuki LT-A750XPL6 (2016) FRONT GRILLE (LT-A750XPL6 P28) Diagram

#

Description

Price

1

GRILLE,FRONT This part replaces 53118-31GA0-291.

53118-31GA2-291

$133.62

2

EMBLEM, "S"

68151-03G40

$16.29

3

HOUSING,FRONT L This part replaces 53281-31G11-291.

53281-31G04-291

$85.33

4

HOUSING,FRONT L This part replaces 53284-31G11-291.

53284-31G03-291

$53.78

5

BOLT

01550-0630A

$2.38

6

WASHER

09169-06073

$3.18

7

WASHER

09169-06074

$7.70

8

CUSHION (11.5X32X12.2)

09320-11021

$3.89

9

COVER,FRONT LAM This part replaces 53282-31G01-291.

53282-31G03-291

$17.55

10

COVER,FRONT LAM This part replaces 53283-31G01-291.

53283-31G03-291

$33.76

11

SCREW (6X22.5)

09139-06118

$3.16

12

CUSHION

09320-10501

$5.00

13

SCREW

03541-0516A

$1.41

14

NUT

09148-05038

$2.01

15

CLIP

09409-08335

$2.44
