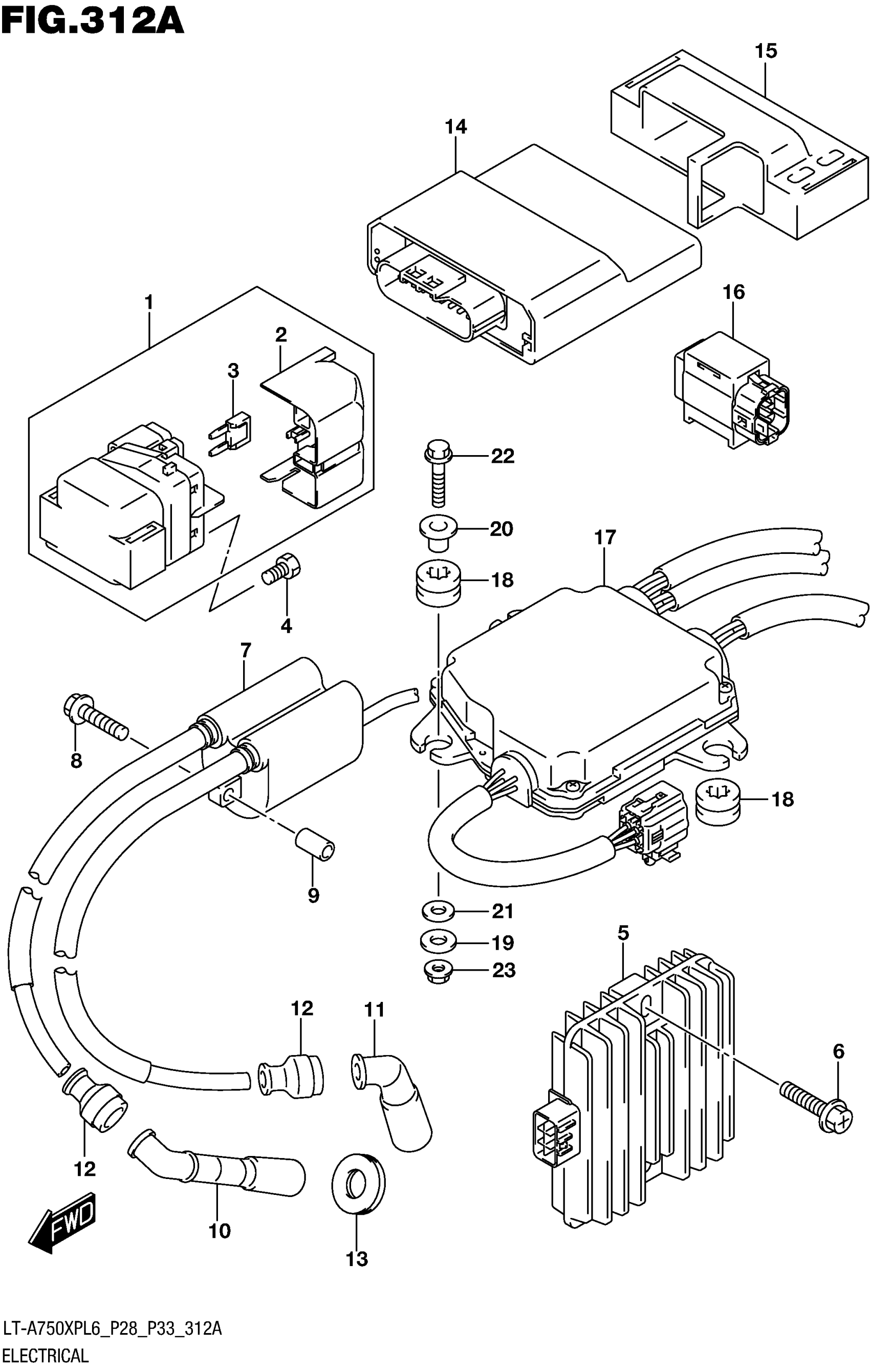

Suzuki LT-A750XPL6 (2016) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-42F10

$238.72

6

BOLT

01550-0620A

$1.97

7

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$106.57

8

BOLT

01547-0640A

$2.32

9

SPACER (6.4X10X18)

09180-06195

$3.68

10

CAP ASSY,SPARK PLUG

33510-31G00

$39.09

11

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

COVER,SPARK PLUG CAP

33543-33E01

$4.54

14

CONTROL UNIT,FI This part replaces 32920-31GC1.

32920-31GC3

$663.73

15

HOLDER, FI CONTROL UNIT

32980-31GA0

$42.80

16

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

17

CONTROL UNIT,EP This part replaces 32910-31G00.

32910-31G01

$1,161.00

18

CUSHION, EPS

32912-31G00

Unavailable

19

WASHER (6.5X15X1.5)

09160-06094

$1.49

20

WASHER

09169-06075

$3.68

21

WASHER

09169-06076

$3.05

22

BOLT

01550-0630A

$2.32

23

NUT

08316-1006A

$2.19
