2015 Suzuki LT-A750XPL5 Water Pump Diagram

← All diagrams

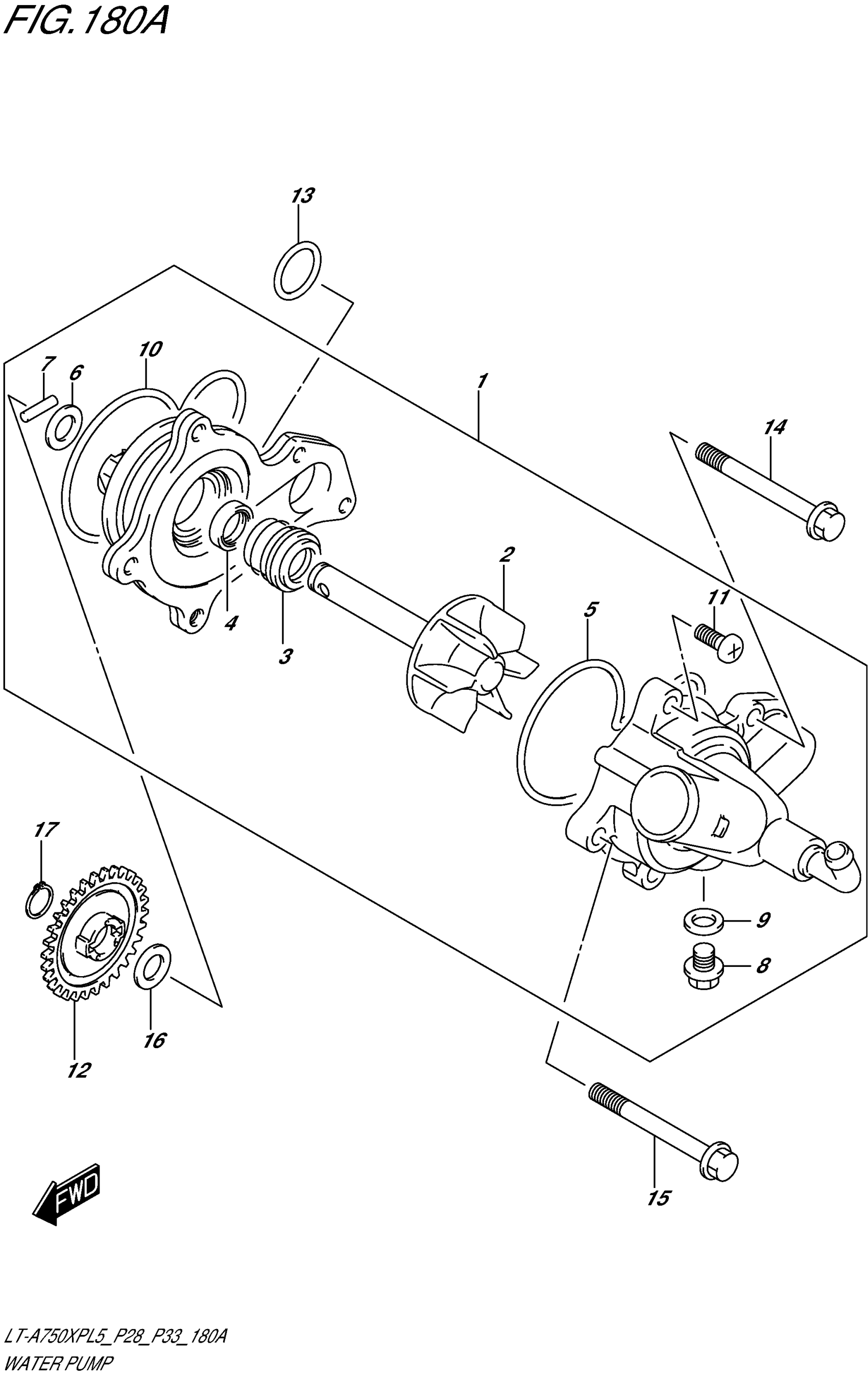

Find the part on the Water Pump diagram for your 2015 Suzuki LT-A750XPL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki LT-A750XPL5 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,WATER This part replaces 17400-31G00.

17400-31G11

1
Out of stock

2

IMPELLER

17491-31G00

1
Out of stock

3

SEAL, MECHANICAL

17470-02F01

1
Out of stock

4

.SEAL,OIL (10X21X5)

17461-48G00

1
Out of stock

5

O RING

17418-31G00

1
Out of stock

6

WASHER

17432-07G00

1
Out of stock

7

PIN

17482-03G00

1
Out of stock

8

.BOLT,DRAIN

17415-20920

1
Out of stock

9

GASKET (8.2X14X1)

09168-08016

1
Out of stock

10

O RING

17435-31G00

1
Out of stock

11

.SCREW

02112-0616B

2
Out of stock

12

GEAR, WATER PUMP DRIVEN (NT:23)

17461-31G00

1
Out of stock

13

.O-RING (D:2.4,ID:21.8)

09280-22001

1
Out of stock

14

BOLT

01547-0645A

2
Out of stock

15

BOLT

01547-0655A

1
Out of stock

16

SHIM (10X18X0.5)

09181-10158

1
Out of stock

17

CIRCLIP

08331-31109

1
Out of stock
