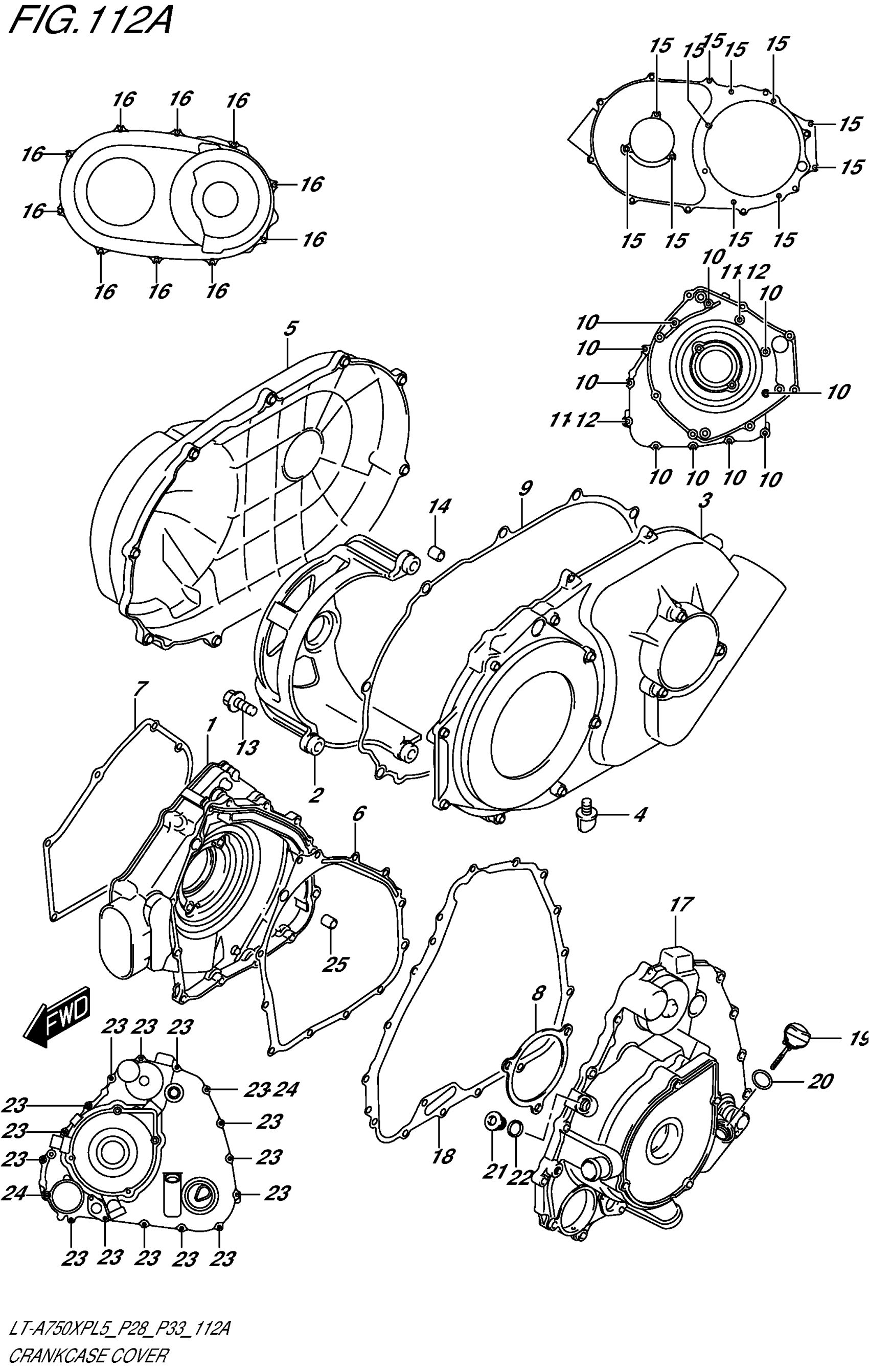

Suzuki LT-A750XPL5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH This part replaces 11341-31G00.

11341-31G02

$232.70

2

HOUSING, V-BELT BEARING

11342-31G10

$164.90

3

COVER,V BELT INNER

11370-31G00

$209.15

4

PLUG, WATER DRAIN

11375-31G00

$3.79

5

COVER,V BELT OUTER

11380-31G00

$133.69

6

GASKET, CLUTCH COVER

11482-31G00

$12.78

7

GASKET, V-BELT COVER INNER FR

11484-31G00

$21.40

8

GASKET, V-BELT COVER INNER RR

11485-31G00

$7.19

9

GASKET, V-BELT COVER OUTER

11486-31G00

$22.16

10

BOLT

01547-0625A

$2.01

11

BOLT

01547-0635A

$2.31

12

PIN

04211-11169

$1.77

13

BOLT

01547-0635A

$2.31

14

PIN

04211-09149

$1.64

15

BOLT

01547-0625A

$2.01

16

BOLT

01547-0625A

$2.01

17

COVER,MAGNETO

11350-31G01

$444.97

18

GASKET, MAGNETO COVER

11483-31G00

$22.88

19

GAUGE,OIL LEVEL

11971-09F50

$8.95

20

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

21

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

$2.80

22

GASKET (14X18X1.5)

09168-14014

$2.23

23

BOLT

01547-0625A

$2.01

24

BOLT

01547-0635A

$2.31

25

PIN

04211-11169

$1.77
