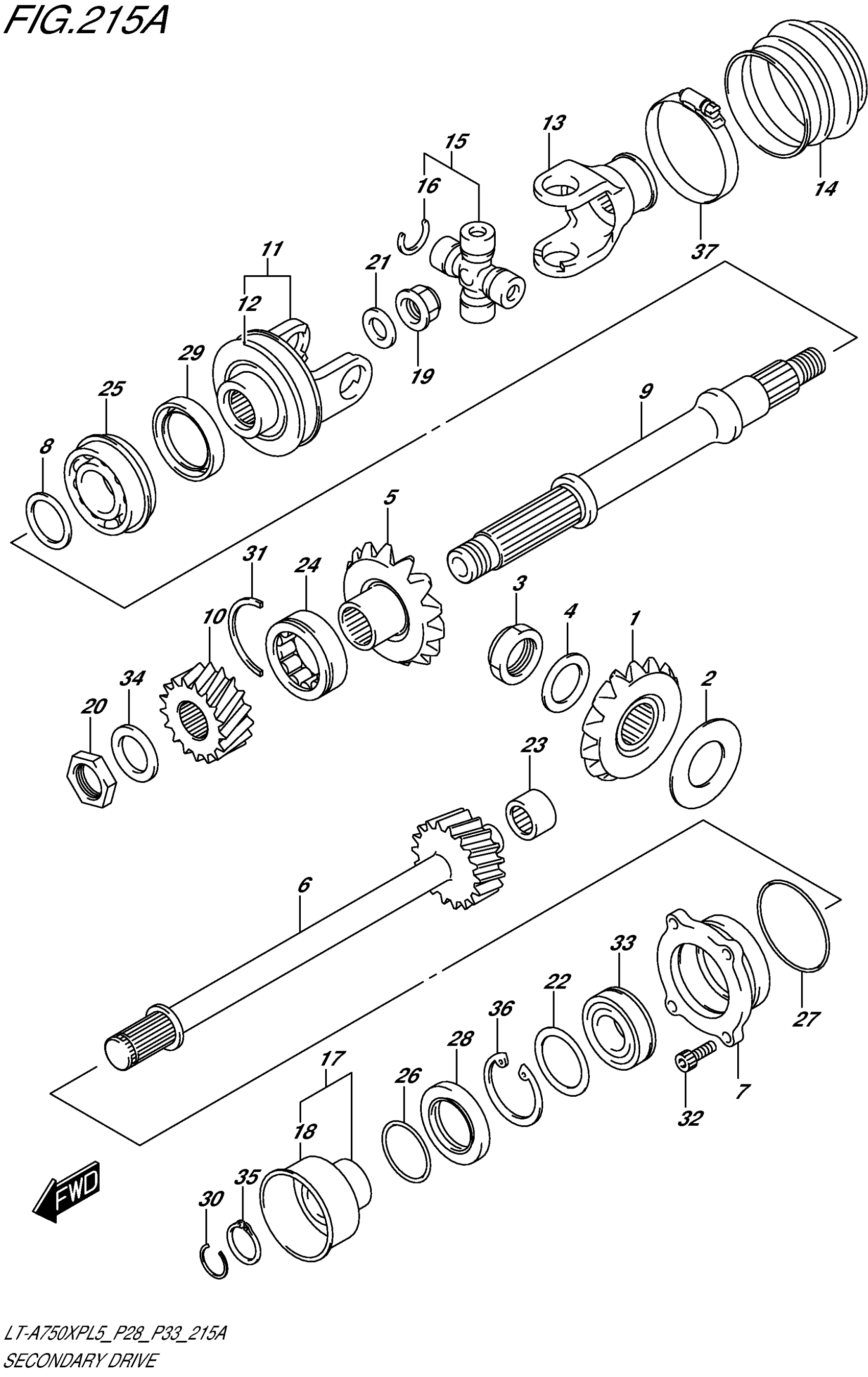

Suzuki LT-A750XPL5 (2015) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL (NT:15)

24911-31G00

$237.42

2

SHIM SET,SEC DRIVE BEVEL | T:0.55/0.575/0.60/0.625/0.65/ 0.675/0.70/0.725/0.75/0.775/0.80/ 0.825/0.85/0.875/0.90/0.925/0.95/ 0.975/1.00/1.025/1.05/10.75/1.10/ 1.125/1.15/1.175/1.20/1.225/1.25/ 1.275/1.30

24935-03811

$133.70

3

NUT

09140-20012

$4.32

4

SHIM (20X32X1)

09181-20223

$2.92

5

GEAR, SEC DRIVEN BEVEL (NT:17)

24921-31G10

$248.20

6

SHAFT,SEC DRIVEN OUTPUT FR (N

24961-31G40

$288.58

7

HOUSING, FR OUTPUT SHAFT BRG

24965-31G00

$45.38

8

SHIM SET,SEC DRIVEN BEVEL | T:0.55/0.575/0.60/0.625/0.65/ 0.675/0.70/0.725/0.75/0.775/0.80/ 0.825/0.85/0.875/0.90/0.925/0.95/ 0.975/1.00/1.025/1.05/10.75/1.10/ 1.125/1.15/1.175/1.20/1.225/1.25/ 1.275/1.30/1.325/1.35/1.375/1.40

24945-03811

$111.58

9

SHAFT,SEC DRIVEN OUTPUT RR

24971-31G10

$179.33

10

GEAR, SEC DRIVEN OUTPUT (NT:18)

24972-31G20

$106.45

11

YOKE, RR DRIVE OUTPUT

27130-31G10

Unavailable

12

FLANGE, OUTPUT YOKE BOOT

27592-31G30

Unavailable

13

YOKE, PROP SHAFT JOINT RR

27141-31G00

Unavailable

14

BOOT, REAR OUTPUT JOINT This part replaces 27153-31G00.

27153-31G01

$14.84

15

JOINT SET, UNIVERSAL RR This part replaces 27200-73813.

27200-73814

$50.65

16

SNAP RING

09380-25005

$1.67

17

COLLAR, FRONT DRIVE

27590-31G00

$62.32

18

PLATE, OUTPUT OIL SEAL

27592-31G00

$14.70

19

NUT

09159-16003

$4.00

20

NUT

09159-22005

$27.75

21

WASHER (16X30X3)

09160-16026

$5.00

22

SHIM (40X52X1)

09181-40195

$6.70

23

BEARING (25X37X17)

09263-25068

$53.77

24

BEARING (30X50X17)

09263-30050

$57.07

25

BEARING (25X52X20.6)

09267-25014

$124.50

26

O RING (D:1.9,ID:24.5)

09280-25005

$2.12

27

O RING (D:3.5,ID:65.2)

09280-57002

$2.50

28

OIL SEAL (34X52X9)

09283-34008

$20.72

29

OIL SEAL (34X52X9)

09283-34008

$20.72

30

SNAP RING

09381-21002

$1.49

31

C RING

09390-50002

$3.03

32

BOLT

07130-0620A

$2.50

33

BEARING (25X52X15)

09262-25003

$24.83

34

WASHER

08211-22365

$5.97

35

CIRCLIP

08331-31259

$2.48

36

CIRCLIP

08331-41529

$4.45

37

CLAMP

09402-00512

$15.13
