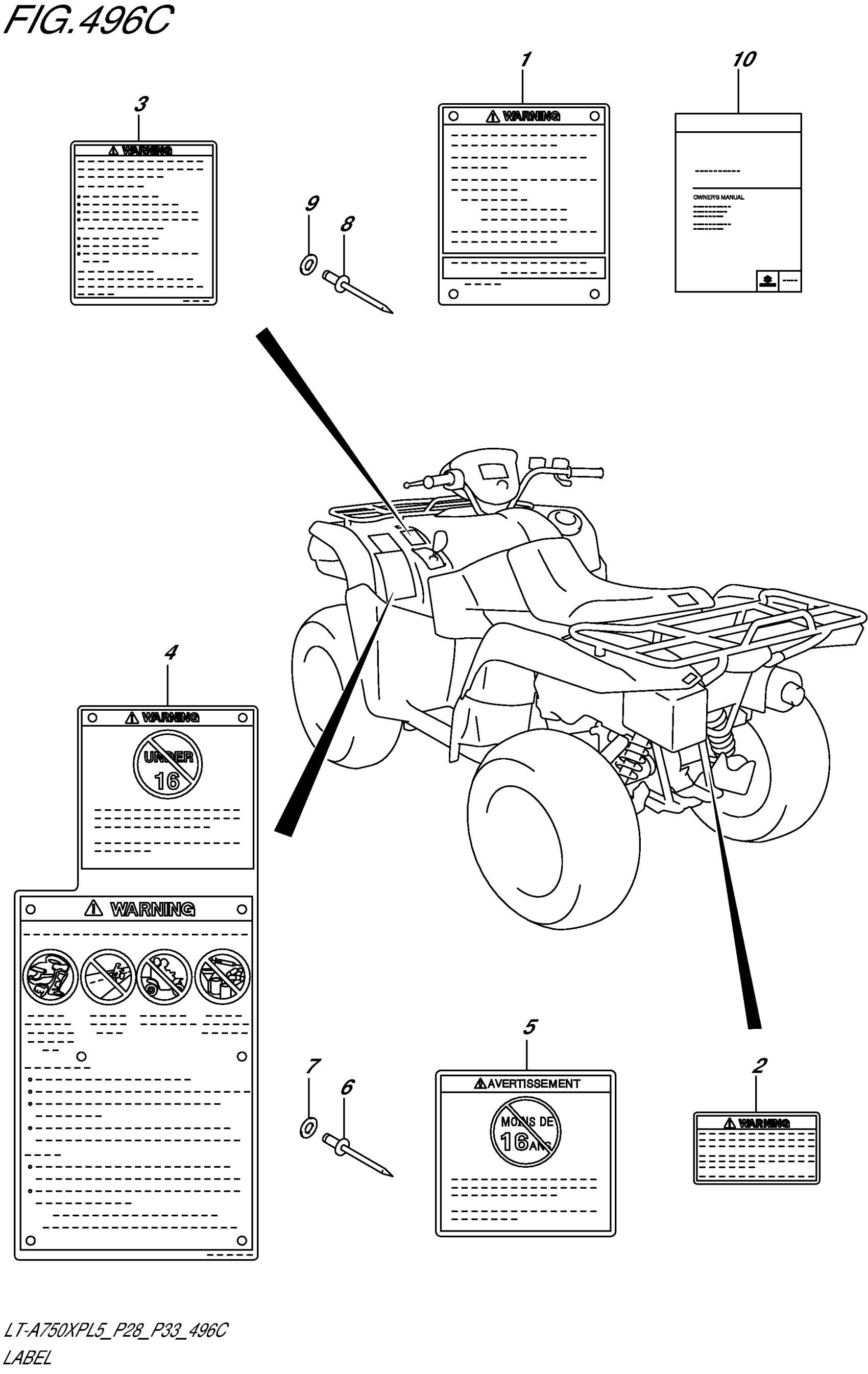

Suzuki LT-A750XPL5 (2015) LABEL (LT-A750XPZL5 P28) Diagram

#

Description

Price

1

LABEL, TIRE (ENGLISH) This part replaces 68332-11HE0.

68332-11HL0

$29.87

1

LABEL, TIRE (FRENCH)

68332-03GF0

Unavailable

2

LABEL,TRAILER TOW WARNING This part replaces 68617-03G00.

68617-03G01

$6.10

2

LABEL,TRAILER TOW WARNING This part replaces 68617-03G10.

68617-03G11

$8.97

3

LABEL,GEAR SHIFTING This part replaces 68633-09F00.

68633-09F01

$12.02

3

LABEL,GEAR SHIFTING This part replaces 68633-03G00.

68633-03G01

$13.52

4

LABEL,GENERAL WARNING & AGE 1 This part replaces 68921-31G10.

68921-31G20

$32.23

4

LABEL,GENERAL WARNING This part replaces 68921-05G30.

68921-05G31

$17.27

5

LABEL,AGE 16 This part replaces 68367-04641.

68367-04642

$6.93

6

RIVET

68929-09F00

$3.29

7

WASHER

68928-09F10

$9.61

8

RIVET

68929-09F00

$3.29

9

WASHER

68928-09F10

$9.61

10

MANUAL, OWNER'S(EN/FR)

99011-31G67-28B

Unavailable
