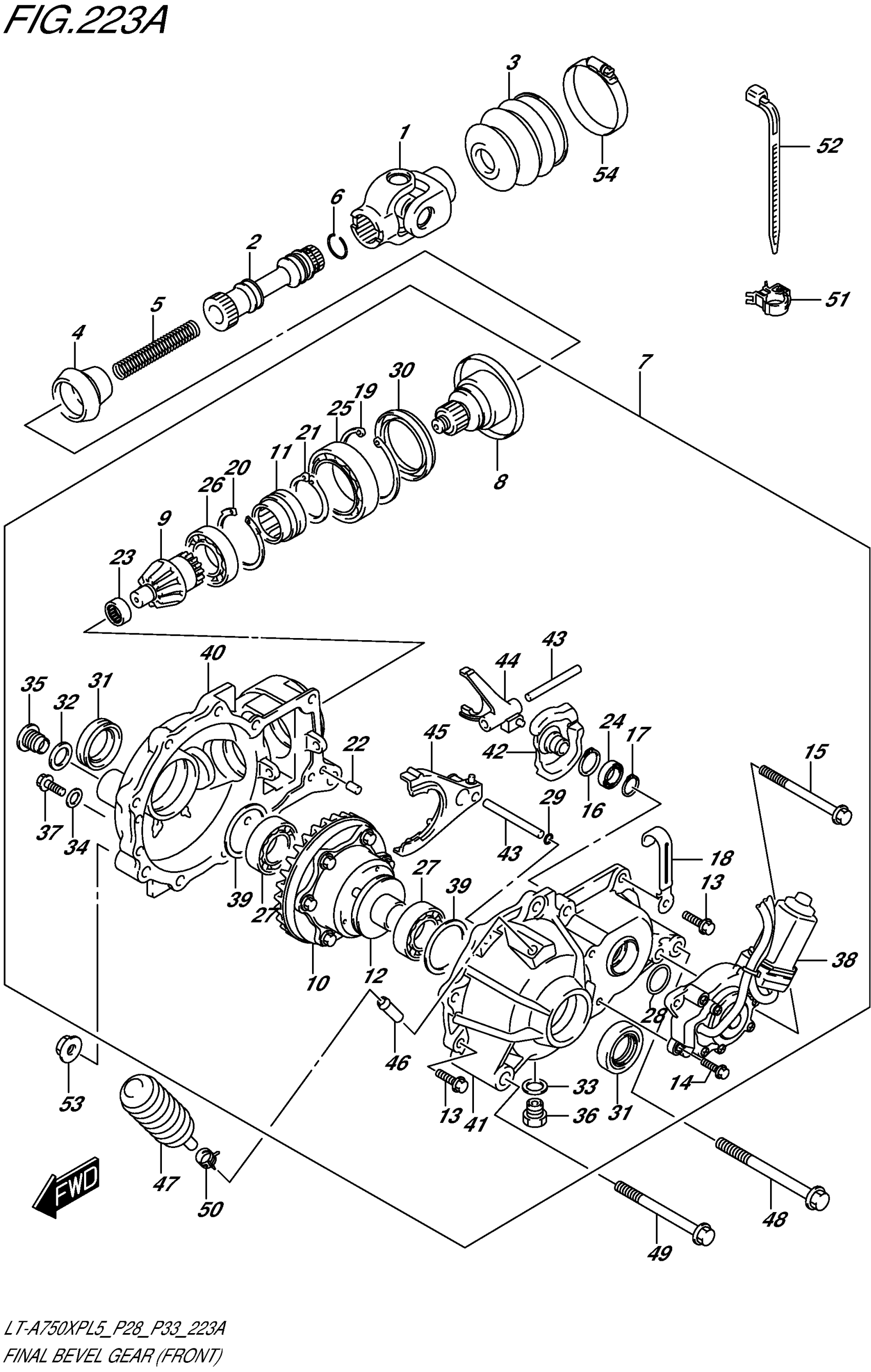

Suzuki LT-A750XPL5 (2015) FINAL BEVEL GEAR (FRONT) Diagram

#

Description
Price

1

YOKE, FR PROPELLER SHAFT

27100-31G00

$223.32

2

SHAFT, PROPELLER

27151-31G30

$78.47

3

BOOT, FRONT PROP SHAFT YOKE This part replaces 27153-31G21.

27153-31G22

$11.43

4

BOOT,FR PROP SHAFT This part replaces 27153-31G30.

27153-31G32

$6.64

5

SPRING, FR PROPELLER SHAFT

27191-31G00

$5.63

6

SNAP RING

09381-20004

$1.65

7

CASE ASSY,FR DIFFERENTIAL This part replaces 27400-11H10.

27400-11H11

$2,455.53

8

SHAFT ASSY,INPU This part replaces 27130-31GB0.

27130-31GB1

$308.30

9

PINION,DRIVE This part replaces 27311-11HA0.

27311-11HA1

$246.93

10

RING GEAR ASSY This part replaces 27320-31GB0.

27320-31GB1

$526.15

11

SLEEVE

27371-31GA0

$76.35

12

PIN, SLEEVE DIFF LOCK

27381-31GA0

$139.17

13

BOLT 8X25

27401-38FA1

Unavailable

14

FLANGE BOLT, HEX HEAD

27401-31GB0

$2.80

15

FLANGE BOLT, HEX HEAD

27401-31GC0

Unavailable

16

SNAP RING

27403-31GA0

$4.52

17

SNAP RING

27403-31GB0

$4.52

18

SNAP RING

27403-31GC0

Unavailable

19

SNAP RING

27403-38FA0

$4.82

20

SNAP RING

27403-38FB0

$4.82

21

SNAP RING

27403-38FC0

$3.27

22

PIN

27404-31GA0

$1.49

23

BEARING, PINION

27405-31GA0

$20.83

24

BEARING

27405-31GB0

$16.85

25

BEARING

27405-38FA0

$28.97

26

BEARING

27405-38FB0

$30.47

27

BEARING

27405-38FD0

$15.88

28

O RING

27406-31GE0

$11.62

29

O RING

27406-31GF0

$10.68

30

OIL SEAL

27406-38FB0

$9.81

31

OIL SEAL

27406-38FD0

$7.66

32

WASHER

27407-31GA0

$9.15

33

WASHER

27407-38FB0

$2.78

34

WASHER

27407-38FD0

$3.05

35

PLUG

27409-38FA0

$3.40

36

PLUG

27409-38FB0

Unavailable

37

PLUG, LEVEL

27409-38FC0

$5.35

38

.CASE,MOTOR This part replaces 27421-31GA0.

27421-31GA1

$633.01

39

SHIM SET

27445-38FA0

$114.32

40

HOUSING, FINAL DRIVE, FR

27451-31GA0

$371.53

41

COVER, FINAL DRIVE, FR

27461-31GA0

Unavailable

42

CAM SHIFT

27911-31GA0

$269.83

43

ROD SHIFT

27921-31GA0

Unavailable

44

FORK SHIFT, 2WD & 4WD

27941-31GA0

Unavailable

45

FORK SHIFT, DIFFLOCK

27951-31GA0

$103.03

46

UNION

09364-08003

$3.15

47

CASE,BREATHER This part replaces 27491-38F00.

27491-38F10

$18.50

48

BOLT (10X90)

09103-10061

$6.43

49

BOLT (10X110)

09103-10148

$6.94

50

CLIP

09401-08411

$1.78

51

CLAMP (L:125)

09407-14403

$2.26

52

CLAMP (L:125)

09407-14403

$2.26

53

NUT

09159-10115

$3.55

54

CLAMP

09402-80501

$13.53
