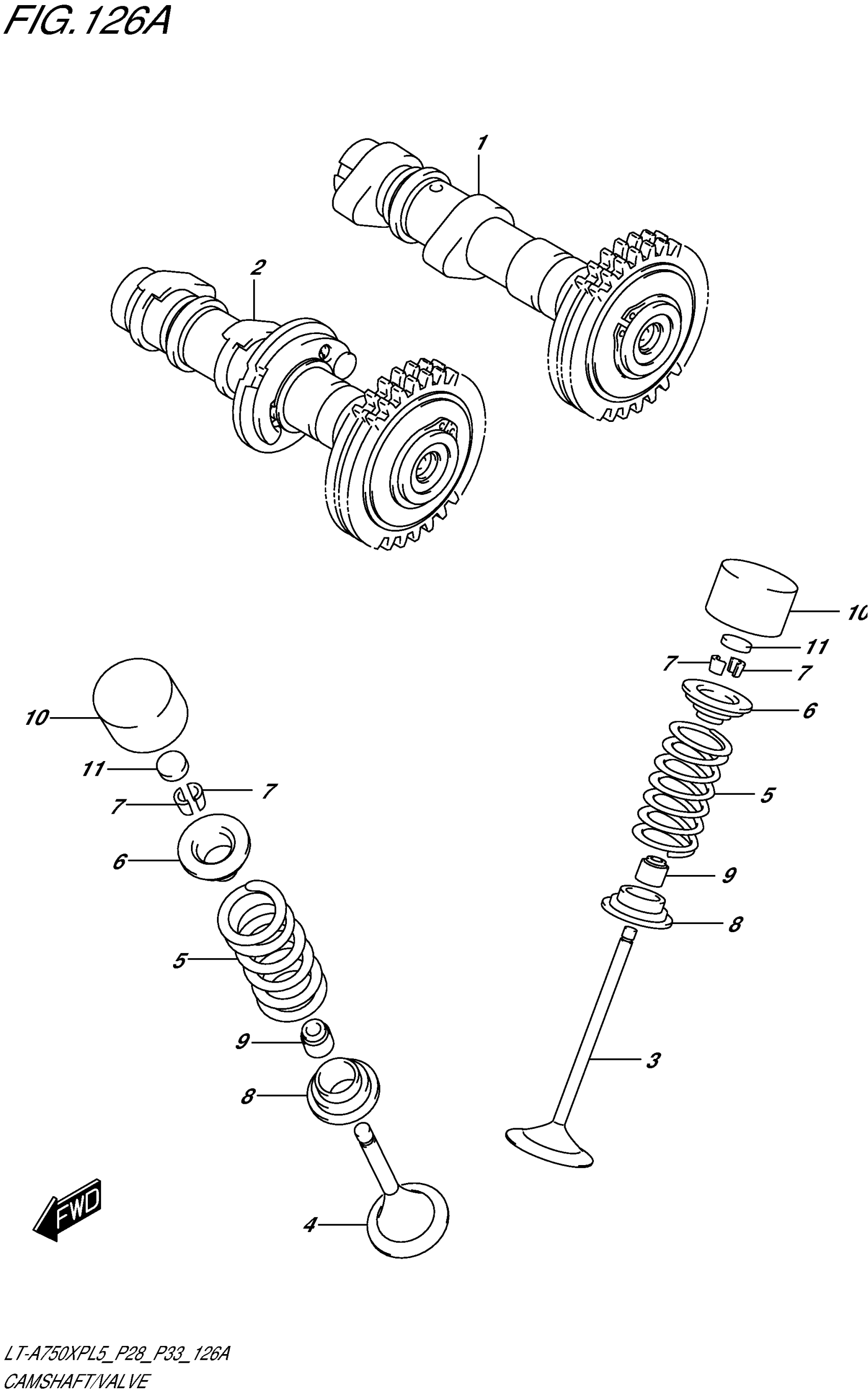

Suzuki LT-A750XPL5 (2015) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE (NT:41)

12710-31G10

$399.83

2

CAMSHAFT,EXHAUST (NT:41)

12720-31G10

$520.87

3

VALVE,INTAKE

12911-31G00

$47.57

4

VALVE,EXHAUST

12912-31G00

$74.87

5

SPRING,VALVE

12921-31G00

$15.17

6

RETAINER,VALVE SPRING

12931-02F10

$15.16

7

COTTER, VALVE

12932-24400

$1.94

8

SEAT,VALVE SPRING

12933-38400

$5.44

9

OIL SEAL (5.5X11X8.2)

09289-05015

$6.70

10

TAPPET This part replaces 12891-02F00.

12891-02F10

$52.61

11

SHIM, TAPPET (T:2.300)

12892-41C00-230

$11.38

11

SHIM, TAPPET (T:2.325)

12892-41C00-232

Unavailable

11

SHIM, TAPPET (T:2.350)

12892-41C00-235

$11.83

11

SHIM, TAPPET (T:2.375)

12892-41C00-238

$11.83

11

SHIM, TAPPET (T:2.400)

12892-41C00-240

$11.83

11

SHIM, TAPPET (T:2.425)

12892-41C00-242

Unavailable

11

SHIM, TAPPET (T:2.450)

12892-41C00-245

$11.83

11

SHIM, TAPPET (T:2.475)

12892-41C00-248

Unavailable

11

SHIM, TAPPET (T:2.500)

12892-41C00-250

$11.83

11

SHIM, TAPPET (T:2.525)

12892-41C00-252

Unavailable

11

SHIM, TAPPET (T:2.550)

12892-41C00-255

$11.83

11

SHIM, TAPPET (T:2.575)

12892-41C00-258

Unavailable

11

SHIM, TAPPET (T:2.600)

12892-41C00-260

$11.38

11

SHIM, TAPPET (T:2.625)

12892-41C00-262

Unavailable

11

SHIM, TAPPET (T:2.650)

12892-41C00-265

$11.38

11

SHIM, TAPPET (T:2.675)

12892-41C00-268

Unavailable

11

SHIM, TAPPET (T:2.700)

12892-41C00-270

$11.38

11

SHIM, TAPPET (T:2.725)

12892-41C00-272

Unavailable

11

SHIM, TAPPET (T:2.750)

12892-41C00-275

$9.69

11

SHIM, TAPPET (T:2.775)

12892-41C00-278

Unavailable

11

SHIM, TAPPET (T:2.800)

12892-41C00-280

$11.38

11

SHIM, TAPPET (T:2.825)

12892-41C00-282

Unavailable

11

SHIM, TAPPET (T:2.850)

12892-41C00-285

$11.83

11

SHIM, TAPPET (T:2.875)

12892-41C00-288

Unavailable

11

SHIM, TAPPET (T:2.900)

12892-41C00-290

$11.38

11

SHIM, TAPPET (T:2.925)

12892-41C00-292

Unavailable

11

SHIM, TAPPET (T:2.950)

12892-41C00-295

$11.83

11

SHIM, TAPPET (T:2.975)

12892-41C00-298

Unavailable

11

SHIM, TAPPET (T:3.000)

12892-41C00-300

$11.60

11

SHIM, TAPPET (T:3.025)

12892-41C00-302

Unavailable

11

SHIM, TAPPET (T:3.050)

12892-41C00-305

$11.83

11

SHIM, TAPPET (T:3.075)

12892-41C00-308

Unavailable

11

SHIM, TAPPET (T:3.100)

12892-41C00-310

$11.38

11

SHIM, TAPPET (T:3.125)

12892-41C00-312

Unavailable

11

SHIM, TAPPET (T:3.150)

12892-41C00-315

Unavailable

11

SHIM, TAPPET (T:3.175)

12892-41C00-318

Unavailable

11

SHIM, TAPPET (T:3.200)

12892-41C00-320

$11.60

11

SHIM, TAPPET (T:3.225)

12892-41C00-322

Unavailable

11

SHIM, TAPPET (T:3.250)

12892-41C00-325

$11.83

11

SHIM, TAPPET (T:3.275)

12892-41C00-328

Unavailable

11

SHIM, TAPPET (T:3.300)

12892-41C00-330

$11.83

11

SHIM, TAPPET (T:3.325)

12892-41C00-332

Unavailable

11

SHIM, TAPPET (T:3.350)

12892-41C00-335

$11.83

11

SHIM, TAPPET (T:3.375)

12892-41C00-338

Unavailable

11

SHIM, TAPPET (T:3.400)

12892-41C00-340

$11.83

11

SHIM, TAPPET (T:3.425)

12892-41C00-342

Unavailable

11

SHIM, TAPPET (T:3.450)

12892-41C00-345

Unavailable

11

SHIM, TAPPET (T:3.475)

12892-41C00-348

Unavailable

11

SHIM, TAPPET (T:3.500)

12892-41C00-350

$11.83

12

SHIM SET, TAPPET T:2.50, 2.55...3.45, 3.50 (5PCS.EACH) & CASE | OPT NOT ILLUSTRATED

12800-41810

$1,138.37

13

CASE, TAPPET SHIM | OPT NOT ILLUSTRATED

99000-69471

Unavailable
