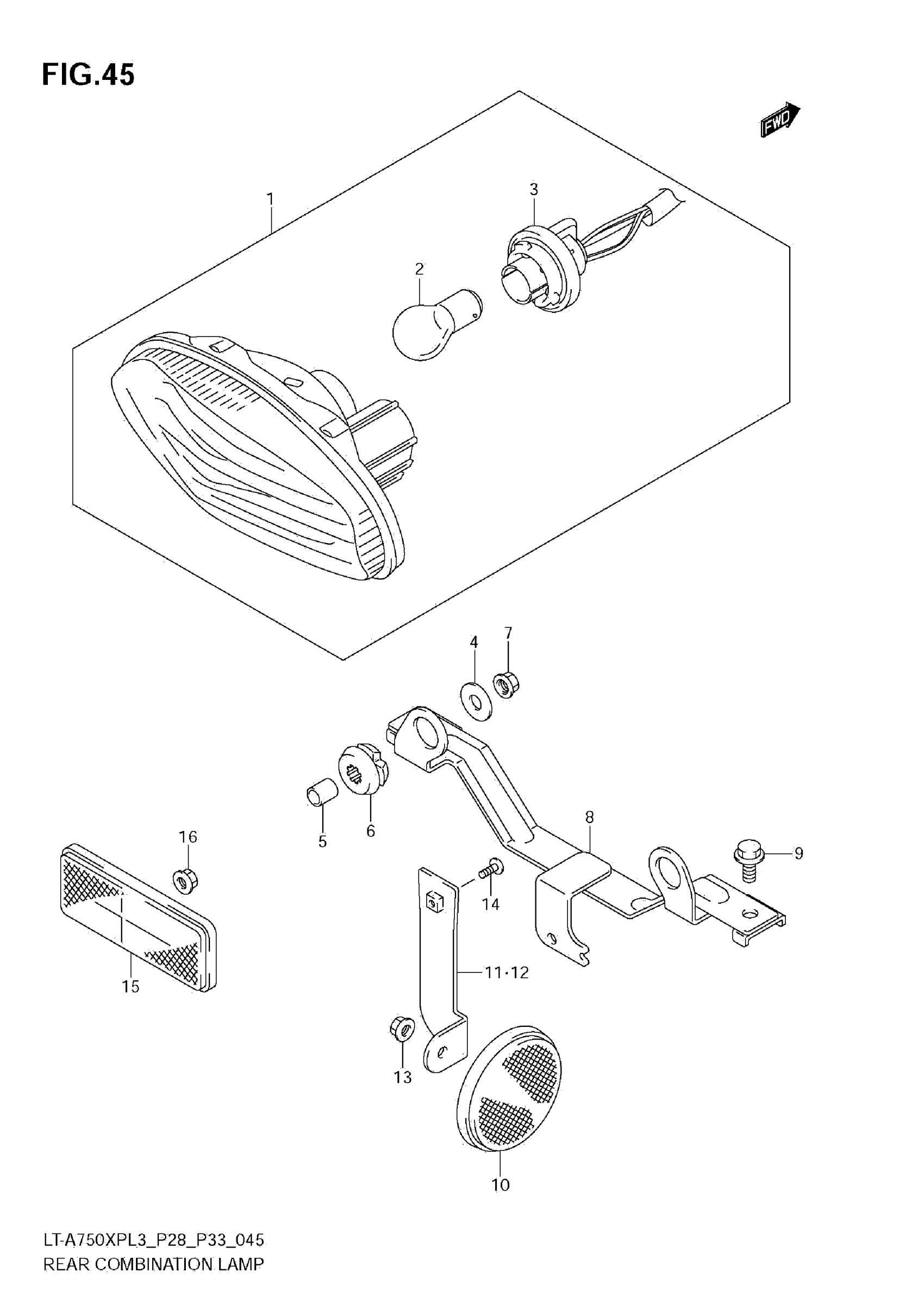

Suzuki LT-A750XPL3 (2013) REAR COMBINATION LAMP (LT-A750XPZL3 P28) Diagram

Description

Price

LAMP ASSY, REAR COMBINATION

35710-31G00

$82.87

BULB (12V, 21/5W)

09471-12128

$6.73

SOCKET & CORD

35718-03G30

$26.34

WASHER (6.5X20X1.2)

09160-06077

$1.91

SPACER (6.5X9X10.5)

09180-06264

$2.23

CUSHION

09320-09018

$2.44

NUT

08316-1006A

$2.19

BRACKET, REAR COMBINATION LAMP

35726-31G10

$28.27

BOLT

01550-0612A

$1.97

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

BRACKET, REAR SIDE RR RH

35975-31G00

Unavailable

BRACKET, REAR SIDE RR LH

35976-31G00

Unavailable

NUT

08316-1005B

$2.50

SCREW (5X8)

09125-05073

$2.38

REFLECTOR ASSY, REAR

35970-07F01

$20.88

NUT

08316-1005B

$2.50
