Description

Price

1

HOSE, RADIATOR INLET

17851-31G00

$39.54

2

HOSE, RADIATOR OUTLET

17852-31G00

$46.52

3

HOSE, WATER BYPASS

17854-24F00

$22.92

4

HOSE,WATER PUMP OUTLET

17854-31G00

$19.78

5

UNION

09362-09011

$8.28

6

CLIP This part replaces 09401-12409.

09401-12414

$3.26

7

CLAMP

09402-32512

$12.85

8

TANK,RESERVOIR This part replaces 17910-31G00.

17911-34K00

$31.43

9

.CAP,RESERVOIR TANK

17931-02FA0

$5.56

10

BOLT (6X16)

09116-06168

$2.50

11

HOSE, RSVR TANK INLET

17900-44810

$12.79

12

CLIP

09401-08411

$1.78

13

HOSE (5X9X600) | L:600->360

09352-50901-600

$8.06

14

CLAMP (L:190)

09407-19401

$3.05

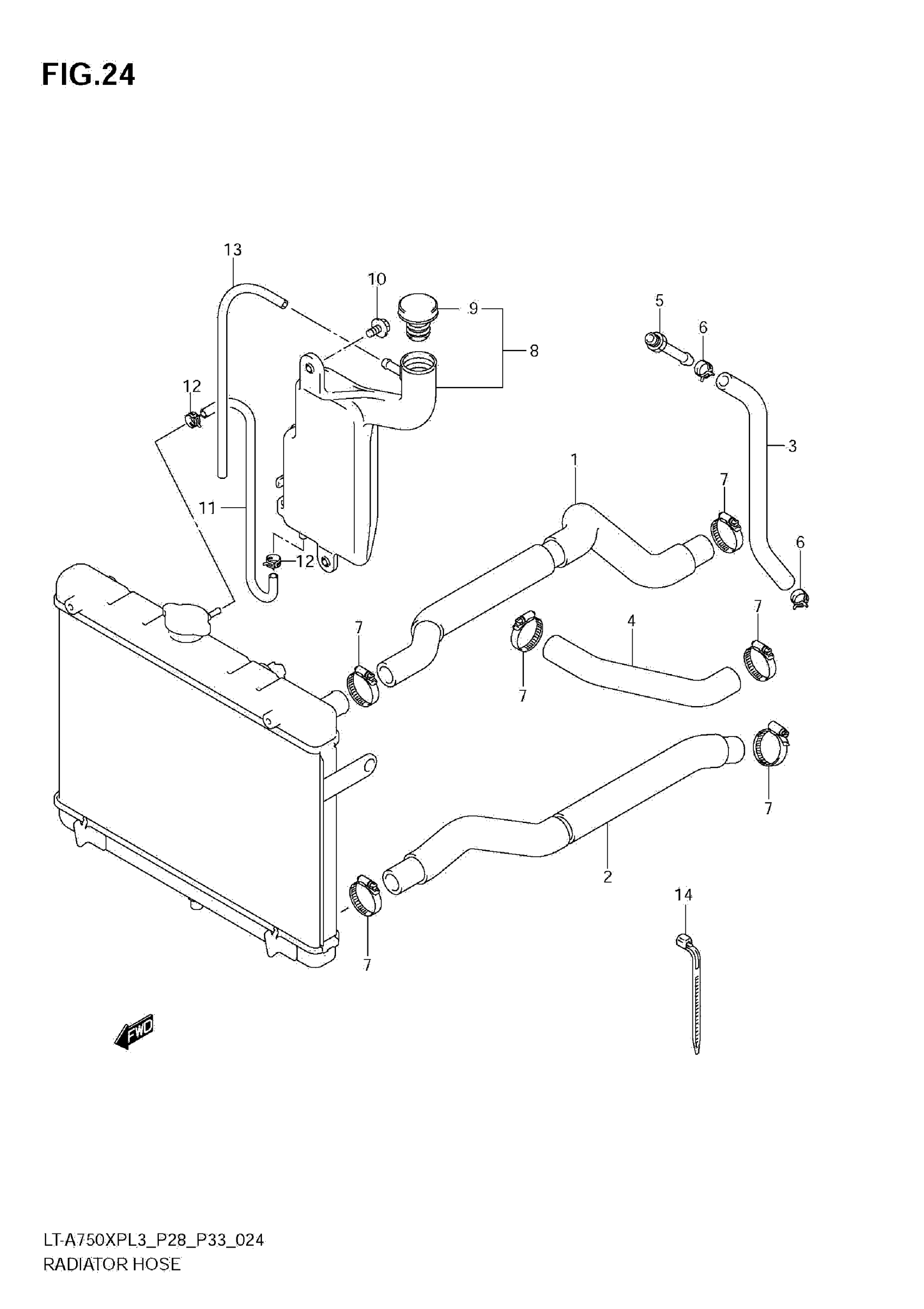

Suzuki LT-A750XPL3 (2013) RADIATOR HOSE Diagram
